ENGINEERING BUYER GUIDE

The search for rubber and plastic molding shouldn’t be defined as if they were the same job done two ways. They aren’t. Rubber and plastic molding is a sourcing program that can combine two distinct process families. One elastomer needs controlled cure and compression set properties; a plastic housing demands melt flow and dimensional stability. The real question is whether one source can control each mold route and the interface between them well enough to lower your program risk.

Rubber and plastic molding: what the phrase really means

Rubber and plastic molding: what the phrase really means — Meitu Engelhardt

Rubber and plastic molding is defined as a procurement program, not one machine condition. In general, rubber molding describes an elastomer that’s shaped and then cured or vulcanized into a stable network. Thermoplastic describes a resin that’s heated until it’s a flowable mass, is injected or transferred into a mold cavity, and then cooled into a solid. Some mixed-material components may also add an insert, an overmold, a bonded joint or a dedicated assembly step. Those boundaries will be reflected in the type of tooling, process window, acceptance documentation that should be requested.

The phrase can also be a cover for four different types of “one source” claims: a single approved source, a single mold shop, a single tooling supplier, or a single finished-assembly owner. One supplier can coordinate two separate outsourcing routes without controlling each route; one plant can own two separate mold presses without having validated adhesion data for your polymer combination. Treat this scope question as one to verify rather than a phrase to believe.

Decision point: write the program boundary in one sentence: “Supplier controls the rubber route, the plastic route, the interface test and the released inspection record.” If any clause is outside the supplier’s ownership, name the handoff before the quote is compared.

The literature describes rubber injection molding as practical but technically sensitive. That combination of simple description and delicate control is why this guide points buyers toward evidence rather than supplier size.

“Injection molding of rubber compounds is an easily conducted yet sophisticated method for rubber processing.”

Section summary: In terms of the process, rubber molding is completed at cure, and thermoplastic at cooling. In terms of the evidence, the scope of a credible shared supplier applies only when each route and the interface have independent, assessable controls.

Choose by part function, not by material label

Choose by part function, not by material label — Meitu Engelhardt

The material choice should be function-driven. Focus first on the component expectations for load, temperature, fluids, cleaning, color or clarity, and ambient conditions. Rubber should be considered when the final component must be elastic, damped or gripped; plastic when it must be stiff, dimensionally consistent or feature-full. Some components need both; this doesn’t necessarily mean sharing the same tool and validation plan.

Material type / part duty Rubber signal Plastic signal Evidence to request

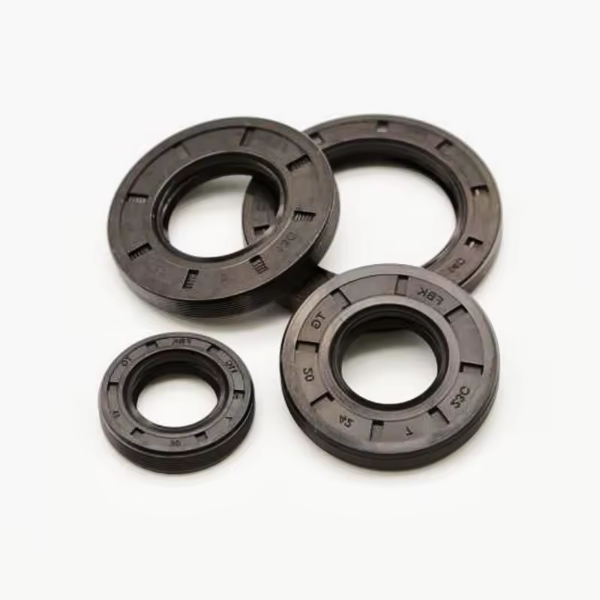

Seal or gasket Compression, recovery, chemical contact Rigid groove or carrier Leak test, compression set plan, groove drawing
Vibration isolation Damping and repeated deflection Load frame or mounting boss Load case, fatigue test, durometer record
Grip or tactile surface Friction, softness, user contact Core geometry and insert stability Peel/shear or functional grip test
Structural housing Seal around a joint or isolator Stiffness, ribs, bosses, cosmetic face Dimensional report, fit test, load case
Heat or fluid exposure Elastomer compatibility and recovery Resin temperature and chemical resistance Exposure condition, material certificate, retest rule
Electrical insulation Flexible boot or seal Connector body and dimensional datum Dielectric or insulation test, traceability
Outdoor service Weathering and ozone resistance UV-stable resin and enclosure UV/ozone method, color and property limits
Food or medical contact Cleanable seal and contact surface Contact-grade carrier or enclosure Destination-market regulation and migration evidence
Appearance Texture, flash and color consistency Gloss, knit lines and sink control Golden sample, visual standard and defect limits

Material compatibility is also a question of pairings. The compounded rubber, the substrate injection resin, the surface treatment, and the curing process can influence the performance. When the component is bonded or overmolded, specify the test method and the expected minimum separation or functional force. “It looks bonded” is a category screening parameter, not a release.

Section summary: The function of the seal, grip or isolator is to exhibit elastic behavior. The function of the carrier is to exhibit rigidity and stable geometry. Mixed-material parts need material data and an interface test tied to the operational conditions.

The molding routes behind the program

The molding routes behind the program — Meitu Engelhardt

Rubber and plastic molding use different thermal histories, so route names must stay explicit in the RFQ. Compression molding places a preform in a heated mold and relies on pressure and cure. Transfer molding pushes a prepared charge through runners into cavities and is useful when cavity filling or inserts need controlled transfer. Rubber injection meters uncured compound into a mold before vulcanization. Silicone or liquid silicone rubber (LSR) adds two-component metering and a controlled mixing sequence. Engelhardt’s rubber molding process page is first-party capability context; verify cure evidence independently against the part specification.

Thermoplastic injection molding follows another chain: pellets are dried or conditioned when required, melted, injected, packed, cooled and ejected. Blow and rotational molding may fit hollow or very large parts, but they should be evaluated as separate route decisions. Thermoplastic elastomers can behave like rubber while remaining processable as a plastic; do not quietly substitute a TPE claim for a thermoset rubber claim. Engelhardt’s plastic injection molding page is first-party capability context; verify resin and process evidence against the controlled brief.

Route Feed and thermal event Buyer fit signal Release evidence
Rubber compression Preform; heat and pressure cure Lower or variable volume, large sections Cure record, flash limit, dimensions

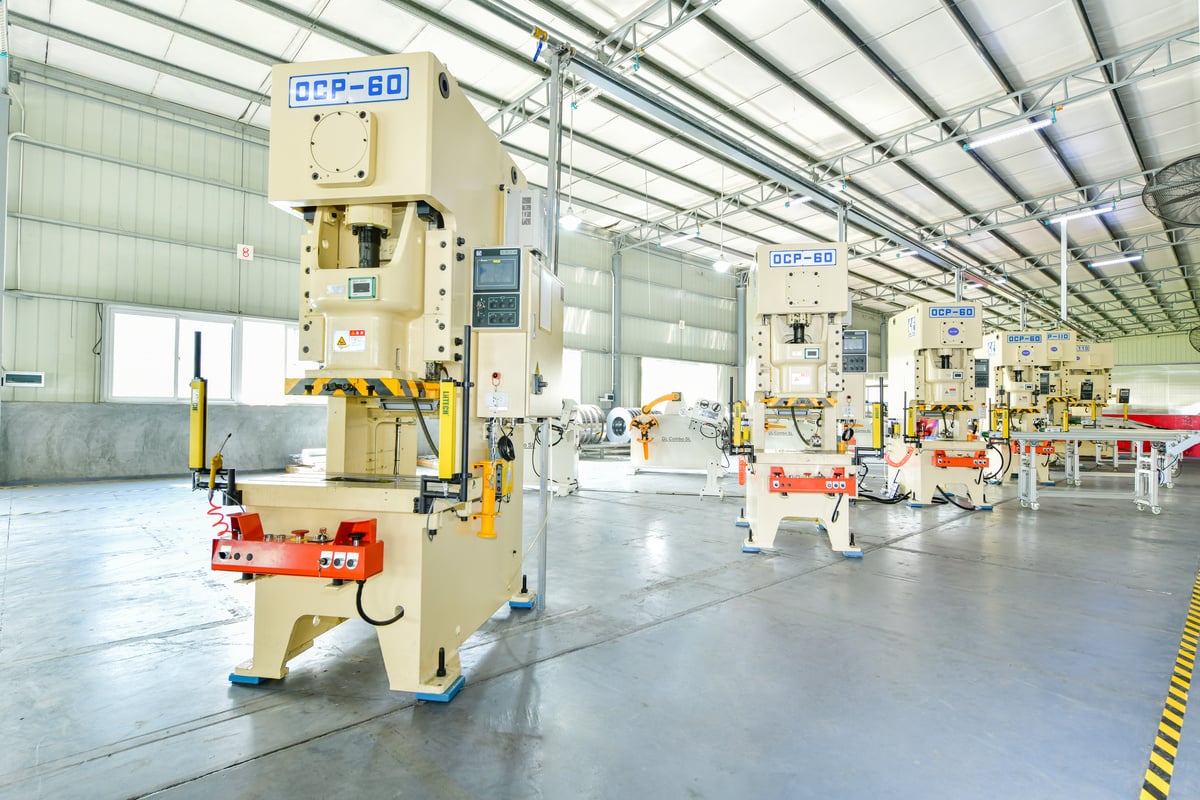

Rubber transfer Charge transferred through sprues; cure in cavity Multiple cavities or inserts Transfer layout, cure evidence, insert bond test
Rubber injection Metered compound; flow then vulcanization Repeatable cavities and automation Material lot, cure window, process study

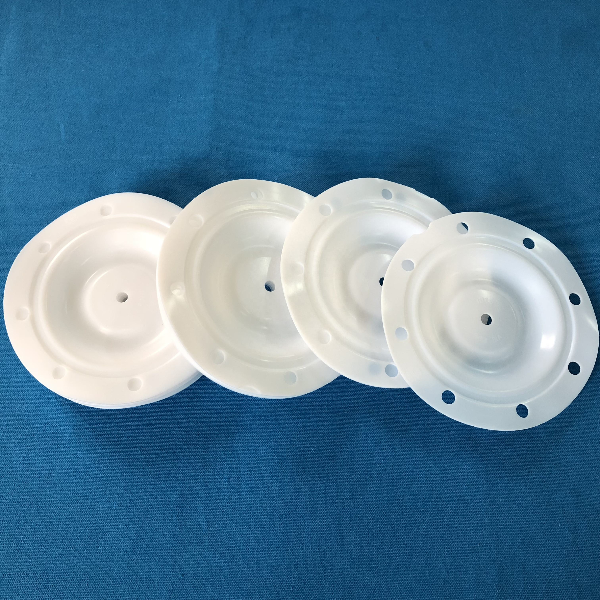

LSR injection Two components metered and mixed; heated cure Clean, repeatable silicone parts A/B ratio, mix record, cure and flash checks

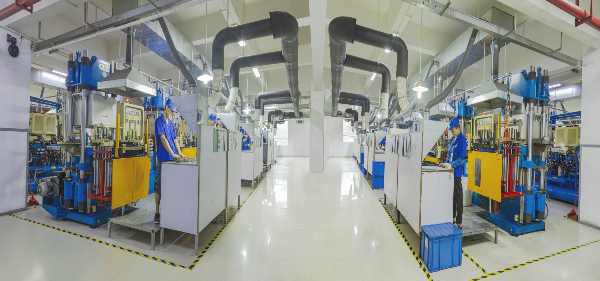

Thermoplastic injection Pellets melt; cavity fills, cools and solidifies Rigid geometry, repeatability, large runs Drying, fill/pack/cool record, dimensions
Overmolding or insert molding Two materials or a preformed insert share an assembly Grip, seal, strain relief or captive insert Interface test, insert location, functional cycle test

The thermoplastic cooling and curing behaviors differ from how both rubber thermoset and RTV cure-based products influence the process timeline. A purchasing manager who inappropriately extrapolates thermoplastic cycle times into an elastomer’s quotation could overlook cure fluctuations. Similarly, if a plastic’s TPE part brief includes the word ‘durometer’, you could overlook resin type and melt history. The material type, raw material form, process used, cured or cooled element, plus testing standard must all appear on the controlled document.

Section capsule: Compression, transfer, injection, LSR and thermoplastic injection are distinct routes that may be combined in a multi-step program. The process name determines what must be measured: cure and flash for rubber, melt/cool history for plastic, and an interface test for a mixed part.

When one roof creates measurable program value

When one roof creates measurable program value — Meitu Engelhardt

One supplier can add value when it removes a handoff that would change the part definition, evidence owner or release decision. That benefit depends on rubber and plastic controls, traceability and interface validation; it is not an automatic result of using one company. Lead-time gains may appear in design, tooling development, sampling, acceptance testing and production assembly when an assembly needs hard molded features and a rubber insert to align, or an integral grip that shouldn’t wear during service life.

Look for five concrete handoffs: drawing revision, material lot, tooling change, inspection result and nonconformance disposition. The supplier should show who owns each one. Shared production can help, but shared ownership is the real test. Ask for a sample redline, a material certificate, a first-article report, an interface test and a change record for the same pilot part.

The One-Roof Handoff Test

  1. Can one controlled drawing identify both the rubber and plastic datums?
  2. Can the supplier trace each material lot to the pilot parts?
  3. Can it show route-specific controls instead of one generic certificate?
  4. Can it test the interface under the actual load, fluid and temperature?
  5. Can one change owner explain what happens if either process changes?

Illustrative scenario (not an Engelhardt case study): a plastic shell can provide strength while an integral rubber seal limits contaminant passage into the assembly. One point of contact can be efficient when a design team and supplier coordinate key attributes, mold-in seal tolerances, plastic warpage control, seal compression settings and leak-test function. Even when a contract covers both routes, plastic production and rubber curing should be monitored as separate controlled operations, not merely billed together.

Section capsule: The value derived from single-point accountability over drawings, materials, molds, tests and inspections becomes tangible only after you confirm that the “five handoffs” test truly applies.

When two specialist suppliers are safer

When two specialist suppliers are safer — Meitu Engelhardt

Two suppliers are often safer when the work rubber and plastic have different regulatory, capacity or validation needs. Medical silicone components may require a controlled material and sterilization dossier, whereas a non-contact plastic cover doesn’t. A low-volume compression tool may not fit in the same commercial model as a high-volume plastic housing. A niche bond or surface treatment may also be better handled by a specialist with direct test history.

The risk of splitting the award is an extra handoff. The risk of forcing integration is a hidden interface failure, a certificate that covers the site but not the part, or a change-control owner who can’t see the other process. Compare those risks explicitly. If a specialist supplies the rubber, define the datum, inspection and interface acceptance before the plastic supplier begins its tool review.

Don’t assume that “certified” means “qualified for this pair.” The International Automotive Task Force’s Rules 6 update became effective on 1 January 2025, but an automotive customer’s specific requirements still determine what the supplier must demonstrate. The same logic applies to destination-market food, medical or restricted-substance obligations: name the requirement, then verify the evidence.

Section capsule: Split sourcing is safer when regulatory systems, volumes or specialist interfaces don’t match. The buyer must transfer datums, evidence ownership and acceptance limits before the first tool is cut.

The Cross-Material Ownership Screen: a step-by-step decision

The Cross-Material Ownership Screen: a step-by-step decision — Meitu Engelhardt

The Cross-Material Ownership Screen converts a general “can you make both?” conversation into a release decision. Complete it before comparing quotes. Yes means the evidence owner is named; a blank answer isn’t a soft “maybe.” It’s a request for clarification or a reason to split the award.

  1. Define the jobs. List load, seal, motion, grip, appearance and assembly duties for each material.
  2. Map the environment. Record temperature range, fluids, UV, ozone, abrasion, cleaning chemistry and contact conditions.
  3. Set the volume boundary. State annual demand, batch size, launch date, forecast confidence and acceptable sampling quantity.
  4. Set geometry and tolerance. Identify datums, critical dimensions, flash, gate vestige, knit lines, draft and cosmetic zones.
  5. Choose the interface route. Decide between insert molding, overmolding, adhesive bonding or post-mold assembly.
  6. Define tests. Name dimensional, leak, pull, peel, shear, fatigue, exposure and functional tests with acceptance limits.
  7. Assign evidence ownership. Identify who controls material certificates, calibration, nonconformance, change approval and retained samples.
Gate question Pass evidence If unanswered
Are both material grades frozen? Grade, hardness/resin family, lot and approved substitute rule Do not compare piece prices yet
Is the interface measurable? Test method, specimen, load and minimum result Treat the bond as unqualified
Are dimensions traceable? Calibrated equipment, datum scheme and report revision Request measurement-system evidence
Is the change owner named? Approval route for material, tool, machine or supplier changes Keep a second-source option open

Section capsule: The fit gate passes only when material, interface, measurement and change ownership are explicit. Blank acceptance limits are supplier-qualification gaps, not harmless paperwork details.

Design and tooling questions before requesting a quote

Design and tooling questions before requesting a quote — Meitu Engelhardt

A dual-material quote is only comparable when the input definition is comparable. Send the same drawing revision, three-dimensional model, material brief, expected annual volume and acceptance plan to each candidate. Ask the supplier to mark assumptions separately from commitments. That simple separation prevents a low quote from winning by silently relaxing a tolerance or moving a process outside the stated scope.

What should the tooling brief contain?

  • Parting line, draft, shutoffs, vents, gates, runners and ejection assumptions.
  • Rubber preform or compound details, cure target and flash-removal expectation.
  • Plastic resin grade, drying requirement, shrinkage assumption and critical cooling surfaces.
  • Insert datum, surface preparation, adhesion method and any post-mold assembly step.
  • Tool ownership, storage, maintenance interval, modification approval and backup plan.
  • Sample quantity, inspection method, report format and deviation disposition.

What must be frozen before steel is cut?

Settle the interface shape, critical datums, material family, cosmetic zones, test method and acceptance limits. Use sampling to fine-tune non-critical process parameters but never to discover if the rubber will stay on and the plastic shell will fit. If you can’t get the supplier to say which variables remain open, the quote isn’t an engineering baseline.

Section capsule: Comparable quotes begin with one drawing revision and one acceptance plan. Set interface geometry and tests before tooling; leave only declared, non-critical process variables open for sampling.

Quality evidence for a dual-capability supplier

Quality evidence for a dual-capability supplier — Meitu Engelhardt

An ISO or IATF management-system certificate covers its stated scope; it does not validate a specific part. Material or conformance certificates are separate evidence. Request a chain of evidence tying identity, process, material, inspection and change control together. Drawing-specific molding tolerances are supported by Plastics Industry Association codes-and-standards guidance; American Society for Quality supplier quality guidance reminds us of capacity, technical support, verification and test sample quantity.

Material-Pair Evidence Grid

Use this named matrix as a worksheet, not as a universal specification. The following are illustrative placeholders for a project brief: 0.5 mm flash allowance, 120 °C service check, 85 °F storage limit, 70 Shore A hardness target, 2.5 mm wall, 25 psi leak pressure or 10000 sec durability test. Replace every number with the approved drawing, customer or regulatory value before release. A worksheet may also record illustrative placeholders such as 5 bar back pressure, 40 MPa clamp pressure, 30 sec cycle time, 2 hr conditioning, 3 days sampling, 6 months storage, 2 years tool life, 10 kg batch mass, 500 kg/h throughput, 220 V supply, 16 A circuit, a scrap-rate placeholder, 15 kWh energy, 1 m travel, 25 μm surface texture and 0.8 μm measurement resolution only when those units match the approved specification.

A signed release record may carry approved values such as a 0.25 mm flash limit, 0.10 mm datum position tolerance, 140 °C mold setpoint, 190 °C melt limit, 60 bar injection pressure, 12 kN pull force, 4 kN clamp force, 15 sec cure segment, 90 sec cooling segment, 24 hr post-cure, 7 days aging and 24 months record retention. Keep these illustrative values only when they are copied from the controlled drawing, customer clause or validated process window.

The Evidence-Stack Check

  1. Identity: controlled part number, drawing revision and material lot.
  2. Process: route, machine, tool cavity and key control variables for rubber and plastic separately.
  3. Material: certificate, approved grade, substitute rule and storage/conditioning record.
  4. Inspection: calibrated equipment, datum scheme, result report and capability context where useful.
  5. Interface: adhesion or functional test tied to the real load and environment.
  6. Change: approval owner, deviation record, nonconformance response and requalification trigger.

How should measurement validity be shown?

Request the instrument identification, calibration status, method revision and measurement uncertainty or repeatability context for critical results. Record dimensions in mm or in, temperature in °C or °F, pressure in psi or bar, and hardness with its Shore scale. That record is the starting point.

If a drawing calls for a 12 mm boss, 180 °C melt limit, 0.3 MPa test pressure, 8 kW heater or 45 days of retained samples, those values must be traceable to the approved revision rather than copied from a generic checklist. Capability indices can be helpful when the sample and distribution assumptions are stated; they aren’t a substitute for knowing how the dimension was measured. The cited NIST injection-molding process-model publication underlines the relationship between geometry, material properties and process parameters. Those relationships should appear in the supplier’s validation logic, not only in a final certificate.

What safety evidence belongs in qualification?

Machine guarding, interlocks, training and lockout/tagout are part of production risk. OSHA’s plastics-machinery guidance treats interlocks and safe servicing as explicit controls. Ask who owns the mold-change procedure, how stored energy is isolated, and how a corrective action is verified.

Record the press load in tons or kN, the electrical load in kW, and the isolation interval in minutes when those values matter to your site risk review. Safe processes protect delivery as well as people; an unplanned injury or maintenance stop can invalidate the capacity assumption in a quote.

Section capsule: A site qualification is one layer. Part release demands a chain of evidence: drawing, process, material, calibrated inspection, interface test and change record, plus safety controls for machine and mold.

Cost, lead time, and volume: compare the whole program

Cost, lead time, and volume: compare the whole program — Meitu Engelhardt

Total program cost adds tooling, sampling, cycle time, scrap, drying or cooling, energy, maintenance, assembly, freight, inventory and requalification. Piece price is one entry in that set. The least expensive quoted piece price doesn’t necessarily yield the lowest total cost if a second supplier then provides inspection, freight, inventory or interface troubleshooting.

Volume makes the answer. A tooling life-cycle study reviewed for this article describes cases where lower-cost tooling paid back at low volumes while conventional injection tooling came out ahead at higher repeat volumes. So don’t lift a payback figure without stating the volume boundary, tool-life assumption and change rate used in your comparison. Enter annual demand, batch size, yield%, cycle sec, freight km or miles, inventory days cover and planned tool life into the same worksheet. Suppliers should strip out one-time engineering costs separately from recurring cost, not conceal both in the piece price.

What should a buyer put in the cost worksheet?

Cost line Question Evidence
Tooling Who owns steel, maintenance and changes? Tool quotation, cavity plan, maintenance rule
Sampling How many iterations and reports are included? Sample plan and deviation log
Cycle and yield What is measured, and how are rejects counted? Run record, scrap definition, inspection results
Interface and assembly Does the quote include bonding, insert loading, testing and packaging? Operation flow and acceptance test
Requalification What changes trigger another approval? Change-control matrix and retained samples

Section capsule: Volume determines the economics for the tool and process, but there’s no single payback that always holds true. Compare tooling, sampling, yield, energy, assembly, logistics and requalification using the same stated assumptions.

Supplier scorecard for rubber and plastic molding

Supplier scorecard for rubber and plastic molding — Meitu Engelhardt

Score the supplier on evidence and response quality, not a capability badge. Apply a simple documented scale defined before reviewing quotes. The rows below are cues; attach the supplier’s file, owner and expiry date to each answer. If a response is missing, create a follow-up action rather than treating it as a presumed pass.

Scorecard row Ask for Red flag
Rubber process fit Route, compound, cure and flash-control evidence Only a generic machine list
Plastic process fit Resin, drying, fill/cool controls and dimensional history Nameplate tonnage without part evidence
Tooling ownership Cavity plan, maintenance and change rights Ownership is verbal
Material control Certificates, lot traceability and storage conditions Substitutions are not recorded
Interface validation Pair-specific adhesion or functional test Visual inspection is the only proof
Measurement validity Calibration, method, uncertainty and capability context Report has no datum or instrument
Quality system Certificate scope and customer-specific clauses Certificate treated as part approval
Capacity proof Representative run, stops, rejects and staffing Maximum capacity only
Safety controls Guarding, interlocks, training and lockout/tagout records Maintenance safety is not documented
Logistics and change Packaging, freight, escalation and requalification rules No owner after launch

Scenario: one supplier for housing, seal and packed assembly. Only award this program if the supplier can prove separate rubber and plastic controls, a shared datum scheme, a validated interface and a release record for the finished assembly. Keep this scorecard separate from a supplier’s marketing claims; carry the questions above in your RFQ so a homepage link doesn’t compensate for qualification.

Section capsule: A supplier scorecard is justifiable only if every row points to a file, owner and expiry date. Process-specific evidence beats a capability badge, while delivery and safety records can outweigh the lowest-cost quote.

Frequently asked questions

What are the three types of molding?

Answer

In rubber work, buyers commonly compare compression, transfer and injection molding. Compression uses a preform in a heated mold; transfer pushes a charge through runners into cavities; injection meters compound before cure. Plastic programs add thermoplastic injection, blow and rotational routes, so “three types” depends on the material family and the part. State the route explicitly in the RFQ, then ask for route-specific process records and acceptance tests.

Which molding material is best?

Answer

No single material is best without a duty cycle. Define load, sealing, movement, temperature, fluids, UV, cleaning, electrical needs and contact rules first. Select a rubber or elastomer when recovery, damping or grip is central; select a plastic when stiffness, stable geometry or a rigid enclosure is central. Mixed parts may need both, but the interface must be tested under the real environment rather than approved from appearance alone.

Can rubber and plastic parts be made by the same supplier?

Answer

Yes, but the supplier’s capability statement is only a starting point. Ask whether rubber and plastic are controlled by separate process flows, whether material lots are traceable, whether tooling and inspection are owned, and whether the interface has a pair-specific test. One plant can still outsource a critical operation. One legal supplier can still leave you with two incompatible release systems. Use the Cross-Material Ownership Screen before treating one roof as an advantage.

Is rubber molding the same as plastic injection molding?

Answer

No. Thermoplastic injection melts resin, fills the cavity and cools it into shape. Rubber molding generally cures or vulcanizes an elastomer, and LSR uses controlled two-component metering and mixing before heated cure. Thermoplastic elastomers can blur the language because they combine rubber-like behavior with plastic processing. Put the material family, feed form, route, cure or cooling event and test method on the controlled part brief.

What information should an RFQ include?

Answer

Include the drawing revision, three-dimensional model, material grade or hardness, annual volume, batch size, launch timing, critical datums, cosmetic zones, environment, insert or overmold route, inspection method, interface test and acceptance limit. Add tool ownership, maintenance, sample quantity, deviation rules and change-control expectations. If the destination market has food, medical, automotive or restricted-substance requirements, name the applicable customer or regulatory clause instead of asking for a generic “compliance” statement. As an editorial quote-comparison checklist, also state the commercial assumptions: Incoterm, packaging standard, delivery location, forecast window, currency, quote validity and treatment of engineering changes. These fields organize supplier responses; they do not replace the governing sales contract or the applicable Incoterms rule. Attach photographs or a section view when the rubber-to-plastic interface is difficult to read from the drawing. Ask the supplier to return an assumptions log with every unanswered field marked, so a low price can’t hide an omitted operation or test.

Can a supplier make the parts and complete assembly and packaging?

Answer

Some suppliers can coordinate molding, assembly and packaging, but the buyer still needs a finished-assembly release plan. Confirm who controls the mating datums, insert loading, cleaning, functional test, labeling, packaging inspection and nonconformance response. Request a representative pilot record that connects both molded parts to the assembled unit. Treat assembly and packaging as additional operations with their own evidence, not as automatic benefits of a molding supplier.

RFQ-ready conclusion

RFQ-ready conclusion — Meitu Engelhardt

Choose one roof only when the supplier can prove two controlled processes and one validated interface. Two specialists are the best choice if regulatory requirements, volume or process evidence do not align. Either way, make material fit, measurement accuracy, safety controls and total program economics visible before tooling begins.

Use Engelhardt for company discovery and carry the questions in this guide into your evidence review.

References & Sources

]]>
https://meitu-engelhardt.com/rubber-and-plastic-molding/feed/ 0
Rubber to Steel Bonding: Certification and Traceability Requirements https://meitu-engelhardt.com/rubber-to-steel-bonding-certification-blog/ https://meitu-engelhardt.com/rubber-to-steel-bonding-certification-blog/#respond Thu, 03 Sep 2026 05:57:35 +0000 https://meitu-engelhardt.com/?p=3167

Short answer: rubber to steel bonding certification isn’t one universal badge. Rubber to steel bonding certification is an independent, scope-limited conformity statement; it does not by itself approve every part or lot. A defensible approval package connects the named standard, the certification body, the bonded-part design, the test method, the production lot and the release decision. Start with the Certificate-to-Part Chain: verify certificate scope and validity, define a joint-specific validation plan, then require traceability records that let an auditor move from a finished part back to its steel heat, rubber batch, adhesive batch, cure recipe and inspection result. This guide is educational and keeps certification evidence separate from the commercial configuration and quotation details on Engelhardt’s rubber-to-metal bonding solution page.

What Does “Certified” Mean in Rubber-to-Steel Bonding?

What Does “Certified” Mean in Rubber-to-Steel Bonding? — Engelhardt

Buyers use “certified” to describe several different things. A management-system certificate shows that an organization operates a quality system against a defined standard. Process qualification shows that a particular bonding route can meet agreed requirements. Each test report records a result for a defined specimen and method. Customer or product approval may add its own drawing, audit and change-control conditions. These documents can support one another, but they are not interchangeable.

This Evidence Scope Split prevents the most common purchasing error: accepting a certificate whose scope never reaches the part being ordered. ISO explains that certification is written assurance from an independent body that a product, service or system meets specific requirements, while accreditation recognizes the competence of the certification body. Check both the issuer and the scope instead of treating a logo as proof.

Evidence layer What it can show What it cannot show by itself
Quality-management certificate Controlled procedures, responsibilities, records and continual-improvement processes. That every bonded part, lot or geometry meets your drawing.
Test-method report Results for named rubber, steel, adhesive, specimen, conditioning and method revision. Universal performance across other geometries, lots or service environments.
Part or customer qualification Acceptance against a drawing, specification, application and agreed change rules. That an unrelated certificate or old report remains valid after a material or process change.
Scope check: ask for certificate number, issuing body, accreditation status where relevant, covered site, standard edition, expiry or surveillance status, and the exact process or product scope. If any of these are missing, record the document as incomplete evidence rather than a pass.

Which Standards Should a Bonding Program Reference?

Which Standards Should a Bonding Program Reference? — Engelhardt

Standards should be selected from the customer’s market, joint design and risk profile. They provide a common language, not a shortcut around validation. The linked ASTM D429 edition page describes static adhesional strength testing of rubber to rigid materials, mostly metals; confirm the current edition before specifying it. ISO 9001 defines quality-management-system requirements. IATF 16949:2016 is the automotive quality-management route aligned with ISO 9001, while the IAQG 9100 family adds requirements for aviation, space and defense supply chains.

Those references answer different questions. ASTM D429 helps define how adhesion may be measured. ISO 9001 asks whether the quality system controls documented information, resources, training and improvement. Automotive or aerospace schemes add sector expectations and customer-specific controls. None of them automatically sets your pass threshold, approves every steel grade, or proves field life for every bonded geometry. Freeze the customer specification and the acceptance rule before testing.

Standards and certification schemes evolve. Confirm the live edition, surveillance status and certification-body guidance at the time of audit; never rewrite a supplier’s scope from an older report.

What Does ASTM D429 Actually Prove?

What Does ASTM D429 Actually Prove? — Engelhardt

ASTM D429 is a family of methods for static adhesional strength. Its scope is deliberately narrower than a blanket “bonding certification”: the specimen, joint geometry, rubber, rigid substrate, conditioning and loading arrangement all matter. It supports comparative evidence for a defined joint, not universal production approval.

In summary: ASTM’s significance section indicates that, with suitable specimen designs, several methods can provide comparative values for production parts.

That wording supports a controlled comparison; it does not create a universal minimum strength.

A useful report should make the test reproducible. Request the specimen drawing or dimensions, rubber compound and cure state, steel grade and surface condition, adhesive family and batch, preparation steps, cure or molding conditions, conditioning exposure, test machine identification, calibration status, result distribution, failure mode and the pre-agreed acceptance rule. If the report says only “passed ASTM D429,” the evidence chain stops before the part.

For a practical example, bonding rubber to metal joins rubber and metal and may involve natural rubber, an elastomer mount or an engine mounts program with very different loads. Record the metal surface condition, whether cleaning uses a solvent or a spray, and whether a roller or fixture applies pressure. Those details affect durability and must stay tied to the lot; they aren’t interchangeable process labels.

Read the failure mode, not only the headline value

Record whether failure is cohesive in the rubber, adhesive-interface failure, substrate-related or mixed. The distinction guides corrective action. An impressive average can hide a weak interface if the sample count is small or the failure mode isn’t coded. Conversely, a lower comparative value may be acceptable for one flexible joint when the drawing and service loads support it. The correct decision comes from the joint’s function and risk, not a number copied from another geometry.

What the result cannot prove: one ASTM D429 report does not certify all future lots, all rubber compounds, all steel finishes, all cure windows or the service life of an installed assembly. Link the report to the exact configuration and change-control rules.

What Traceability Records Should Follow Each Bonded Part?

What Traceability Records Should Follow Each Bonded Part? — Engelhardt

Use the Traceability Breakpoint Test: choose a finished part at random and ask whether a reviewer can walk backward through every risk-bearing hand-off without relying on memory. The traceable chain looks like this. The record must preserve identity, revision, material and process links for audit:

  1. Drawing and revision: part number, customer revision, approved materials and special characteristics.
  2. Steel identity: heat or coil number, certificate of material, surface treatment and incoming inspection.
  3. Rubber identity: compound name, batch or lot, shelf-life status, mixing record and storage conditions.
  4. Adhesive identity: product, batch, expiry, storage temperature, mix or activation record and operator.
  5. Surface preparation: cleaning method, roughness or treatment requirement, time between preparation and bonding, and contamination checks.
  6. Molding or vulcanization: mold ID, cavity, temperature, pressure, time or cure curve, machine and recipe revision.
  7. Inspection and testing: dimensions, visual criteria, witness specimens, destructive results, environmental conditioning and failure mode.
  8. Release decision: accepted quantity, nonconformance number, rework disposition, reviewer and date.

Retention periods, electronic signatures and change-notification rules should follow the customer contract and the applicable quality system. A spreadsheet can be useful, but it must preserve revision history and access control. If a supplier can’t connect a test coupon to a production lot, mark the evidence as background only and request containment before approval.

Engelhardt’s first-party pages describe in-house mold design, assembly and packaging, and its bonding page reports vulcanization, insert molding and compression molding. The same page reports 3,000+ tons annual capacity, 80+ vulcanizing machines, a 3,600 m² mold shop and six rubber compound families. These are supplier-reported capability facts for RFQ context, not independent certification proof; ask for the current certificate and lot records for your program.

How to Build a Bonding Validation and Test Plan

How to Build a Bonding Validation and Test Plan — Engelhardt

Write the validation plan before parts are made. Begin with the load cases, temperature, fluids, vibration, peel or shear risks and expected service life. Then define the production route: substrate preparation, adhesive application, insert or compression molding, cure window, cooling and inspection. The plan should identify which variables are fixed, which are allowed to vary and which changes trigger requalification. Put measurable limits beside each control: a 1–3 mm bond land, 23 °C conditioning, 80 °C heat exposure, 0.5 MPa pressure, 24 h dwell, 100-cycle vibration sequence and 95% record completeness are examples of fields to agree with the customer, not universal defaults.

Choose specimens that represent the joint. A conventional lap-shear coupon may be convenient, but a flexible adhesive or sealant can behave differently from the test geometry. Use ASTM D429 where its specimen and method fit the design, and explain any modification. Predefine sample count, conditioning, test sequence, statistical treatment and acceptance criteria. Do not set the threshold after seeing the result.

Keep the units visible in the record. Your customer drawing might call out a 2 mm bond land, a 23 °C laboratory condition, 25 PSI fixture pressure, 4 kW heater load, an 8 hr conditioning window, 100% visual coverage, a 0.5 mm edge break, 10 N peel, 50 Hz vibration and a 72 hr fluid soak. These figures are examples of traceable fields, not universal requirements; agree the real values with the design owner and write them into the approved plan before testing.

When the plan is transferred to a traveler, keep alternate ranges explicit: 0.1 mm and 1.0 mm feature limits, 5 °C and 40 °C conditioning points, 70 °C and 90 °C heat points, 1 PSI and 10 PSI fixture checks, 2 kW and 6 kW utility readings, 1 hr, 4 hr, 24 h and 48 h holds, 98% and 99.5% inspection completion, plus 5 N and 20 N verification loads. These are record-format examples only; the approved engineering specification remains the authority.

Plan element Buyer question Evidence to retain
Materials Are rubber, steel and adhesive identities frozen? Approved bill of materials, certificates, lot numbers and expiry checks.
Process window Which temperature, pressure, time and surface conditions are acceptable? Recipe revision, cure curves, machine and mold IDs, operator record.
Test design Does the specimen represent the service joint? Drawing, method revision, conditioning plan, calibration and raw data.
Decision rule What is pass, fail, retest and containment? Signed report, failure-mode code, nonconformance and corrective action.

Terminology crosswalk for a certification file

Use the following terms as controlled labels in an evidence packet. They clarify which material, process or performance claim a supplier is making, without turning a generic capability statement into a certificate.

Evidence field Controlled terminology to map How to use it
Bonding family rubber to metal bonding; bonding rubber to metal; rubber-to-metal bonding; rubber-to-metal; bonding rubber to steel; rubber-to-metal bonded part; rubber to metal bonded parts; rubber bonded to metal State the family and the exact part or joint covered by the approval.
Joint identity bonded to metal; bonded rubber; metal component; metal substrate; metal part; rubber compound; different materials; components that combine Link the drawing, material certificates and lot record to the physical assembly.
Adhesive system adhesive system; right adhesive; best adhesive; adhesive bond; metal adhesive; adhesive technologies; adhesive solutions; bonding systems Name the selected system, supplier batch, storage condition and approved substitution rule.
Manufacturing route bonding process; manufacturing process; manufacturing process that permanently joins; molding process; transfer molding; insert; adhesive application; cleaning process Record the route, equipment, recipe revision and operator or machine identifier.
Selection controls adhesive selection; use an adhesive; adhesive and sealant; solvent-based adhesives; one-coat; formulation; simplify the bonding process Explain why the selected chemistry fits the service environment and validation plan.
Material chemistry elastomers to metal; elastomers to metal substrates; natural rubber; bond natural rubber; silicone rubber; chloroprene; uncured rubber; physical and chemical properties; chemical bond Keep compound, cure state and substrate condition tied to the specimen and production lot.
Performance outcome bond performance; bond integrity; quality of the bond; poor bond; bond failure; lead to bond failure; performance when bonding; achieving a reliable bond Code the failure mode, acceptance rule, test result and corrective-action evidence.
Surface controls surface preparation; properly prepared; increase the surface area; mechanical bond; surface area; corrosion Specify preparation method, timing, roughness or treatment and contamination checks.
Application context rubber to metal bonding applications; vibration control; metal component; rubber bonding; advanced rubber-to-metal Connect the application and loads to the drawing, environment and qualification sample.
Capability language manufacturing capabilities; rubber-to-metal bonding companies; specialize in rubber to metal; bonding solutions; designed to bond; adhesive solutions Use capability terms for supplier screening, then request part-specific evidence before approval.
Risk-screen prompts super glue; silicone rubber; proper surface preparation; poor bond; corrosion; transfer molding Record exclusions and alternatives so informal product language cannot replace a controlled method.
Evidence boundary different physical and chemical properties; quality of the bond; bond integrity; manufacturing process Keep generic explanations separate from signed validation and release records.

Use the supplier’s existing bonding process and failure-mode guide and how-to-bond article as educational context, then convert the relevant controls into your own drawing and validation plan. Those links explain process choices; they do not replace your controlled acceptance criteria.

How to Audit Supplier Evidence Before Approval

How to Audit Supplier Evidence Before Approval — Engelhardt

Run the audit in the order a failure would travel. First confirm identity and scope. Next test whether the certificate, method report and lot packet refer to the same site, process and revision. Finally check how exceptions are contained. The following questions expose gaps quickly:

Category / checkpoint Evidence request Red flag
Certificate scope and status Certificate, scope statement, expiry, surveillance and site address. Logo or certificate number with no covered process.
Issuer competence Certification-body identity and accreditation information where required. “ISO certified” with no independent issuer.
Method control Test standard edition, laboratory, calibration and specimen drawing. Method named but no revision, conditions or raw data.
Lot linkage Steel, rubber and adhesive batches tied to the report and release packet. Generic report reused across unrelated lots.
Nonconformance Containment, root cause, corrective action and effectiveness check. Rework described verbally with no disposition record.
Change control Notification triggers for material, adhesive, mold, machine or site changes. Supplier can substitute material without written review.
Laboratory competence Internal or external lab responsibility, equipment ID and operator qualification. Results are supplied without a named laboratory or method owner.
Record retention Retention period, backup, access rights and retrieval test for a sampled lot. Records exist only in an individual mailbox or local worksheet.
Visual and dimensional release Inspection standard, lighting or gauge conditions, sampling plan and sign-off. “Visual check passed” with no criteria or inspector identity.
Red-flag rule: a document with no scope, revision or lot link is not worthless, but it is not approval evidence. Classify it as an open item, assign an owner and set a due date before release.

Common Documentation Gaps and Corrective Actions

Common Documentation Gaps and Corrective Actions — Engelhardt

A bonding escape can involve a traceability break as well as a chemistry or process problem. Secondary industry guidance commonly points to incompatible adhesive selection, poor surface preparation and contamination as failure contributors. Use those prompts to design controls, then prove the controls with records.

Gap Immediate containment Corrective-action evidence
Specimen is not linked to a lot Hold affected lots and identify all possible material windows. New traveler fields, barcode or lot-link check and effectiveness sample.
Adhesive batch or expiry is missing Quarantine parts made since the last verified batch record. Point-of-use scan, storage log and supervisor review.
Surface preparation is undocumented Stop release and repeat inspection on retained samples. Preparation checklist, time limit, contamination check and audit trail.
Cure record uses mixed revisions Separate product by recipe and machine history. Controlled recipe, locked parameters, alarm history and requalification rule.
Generic certificate is used as product proof Reclassify the certificate as QMS background evidence. Part-specific validation report and signed customer acceptance.

Close a gap only when the corrective action changes the system and its effectiveness is demonstrated. Backfilled signatures or freshly printed certificates may improve a file’s appearance while leaving the process unchanged. Auditors should ask what prevented recurrence, not only whether a form now exists.

RFQ Checklist for Certified Rubber-to-Steel Bonding

RFQ Checklist for Certified Rubber-to-Steel Bonding — Engelhardt

Copy this checklist into your request for quotation. It keeps the education and evidence questions in this article separate from the solution page’s commercial configuration and quote:

  • Part number, drawing revision, annual volume, launch date and service environment.
  • Steel grade, finish, heat treatment and incoming material certificate requirement.
  • Rubber compound family, hardness range, batch controls and restricted substances.
  • Adhesive family, storage, shelf life, activation and approved-substitution rules.
  • Bonding route: vulcanization, insert molding, compression molding or a justified alternative.
  • ASTM D429 method or another agreed method, specimen design and laboratory responsibility.
  • Acceptance criteria, failure-mode coding, conditioning, sample count and retest policy.
  • Traceability fields from steel heat through final release, including rework and nonconformance.
  • Current management-system certificate, exact scope, issuer, expiry and change-notification process.
  • FAT, first-article or customer-approval deliverables, retention period and audit access.

For process-fit, tooling and quotation questions, continue to Engelhardt’s rubber-to-metal bonding page. For terminology, see what rubber-to-metal bonding is. For company context, Engelhardt’s About Us page reports a 2009 founding, 15+ years of experience and a 300+ person team. Those first-party statements help you understand the supplier; they don’t remove the need to verify current certificate scope and lot-level evidence.

FAQ

Does ISO 9001 certify a rubber-to-steel bonded part?

No. Certification to ISO 9001 applies to a quality-management system against defined requirements; it does not automatically certify every product, material combination or bond-strength result. Use it to examine document control, training, records, nonconformance and improvement, then request part-specific validation and lot traceability.

The certificate becomes useful when its site and scope match the process you are buying and the linked records are available for audit. Also confirm the certificate’s covered address, surveillance status and issue date. One company can hold a valid system certificate while a newly added line, adhesive or subcontracted operation still needs customer approval. Ask how changes are reviewed, how obsolete drawings are blocked at the workstation and how a sampled finished part is retrieved from the archive. Those answers show whether the system supports your bonded assembly in practice rather than merely displaying a current document.

What does ASTM D429 mean for rubber to steel bonding certification?

ASTM D429 provides static adhesional-strength test methods for rubber bonded to rigid substrates, mostly metals. It offers a controlled way to compare specimens when the selected method and geometry fit the product, but it does not set a universal pass threshold.

The method does not certify every lot. Ask for specimen details, rubber, steel, adhesive, conditioning, failure mode, calibration and the acceptance rule, then confirm that the report is linked to your drawing and production configuration.

Which traceability records should a supplier provide?

At minimum, request the drawing revision, steel heat or coil identity, rubber compound and batch, adhesive batch and expiry, surface-preparation record, mold and cure parameters, machine and recipe revisions, inspection and test results, failure-mode codes, nonconformance disposition and final release approval. Keep those fields on the same lot traveler.

The records should connect one finished part or lot to its evidence without manual reconstruction. Retention periods and electronic-signature rules should follow your contract and quality system.

Is an automotive or aerospace certificate enough for approval?

An automotive or aerospace certificate can be an important system-level input, but it is not enough by itself. IATF 16949 addresses automotive quality management, while IAQG 9100 addresses aviation, space and defense quality-management requirements. Your customer may still require a particular material, test, drawing revision, special-process approval or first-article package. Verify certificate scope, issuing body, site, validity and customer-specific clauses, then connect those requirements to the part validation and release records. Confirm surveillance status before release.

What should I ask a supplier during an RFQ?

Ask which bonding route and adhesive family they propose, which standards and method revisions they will use, how the specimen represents your joint, and which variables are controlled from cleaning through cure. Request current certificates with scope, a sample validation report, calibration status, lot-traceability fields, nonconformance workflow, change-notification triggers and the FAT or first-article deliverables. Ask the supplier to label rated, demonstrated and customer-dependent values separately so the quotation does not overstate evidence.

References & Sources

The links below support standards scope and certification terminology. They aren’t substitutes for a customer drawing, a supplier audit or a part-specific acceptance plan.

Next step: send the RFQ checklist with your drawing and service conditions, then ask Engelhardt to map the proposed process and evidence pack to each requirement. Review the bonding capability page or use the site’s quote form for a process-fit discussion.
]]>
https://meitu-engelhardt.com/rubber-to-steel-bonding-certification-blog/feed/ 0
Rubber Compound Selection Guide: EPDM vs Silicone vs Nitrile vs FKM https://meitu-engelhardt.com/rubber-compound-selection-guide-blog/ https://meitu-engelhardt.com/rubber-compound-selection-guide-blog/#respond Thu, 03 Sep 2026 05:14:22 +0000 https://meitu-engelhardt.com/?p=3151





Rubber Compound Selection Guide: EPDM vs Silicone vs Nitrile vs FKM



Engineering selection guide · Engelhardt

Selecting a rubber compound is not a vote for the “strongest” polymer. A rubber compound selection guide is a structured way to compare formulation, service envelope, and release evidence. It gives engineering and sourcing teams a repeatable way to compare EPDM, silicone, nitrile (NBR), and FKM without treating a general chart as a guarantee.

Scope boundary: this article covers education, screening, validation and RFQ readiness. It does not certify a part or replace the buyer’s drawing, risk assessment, controlled standard or application test. Engelhardt’s commercial site owns service configuration, capacity, quotation and conversion decisions.

What Is a Rubber Compound?

What Is a Rubber Compound? — Engelhardt

A rubber compound begins with a base elastomer and adds fillers, curatives, plasticizers, stabilizers, and colorants. That recipe controls hardness, modulus, compression recovery, chemical behavior, and processing response. Two grades carrying the same family name can behave differently because formulation, cure system, post-cure, and test method all matter. This material selection process turns a broad rubber material question into a controlled set of engineering requirements. For the hardness-test terminology used later, see the ASTM D2240 scope.

Vulcanization creates a cross-linked network. Thermoset rubber does not simply melt and reset when reheated, while a thermoplastic elastomer follows a reversible soften-and-harden cycle. That difference affects mold design, scrap handling, cycle time, and the evidence a supplier should return with an RFQ.

Define the service envelope before asking for a grade. Record minimum and maximum temperature, dwell and cycling; every liquid, vapor, cleaner, and solvent; pressure, motion, and compression; geometry and tolerances; and any regulatory or customer standard. Missing variables raise premature-failure risk because a family label cannot explain grade-level behavior. The production supplier should identify the compound code, lot, test method, and acceptance evidence.

Selection rule: a polymer family narrows the search; grade-specific test evidence closes the decision.

The Four-Question Selection Gate

The Four-Question Selection Gate — Engelhardt
1 · TemperatureRecord continuous, peak, dwell, ramp rate, cold-start and thermal cycles.
2 · MediaName oils, fuels, water, steam, solvents, acids, bases, additives and cleaners.
3 · Mechanical dutyState static/dynamic sealing, pressure, strain, abrasion, tear and compression.
4 · Process and releaseCapture mold, cure, post-cure, tolerance, traceability and acceptance evidence. Compression-set method scope is summarized in ASTM D395.

Use the gate as a stop rule. If one answer is missing, keep the candidate in screening status. Grades with a comfortable temperature range can still swell in the actual oil additive package; a chemically compatible grade can still fail because compression set, tear resistance, or the molding window is wrong for the part. For an RFQ, require a controlled datasheet, the relevant ASTM or ISO method, and test results tied to the production lot. Ask the molding plant or in-house laboratory to sign the cure and inspection record.

EPDM vs Silicone vs Nitrile vs FKM

EPDM vs Silicone vs Nitrile vs FKM — Engelhardt

This matrix is a shortlist tool, not a qualification record. Its directions describe common screening strengths, not universal grade limits. Confirm the exact formulation, compound designation, test temperature, exposure time, and acceptance value before release. In a production application, an unverified assumption can become a leak or a costly tooling rework, so retain the supplier’s grade and lot evidence with the drawing. The production team should link that evidence to its molding and inspection traveler. Use the ASTM D2240 hardness scope as a test-method reference, not a grade approval.

Family Often shortlisted for Common cautions Evidence to request next
EPDM Outdoor weathering, ozone, water and many hot-water or steam duties. Do not assume compatibility with petroleum oils or fuels. Grade, peroxide/sulfur cure and temperature change the result. Immersion or part exposure in the actual water/steam chemistry; ozone or UV aging if outdoors.
Silicone Wide temperature swings, clean environments, flexibility and selected electrical or food-contact applications. Many grades trade abrasion, tear or cut resistance for temperature performance. “Silicone” does not itself confer an approval. Compression-set and tear data at the real temperature; cleanliness or compliance certificate for the named grade.
Nitrile (NBR) Petroleum oils, fuels and cost-controlled static or dynamic sealing where the service window fits. Ozone, weathering, high heat and some aggressive additives can be limiting. Acrylonitrile content changes the balance. Fluid immersion with the actual fuel/oil blend, volume change, hardness drift and low-temperature flexibility.
FKM High-temperature oil, fuel and solvent exposure where a fluorinated elastomer is justified. Low-temperature flexibility, hot-water/steam behavior and grade-specific cure systems still need checking. A trade name is not a specification. Cold-start, thermal-cycle and media testing on the exact grade; confirm cure, post-cure and certificate scope.

Ask a sharper question: “Which failure mode is least acceptable, and what test can show that the risk is controlled?” Keep one alternative until representative-part testing closes the largest uncertainty. For a seal or molded component, combine at least two service variables—such as 120 °C and 0.6 MPa—rather than testing temperature and pressure in isolation. A production-lot review with the molding supplier is the final check before the drawing is released.

5-Point Material Selection Matrix Beyond the Core Four

5-Point Material Selection Matrix Beyond the Core Four — Engelhardt

Some programs need more than four material options before the shortlist is closed. Use this matrix to screen plausible families, then identify the exact compound in the RFQ and verify it for the end-use application. These entries are broad directions, not endorsements or promises of superior mechanical performance. An O-ring material selection guide can organize the first pass, but only part geometry and controlled test evidence can qualify the grade. Peer-reviewed compounding literature, such as this review article, is useful for trend context but does not replace a part test.

Type Useful screening signal Check before choosing
Natural rubber Highly flexible parts and strong resilience where oils are not dominant. Biological exposure, ozone, temperature resistance, tear strength and supply consistency.
Neoprene Balanced weathering, flame behavior and moderate oil service for general sealing applications. Actual chemicals, low-temperature flexibility, hardness range and certificate scope.
Butyl Low gas permeability and damping for selected air, gas and vibration duties. Oil and fuel contact, compression set, operating temperature and cure system.
Polyurethane High abrasion and cut resistance for wear-focused molded rubber components. Hydrolysis, heat, compression set, hardness range and mold release behavior.
Thermoplastic elastomer Reprocessable parts, overmolding and short cycle opportunities. Permanent set, weld lines, temperature range, recycling limits and tooling design.
EPDM variant Ethylene-propylene formulations for water, steam and outdoor exposure. Oil carryover, cure package, ozone level and the named grade’s test data.
High-ACN nitrile Higher acrylonitrile content can shift oil resistance and low-temperature trade-offs. Specific application temperature, flexibility, swell limits and batch formulation.
Fluorosilicone Silicone-like flexibility with a targeted fuel or solvent exposure screen. Permeation, tear, compression set, post-cure and required certificate scope.
Isoprene blend A monomer-derived option considered for elastic feel or specialty processing. Oxidation, ozone, aging, traceability and whether it can be molded at scale.

For a specific application, record operating temperature as a range—for example, −40 to 150 °C—plus pressure in MPa, critical dimensions in mm, allowable volume change in %, and the number of thermal or media cycles. These values make supplier responses comparable and expose the risk of choosing a grade on marketing language alone. Ask the production team which properties are measured in-house and which require an accredited laboratory.

Temperature, Weathering and Low-Temperature Limits

Temperature, Weathering and Low-Temperature Limits — Engelhardt

Separate continuous service from a short peak. Record time at temperature, heat-up and cool-down rates, pressure while hot, and whether the seal must recover after load removal. Outdoor parts add ozone, ultraviolet exposure, humidity, and dirt; cold-start parts add stiffness and installation risk.

Datasheet maximums are not life predictions. Seals can remain intact while losing sealing force through compression set, or crack during a thermal cycle that never reaches the headline maximum. For example, a 150 °C peak lasting 10 min is a different application from 100 °C for 1,000 h. Combined temperature, media, and deformation history can drive the failure, so ask the supplier for the method, specimen geometry, conditioning time, and acceptance criteria. Confirm which aging and production-lot checks are performed in-house. The ASTM D395 scope explains why compression-set method and service conditions belong in that record.

Chemical Compatibility Is a Pass/Fail Constraint

Chemical Compatibility Is a Pass/Fail Constraint — Engelhardt

Chemical incompatibility has several failure modes: swelling increases interference, extraction removes plasticizer, hardening reduces conformity, and cracking creates a leak path. Concentration, pressure, temperature, exposure time, and additives all matter. Charts can remove an obviously poor candidate, but they are not evidence that a production seal will succeed.

Minimum media record

  • Fluid name, supplier and revision; include additives and cleaning concentration.
  • Contact temperature, pressure, dwell time and number of cycles.
  • Before/after mass, volume, hardness, dimensions and visible damage.
  • Acceptance limit and the person approving deviations.

When compression effects matter, record the applicable ASTM D395 method alongside the fluid exposure.

If the chart and the process disagree, stop and test the part or a representative coupon. Never average two ratings or transfer an EPDM, silicone, NBR, or FKM result from one grade to another. The risk exists because fluid additives, 72 h exposure, and 80 °C conditioning can change the result; document the test method, production lot, and supplier approval. An in-house laboratory can screen quickly, but an accredited lab may be needed for a customer release.

Search-result caution: queries such as “Apple Rubber chemical compatibility,” “Silicone O-ring size chart,” and “O-Ring compatibility Chart” often surface useful screening references. They still do not identify the tested grade, exposure time, pressure, or seal geometry for your part.

Mechanical Properties and Compression Set

Mechanical Properties and Compression Set — Engelhardt

Hardness measures indentation response; it does not replace tensile strength, elongation, tear resistance, modulus, or compression set. ASTM D2240 describes durometer methods for vulcanized rubber and thermoplastic elastomers and cautions that indentation hardness is not a fundamental material property. Use Shore values for control and comparison, not as a complete recipe. Failure investigations should connect the hardness result to the actual part, lot, and process. For a dynamic sealing application, pair a 10,000-cycle bench test with hardness and compression-set readings at 70 °C. The test record should state exposure at 80 °C for 72 h, 0.6 MPa pressure, a 2.0 mm feature, 25% compression, 5 bar proof, 2 Hz cycling, and 10 sec recovery.

ASTM D395 covers compression-set testing for rubber under compressive stress in air or liquid media. Its public scope lists three methods and says the method should reflect service, especially for static stress. Record method, temperature, duration, deflection or force, specimen dimensions, and the acceptance limit so an engineering team can reproduce the result.

Worked example (hypothetical): a specimen starts at 10.00 mm, is compressed to 7.50 mm (25% deflection), then measures 8.10 mm after conditioning. Compression set = (8.10 − 7.50) ÷ (10.00 − 7.50) × 100 = 24%. This illustrates the calculation only; it does not predict field life because geometry, pressure, surface finish, temperature, media, and cycling are not represented.

Property Question it answers What it cannot prove alone
Hardness How does the surface resist a specified indenter? Long-term sealing force, chemical life or tear resistance.
Tensile / elongation How does a standardized specimen stretch and break? Performance in a notch, seal groove or cyclic load.
Tear / abrasion How does damage propagate under a defined test? Compatibility with a specific fluid or cleaner.
Compression set How much recovery is lost after defined compression and conditioning? Dynamic fatigue, leakage at every geometry or a universal service life.

Molding and Processing Constraints

Molding and Processing Constraints — Engelhardt

With those measured properties in hand, compound selection and molding selection are coupled. Cure kinetics define the safe window; parting lines and flash affect sealing; inserts add bonding and pre-treatment variables; and post-cure can change volatiles, hardness, and dimensions. Very soft or very hard materials may constrain deep undercuts and ejection. Process risk is highest when a grade is approved without a mold trial, so ask the production team to record fill, cure, demold, and inspection conditions. Engelhardt’s overmolding guide is a useful process handoff reference; it does not replace grade-level validation.

One published patent abstract on an FKM blend reports improved elongation, hot-tear behavior, and demoldability for complex molded parts. Treat that as a technology signal, not proof that any FKM grade has those properties. In an RFQ, request the exact formulation, cure system, mold assumptions, post-cure temperature, and lot-to-lot controls, then verify the claims with a documented test.

Validate the Shortlist Before Release

Validate the Shortlist Before Release — Engelhardt
  1. Document screen: compare the service envelope with the controlled datasheet and certificate scope of the grade.
  2. Coupon test: expose representative material to the actual media and temperature; record method, lot, and conditioning against the relevant ASTM D395 method.
  3. Representative part: mold the real geometry, including inserts, surface finish, and tolerances.
  4. Condition and cycle: combine thermal, pressure, motion, and chemical cycles that reflect the use case.
  5. Release review: set measurable limits for leakage, dimensions, hardness drift, mass/volume change and visible damage.

Use a do-not-release rule when a result exceeds the agreed limit, a specimen cannot be traced to a lot, or the method does not represent service. Resolve the deviation with a documented engineering decision; do not hide it by changing the family label. Each release record should show the measured value, the limit, the reviewer, and the next corrective action. Have the supplier’s in-house laboratory or accredited laboratory sign the record before the part enters serial molding.

At release, the buyer should be able to trace the selected compound from drawing revision to formulation code, production lot, mold trial, conditioning schedule, test instrument, measured result, acceptance limit, reviewer, deviation decision, and change notice, with enough detail for a second engineer to reproduce the reasoning months later even if the supplier, tooling, or cleaning process has changed.

Do not release.

For a controlled pilot protocol, write the exposure as 80 °C for 72 h at 0.6 MPa, measure a 2.0 mm feature before and after 1,000 cycles, and record recovery after 10 min and 30 sec. These are example field formats, not product limits; the approved drawing and test procedure set the actual values.

What to Put in an RFQ

What to Put in an RFQ — Engelhardt
RFQ field Minimum useful detail
Service envelope Continuous/peak temperature, dwell, cycles, pressure, motion and installation conditions.
Media Named fluids, concentration, additives, cleaner, exposure time and temperature.
Part and process Drawing revision, geometry, tolerances, flash limit, inserts, cure/post-cure and annual volume.
Material definition Polymer family plus compound code, hardness scale, color, filler/cure constraints and approved alternates.
Evidence Test methods and editions, specimen/part results, certificate scope, lot traceability and retention period.
Change control Notification lead time for formulation, supplier, tooling, process or test-method changes.
Sampling Sample count, conditioning sequence, measurement resolution and retest rule for outliers.
Packaging and storage Bag or liner material, cleanliness class, storage temperature, humidity and shelf-life label.
Response ownership Named engineering contact, approval signature, escalation path and corrective-action due date.

Ask suppliers to mark every value as measured, typical, minimum, maximum, or not tested. That distinction prevents a typical datasheet value from being mistaken for an acceptance limit. For a controlled RFQ, require the drawing revision, test procedure, sample size, lot traceability, and change-notification rule in the same response. Cite ASTM D395 or ASTM D2240 where applicable so the evidence can be reproduced.

Example field formats (illustrative, not limits): −40 to 150 °C operating temperature; 0.8 MPa pressure; 25% compression; 70 Shore A hardness; 2.0 mm critical wall; 168 h conditioning; 5 bar proof pressure; 2 Hz cycling; 10 sec recovery; 0.5 mm flash; 3 cm bend radius; 12 months storage; 45 psi pulse; 15 MPa burst screen; 4 V and 2 A electrical checks; 6 W heat load; 3 kg clamp force; 10 min dwell; and 2 years record retention. State method and acceptance owner next to number.

Vocabulary check before the RFQ

Use a rubber material selection guide to define the right rubber and right rubber material for each end-use. Compare material options by physical properties, chemical properties, temperature resistance, and hardness range. A right compound for one application may be wrong elsewhere, so do not choose the best in the abstract. Use the worksheet to choose the right rubber, then select the right rubber for the specified end-use. Include rubber seals, sealing products, molded rubber, and designing rubber components in the drawing and inspection notes, and describe extreme environments and the actual application rather than a catalog label.

For common rubber comparisons, name standard nitrile beside butyl or a high-heat alternative, and record grease exposure, deformation, tensile properties, and whether the compound is thermosetting. Example ranges such as 20 Shore A to 90 Shore A, 50 Shore A to 80 Shore A, or a 30 Shore target are prompts for a specification, not acceptance limits. A supplier’s assistance in selecting a grade should help engineers document the test procedure; desk research may mention Minnesota Rubber, but that reference is not a qualification for your part.

Where Engelhardt Fits

Where Engelhardt Fits — Engelhardt

With those RFQ fields defined, Engelhardt’s first-party About page presents rubber, silicone, and plastic molding under one organization, with in-house manufacturing, tooling, and laboratory resources. These are supplier-reported capabilities, not proof that a particular EPDM, silicone, NBR, or FKM grade meets your service envelope. Use them to ask for a project-specific process window, test plan, certificates, and traceability.

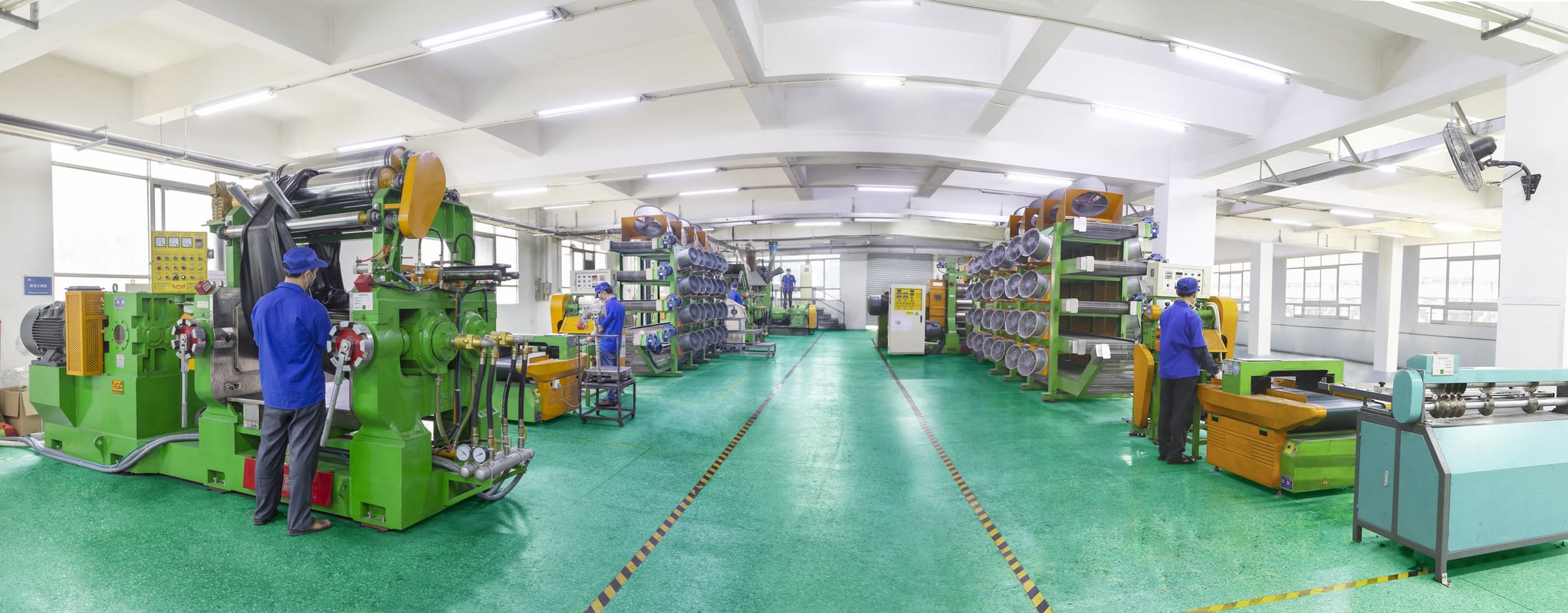

The same page records a 2009 founding and a 26,000 sqm Zhongshan facility; those facts provide company context, not compound-performance proof. Fragmented handoffs can create a leak, delay, or rework, so the capability statements remain supplier-reported. Treat them as a reason to ask a better technical question, not as a substitute for qualification.

Use the Engelhardt rubber and plastic molding homepage for the commercial handoff. Bring the completed four-question gate and request the project-specific grade, process window, inspection plan, certificates, and traceability records. Your drawing and validation plan remain the authority for release. The test-method fields should still point to controlled references such as ASTM D2240.

Buyer Outlook: Evidence Beats a Family Label

Buyer Outlook: Evidence Beats a Family Label — Engelhardt

Recent compounding research is exploring natural additives, green-chemistry approaches, and data-assisted formulation. The practical implication is not a guaranteed “next material”; it is a wider evidence burden. Electrification, stricter cleaning regimes, and sustainability targets can change the service envelope, so buyers should request formulation-level and process-level evidence rather than rely on a family name. Documented guides should also state whether a supplier can extrude, mold, or overmold the compound and how premature failure will be investigated. An in-house lab and a traceable production record make that investigation faster, but neither replaces an agreed acceptance test. A current peer-reviewed review can frame trends; it cannot certify a production grade.

FAQ

Which rubber is best for oil exposure?

Nitrile is often the first screen for petroleum oils and fuels, while FKM is considered when temperature, fuel chemistry, or solvent severity is higher. Neither family selects a grade alone. Confirm acrylonitrile or fluorine formulation, pressure, temperature, exposure time, additives, and low-temperature needs. Run immersion or representative-part testing; compare volume change, hardness drift, dimensions, and sealing force with written limits. For an O-ring, record gland fill, squeeze in mm, and expected service cycles so the result ties to actual geometry.

Is silicone better than EPDM for high temperature?

Silicone can suit wide temperature swings and clean applications, while EPDM is often stronger for weathering, ozone, water, and steam. “Better” depends on the complete service envelope: abrasion, tear, compression set, media, pressure, cleanliness, and cold-start behavior can outweigh a simple temperature ranking. Ask for grade-specific data and test the actual part under combined conditions before release. Temperature charts alone are not enough evidence for a production decision. A combined media-and-temperature test is more informative than a single headline rating.

When should I choose FKM instead of nitrile?

Keep FKM on the shortlist when high-temperature oil, fuel, or solvent exposure is the dominant risk and its cost and processing requirements are justified. Keep NBR when oil service is within its validated window and low-temperature flexibility or cost matters more. Compare exact grades, not family names: include thermal cycling, media additives, compression set, hardness drift, cure and post-cure, and certificate scope in the release plan.

What does compression set tell me?

Compression set indicates how much recovery is lost after defined compressive stress and conditioning. ASTM D395 lists several methods; choose one that represents service. It does not directly predict leakage, dynamic fatigue, or life at every geometry. Report temperature, duration, force or deflection, specimen dimensions, and acceptance limit so the production team can reproduce the decision before release.

Can a compatibility chart replace part testing?

No. Charts only screen families; they cannot replace grade-level testing on the actual part. Use a representative coupon or part and keep lot traceability for consequential applications. Use the record to decide whether a grade can move from screening to release.

Ready to turn the shortlist into an RFQ?
Send the four-question gate, drawing revision and required evidence fields to Engelhardt rubber and plastic molding. Ask for a grade-specific process and validation response, not a family name alone.

References & Sources

  1. ASTM International, ASTM D395-18 / active revision link public scope and significance for compression-set methods.
  2. ASTM International, ASTM D2240-15(2021) public scope and significance for durometer hardness.
  3. ISO Online Browsing Platform, ISO 1382 rubber vocabulary and terminology lead; verify the controlled edition for a project specification.
  4. Google Patents, WO2007092339A2 FKM formulation and demoldability technology signal; not a production-grade approval.
  5. ScienceDirect review, “Recent developments in natural rubber compounding” directional research context on additives and sustainable compounding.
  6. Engelhardt About Us first-party company and capability context, used with supplier-reported scope caveats.

Source-use note: standards and research links support definitions and method boundaries. Supplier capability statements aren’t independent certification proof. Confirm current editions, grade data and regulatory scope before production release.



]]>
https://meitu-engelhardt.com/rubber-compound-selection-guide-blog/feed/ 0
Medical Injection Molding: Materials, Compliance & Manufacturing Requirements https://meitu-engelhardt.com/medical-injection-molding-requirements/ https://meitu-engelhardt.com/medical-injection-molding-requirements/#respond Thu, 13 Aug 2026 09:58:59 +0000 https://meitu-engelhardt.com/medical-injection-molding-requirements/

Medical injection molding requirements are the material, quality, validation, traceability, and documentation conditions needed for a molded plastic part’s intended medical use. In practice, the question is not “Which resin is medical grade?” It is “What evidence must this molded component carry for its contact type, risk, sterilization path, and buyer quality system?”

This guide is written for OEM engineers, sourcing teams, and quality managers who need to define a medical molding evidence package before requesting a quote. It is a buyer and manufacturing guide, not legal advice and not a substitute for device-specific regulatory review.

Direct answer

Core medical injection molding requirements are: define the product role and intended use, select resin and additives against the contact and sterilization profile, document supplier and quality-system controls, validate molding processes when later inspection cannot fully verify output, control contamination where the device needs it, prove inspection and metrology capability, preserve lot or cavity traceability where relevant, and lock change-notification rules before production.

What Requirements Actually Cover

What Requirements Actually Cover - Engelhardt-Meitu

Medical molding requirements start with product context. Intended use, indications for use, device classification, product code, patient or user contact, sterilization, packaging, and supply-chain role all change the evidence package. A component-only molder, a finished-device contract manufacturer, a contract sterilizer, a labeler, and an importer do not carry identical duties.

Use the hierarchy below before building an RFQ. It keeps baseline molding evidence separate from conditional device-law branches that only apply when the project trigger is present.

Medical device injection molding should be scoped as a manufacturing process, not as a generic plastic purchasing job. The injection molding process for medical products can include straight molding, and injection molding for medical assemblies may also involve insert molding, overmolding, assembly, and documentation-heavy molding services for the medical industry. Medical field regulatory requirements also depend on product role, contact path, and buyer flow-down.

Use related terms with care. Injection molding for medical devices is broader than a generic injection molding services order: a medical-grade plastic or medical plastic is suitable for medical applications only when its material grade, processing history, cleanroom manufacturing need, lot traceability, and design control evidence fit the product role. Materials for medical device manufacturing must be tied to medical device regulation, medical device industry expectations, the intended medical equipment or component function, and the buyer’s quality-system requirements. Medical components must meet ISO 13485 flow-down controls only when that QMS path applies; two-shot molding can support seals or soft-touch interfaces, but it inherits the same evidence boundaries.

6-Layer Medical Molding Requirement Map

Layer What To Define Typical Evidence
Product role Component, accessory, finished device, or supplier service Drawing, intended-use statement, buyer quality agreement, role map
Materials Resin grade, additives, colorants, contact type, sterilization exposure Material certificates, traceability, chemical characterization, biocompatibility rationale
QMS and documentation Supplier controls, records, purchasing requirements, change notification Quality agreement, audit evidence, production records, batch records, training records
Manufacturing controls Tooling, process window, drying, cleanroom need, validation depth DFM records, molding parameters, IQ/OQ/PQ package where applicable, maintenance history
Inspection and traceability Critical dimensions, sampling, measurement capability, lot or cavity identity Inspection plan, calibrated results, Gage R&R or method capability, material and lot genealogy
RFQ and supplier fit Evidence package, escalation path, buyer approvals, transfer rules Medical molding RFQ checklist, quote assumptions, change-control matrix

Applicability Hierarchy Matrix

Branch Use It When Buyer Question
Baseline molded-component evidence Any plastic part is supplied for a medical product. Can the supplier prove material identity, process control, inspection, and change notification?
Finished-device or accessory duties Molded output is usable as a device or accessory after final processing. Who owns registration, listing, labeling, complaint handling, and submission evidence?
Buyer specification OEM flow-down specifies ISO 13485, cleanroom, validation, or documentation requirements. Which controls are contract requirements even if not universal regulations?
Voluntary consensus-standard route A standard supports a submission or buyer specification. Is the standard recognized, current, partially recognized, or only used as a technical method?
Submission-specific change pathway Material, process, supplier, facility, or intended-use changes may affect a cleared or approved device. Does the OEM need regulatory review before accepting the change?

Material Requirements

Material Requirements - Engelhardt-Meitu

After the applicability matrix sets the branch, material selection can be narrowed without treating every conditional rule as universal. Common medical molding material families include polypropylene, polyethylene, polycarbonate, ABS, PEEK, TPE, and silicone. These families are only starting points. Exact grade, masterbatch, colorant, lubricant, mold-release residue, drying history, sterilization exposure, and final part geometry can change the biological and performance risk profile.

Start material selection with contact classification. Direct body contact, indirect patient contact through fluid or gas paths, user-only contact, and true non-contact housings should not be forced into the same biological-evaluation path. ISO 10993-1 is usually the main biological-evaluation framework, while chemical characterization under ISO 10993-18 may be needed to understand substances introduced by formulation, molding, cleaning, sterilization, or degradation.

Avoid the shortcut phrase “FDA-approved plastic” unless a specific regulatory source supports the exact use. FDA evaluates devices and evidence in context, not loose polymer family names. Color additives are their own branch: black, white, gray, and colored pigments may need use-specific evidence when they are part of a device with direct body contact. USP Class VI can also appear in procurement specifications, but it does not replace ISO 10993 or device-specific biological evaluation.

Sterilization compatibility also belongs in the material requirement package. Ethylene oxide, radiation, heat, vaporized hydrogen peroxide, and repeated reprocessing cycles can affect color, brittleness, dimensions, extractables, seal performance, or long-term strength. For reusable molded devices, ask whether the part retains material properties and function through the maximum validated cleaning, disinfection, or sterilization cycle count.

Injection molding adds latent material risks that cannot be solved by certificate review alone. Residual stress, molecular orientation, anisotropy, weld-line strength, creep, stress relaxation, warpage, environmental stress cracking, and delayed failure can matter for connectors, fluid seals, optical parts, clips, housings under load, and precision interfaces. These risks should be tied to mold design, gate location, packing and cooling strategy, process window, and performance tests that represent production parts.

Compliance and Documentation Requirements

Compliance and Documentation Requirements - Engelhardt-Meitu

Those material and molding-risk choices must flow into controlled records instead of staying as engineering notes. For the U.S. market, FDA’s Quality Management System Regulation aligns device quality-system requirements with ISO 13485:2016 while keeping FDA supplemental provisions such as record controls and labeling and packaging controls. The key buyer point is role clarity. A component supplier may be controlled through purchasing requirements and a quality agreement, while a finished-device manufacturer or contract manufacturer can carry broader medical-device quality-system duties.

ISO 13485 certification is common in medical-device supply chains, but it should be specified accurately. Some buyers require a certified supplier. Others qualify a molder under the OEM’s quality system and flow down project controls for material traceability, validation support, production records, training, supplier notification, and document retention. Engelhardt-Meitu’s public pages list ISO 9001 and IATF 16949; this guide does not claim ISO 13485 certification for the company.

Documentation should be current and role-specific. Ask for medical-device records, batch records, production records, quality records, inspection records, nonconforming-product records, rework records, CAPA linkage where applicable, mold-maintenance records, training-effectiveness evidence for quality-impacting roles, and documented change review. Legacy terms such as DHR, DMR, DHF, and QSR should only be used when they are intentionally referring to older records or older rules.

Change control needs special attention. Resin supplier changes, formulation changes, new colorants, cavity changes, mold transfers, press transfers, facility transfers, process-window changes, sterilization changes, packaging changes, or supplier changes can affect device evidence. For devices subject to a 510(k), significant changes to design, components, method of manufacture, or intended use can trigger OEM regulatory review. PMA, HDE, IDE, and other pathways need their own review instead of a single 510(k)-only model.

Software should be scoped by its intended use. Molding-machine recipe control, automated inspection decisions, process-data capture, barcode traceability, electronic batch records, and QMS platforms can need risk-based computer software assurance when used for production or quality purposes. Part 11 electronic-record governance and ISO 13485 monitoring and measurement software validation are related checkpoints, but they are not identical.

Manufacturing Validation and Process Controls

Manufacturing Validation and Process Controls - Engelhardt-Meitu

Cleanroom molding is not automatic for every molded medical component. It becomes relevant when contamination risk, sterile-device strategy, assembly route, packaging path, product cleanliness, buyer specification, or microbial-control strategy requires a controlled environment. If a cleanroom is required, define the ISO 14644 particle class, environmental monitoring, microbiological monitoring where applicable, gowning, material flow, packaging interface, and response to excursions.

Sterile devices need more than a clean manufacturing room. Buyers should separate cleanroom class from sterilization validation, sterility assurance level, sterilant residuals, product bioburden, endotoxin or pyrogen controls, sterile-barrier packaging, package integrity, simulated distribution, aging, and shelf-life evidence. Contract sterilizers can also have their own establishment role, which should be mapped separately from the molder’s role.

Process validation becomes important where later inspection and testing cannot fully verify finished output. A useful validation package should go beyond labels such as IQ, OQ, and PQ. It should show equipment qualification, process-window rationale, worst-case parameter challenge, failed-run handling, revised worst-case repeat runs where needed, and nominal production runs long enough to represent routine production duration.

A validated state is not a one-time event. Changes to mold condition, machine, auxiliary equipment, material drying, personnel, procedures, maintenance, software, deviations, trends, or CAPA can require documented review and partial or full revalidation. Startup purge, hot-runner residence time, restart rules, first-shot segregation, and degraded-resin containment also matter when black specks, flakes, or embedded contamination can appear after holds or stops.

Dimensional and functional risks should be tied to the actual part. For tight-tolerance molded medical parts, define critical dimensions, acceptance criteria, calibrated measurement equipment, measurement uncertainty where relevant, repeatability and reproducibility, operator effects, and method discrimination near limits. Calibration, sampling, process validation, and software validation are not substitutes for a measurement method that can reliably separate conforming from nonconforming parts.

Conditional Trigger Matrix

Conditional Trigger Matrix - Engelhardt-Meitu

Once the manufacturing validation and metrology are drafted, the other process branches typically require engagement only if the project meets the relevant trigger. These separate branches remain in a combined matrix of risk assessment because they all relate back to manufacturing a finished part within specifications. Keeping them united as such helps keep the product-level objective in focus as the work moves from RFQ development to full production.

Trigger Review This Requirement
Sterile device or sterile-barrier packaging Sterilization validation, product bioburden, endotoxin where applicable, packaging integrity, aging, residuals, and contract sterilizer role.
Reusable molded device Cleanability, reprocessing instructions, marking durability, retained physical properties, and maximum validated reuse cycles.
Connector, seal, clip, or loaded interface Weld-line location and strength, residual stress, creep, stress relaxation, mating tolerance, and misconnection risk where relevant.
Multi-cavity mold or field-action risk Cavity identity, lot genealogy, sampling across cavities, defect localization, and containment records.
External laboratory evidence Testing-facility qualification, data-integrity review, independent verification of submitted results, and GLP only for qualifying nonclinical studies.
Special material branch Color-additive use restrictions, natural rubber latex labeling, animal-derived inputs, recycled or reprocessed resin, and shelf-life performance evidence.
Finished device, accessory, importer, labeler, or distributor role Registration and listing, UDI or direct marking, GUDID, complaint handling, MDR routing, Part 806 correction/removal, and Part 821 tracking where ordered.
Facility-owned operation State or local manufacturing licenses, EtO environmental controls, OSHA guarding, lockout/tagout, ventilation, heat or fume controls, and training records.

Medical Molding RFQ Checklist

Medical Molding RFQ Checklist - Engelhardt-Meitu

After the trigger matrix removes non-applicable branches, a strong RFQ can define evidence before price. If the buyer cannot state the contact type, sterilization route, inspection plan, and change-control expectations, the supplier is forced to quote assumptions instead of requirements.

When comparing medical injection molding companies, do not start with a generic medical injection molding requirements PDF. Start with a role-specific evidence map that separates baseline molding controls, buyer specifications, and regulatory-review triggers.

Requirement Type What To Ask For
Product state and role Component, accessory, finished device, packaging or assembly interface, and each party’s quality-system responsibility.
Material package Resin grade, additives, colorants, certificates, storage and drying controls, permitted regrind, and substitution rules.
DFM and tooling Mold-flow concerns, gate location, weld-line risk, ejection, draft, tolerances, cavity plan, tool maintenance, and transfer controls.
Validation and production run IQ/OQ/PQ expectation, process-window rationale, worst-case runs, nominal run duration, startup rules, and revalidation triggers.
Inspection and metrology Critical dimensions, sampling plan, calibrated instruments, method capability, measurement uncertainty, and release criteria.
Traceability Material lot, production batch, machine, operator, tool, cavity where needed, inspection data, and retention period.
Numeric specification fields Use buyer-approved limits, not copied examples. RFQs often need units for tolerances such as 0.01 mm, 0.05 mm, or 0.10 mm; pin diameters such as 1 mm or 2 mm; particulate bins such as 10 um or 50 um; drying records such as 2 hours, 4 hours, 8 hours, or 24 hours; cycle records such as 30 sec; pressure such as 500 psi or 80 MPa; residence-time limits such as 10 min; regrind rules such as a buyer-approved percentage or no regrind; and aging such as 7 days, 180 days, 12 months, or 3 years.
Cleanliness, cleanroom, and sterilization Cleanroom class if needed, product cleanliness limits, bioburden, endotoxin, packaging, sterilization method, and interface owner.
Records and software Production records, batch records, electronic-record expectations, automated inspection logic, traceability systems, and CSA evidence where applicable.
Escalation and change notification Nonconformance, rework, CAPA, complaint feedback, field-action support, supplier notification timing, and buyer approval requirements.

How Engelhardt-Meitu Fits Plastic Injection Molding Projects

How Engelhardt-Meitu Fits Plastic Injection Molding Projects - Engelhardt-Meitu

With that RFQ boundary in place, the checklist should be applied to the supplier’s real manufacturing surface, not to a generic vendor profile. Engelhardt-Meitu is positioned as a custom molding and multi-process manufacturing partner with plastic injection molding, rubber and silicone molding, precision hardware, in-house mold work, assembly, packaging, and quality-lab capabilities. Its public plastic molding page describes 400+ injection machines, up to 2,000T clamping force, 11,000 tons annual output, and 15+ years of production experience.

For medical projects, treat those capabilities as manufacturing context and pair them with project-specific buyer controls. Before launch, define the material evidence, DFM review, inspection method, traceability plan, cleanroom or packaging interface if required, and supplier change-notification rules. If the buyer needs ISO 13485 certification, sterile-device documentation, or FDA submission-supporting evidence, those expectations should be named in the RFQ and verified for the specific project.

Engelhardt-Meitu Capability Boundary

Use Engelhardt-Meitu’s custom plastic injection molding capabilities for DFM, tooling, molding, material selection support, secondary operations, and production planning. Use the buyer’s device-risk file, quality agreement, and regulatory strategy to decide which medical evidence is required.

FAQ

What are the main medical injection molding requirements?

Main requirements include material selection, biocompatibility or chemical-risk evidence where applicable, QMS and supplier controls, process validation where inspection is not enough, contamination control where needed, inspection and metrology capability, traceability, and documented change control.

Do medical injection molding suppliers need ISO 13485?

Some buyers require ISO 13485 certification. Others qualify a supplier under buyer-controlled purchasing requirements and quality agreements. Correct scoping depends on product role, risk, buyer policy, and whether the supplier performs covered finished-device work. A sourcing team should state the requirement before quoting, because it changes audit depth, record retention, validation support, complaint-feedback routing, software evidence, and change-notification language. If a supplier lists ISO 9001 or automotive certifications but not ISO 13485, treat that as capability context rather than medical-device QMS proof.

When is cleanroom injection molding required?

Cleanroom molding is required when contamination risk, sterile-device strategy, assembly route, packaging path, or buyer specification requires environmental control. It is not universal for every molded medical component.

Which materials are used in medical injection molding?

PP, PE, PC, ABS, PEEK, TPE, and silicone are common families. Material choice depends on contact type, mechanical load, chemical exposure, sterilization, aging, additives, colorants, and the evidence needed for the finished device.

What makes process validation representative?

Representative validation uses production-equivalent tooling, material, equipment, parameters, inspection methods, and run duration. It should address worst-case settings, nominal production duration, startup or restart behavior, cavity balance, and revalidation triggers.

References & Sources

]]>
https://meitu-engelhardt.com/medical-injection-molding-requirements/feed/ 0
Two-Shot Molding: Process, Applications & When to Use It https://meitu-engelhardt.com/two-shot-molding/ https://meitu-engelhardt.com/two-shot-molding/#respond Thu, 13 Aug 2026 06:15:31 +0000 https://meitu-engelhardt.com/?p=3105

Two shot molding is a plastic injection molding process to make one component with two materials, two colors or two functional surfaces, in a coordinated series of molding steps. It’s relevant if the design is well established, the annual volume is high enough, the bond can be tested and the additional tooling price can replace assembly, painting or other joining.

Process definition matters. Some suppliers use “two-shot”, “2K”, “dual-shot” and “multicomponent injection molding” with subtle distinctions. Buyers should clarify what the machines and mold do: rotary indexing, moving cores, multiple injection units, robot transfer between mold cavities or a subsequent secondary molding operation. Route choice is more important than the label on the quote.

Short Answer

Use two shot molding when the single molded component requires a rigid/soft interface, two colors, sealed surfaces or assembly removal for high volume production. Use standard plastic injection molding, insert molding, or a staged secondary molding route when the design is low volume, in flux or requires easier later separation of materials.

What Is Two-Shot Molding?

What Is Two-Shot Molding? — Meitu Engelhardt

Two shot molding produces a multi-material or multi-color component in two interdependent shots of thermoplastic or elastomer. First-shot material prepares a substrate or basic feature. Second-shot material bonds, seals, colors or softens part of the initial shot geometry. Typical cases include a hard enclosure with a soft grip, a black and white control switch, a sealed connector or a two-shaded cosmetic cap.

In purchasing dialogs “two-shot molding” blurs with “two-shot injection molding”, “2K molding”, “dual-shot molding” and “two-component injection molding”. This paper uses those terms for decisions relating to plastics and rubber-plastic parts, not for the legends on keycaps or other unrelated consumer “double shot” products.

In academic manufacturing writings, multi-material injection molding is distinguished from standard single-material processes by the presence of a previously molded part in the second molding step. This adds process control checks on the sequence, mold motion, interface geometries and ejection forces, beyond resin choice.

Krauss-Maffei current guidance for multicomponent equipment divides the process routes into mold technologies like sliding split, turntable, index plate, sliding table or transfer. This supports a route-specific classification: the quote should specify how the first shot is handled prior to second-shot injection.

For buyer review, compare the academic definition of later molding stages with current multicomponent equipment routes. A credible factory answer should name the first-shot handling route, second injection unit, material pair, and validation samples from a similar project.

Treat two-shot molding as a process route to prove, not a label to accept. The RFQ should make the supplier show the cell architecture before the design moves to steel.

How The Two-Shot Injection Molding Process Works

How The Two-Shot Injection Molding Process Works — Meitu Engelhardt

A typical route comprises four process steps: produce first shot, orient first-shot geometry for second shot, inject second shot, then cool and eject the formed component. In an injection molding process review, the orienting stage decides whether the quote describes one controlled multicomponent cell or a looser transfer operation.

Step What Happens Engineering Risk
First shot A rigid or base material fills the first cavity. Shrinkage, datum stability, and surface temperature affect the second shot.
Index, rotate, move core, or transfer The first-shot element is positioned for the second material. Alignment, mold motion, robot controls, and shut-off faces decide flash and registration.
Second shot A second material or color is injected against selected first-shot surfaces. Pressure, gate direction, overlap area, melt temperature, and flow rate affect bond strength.
Cooling and ejection The finished part cools and exits as a single component. Different materials may shrink, grip, or deform at different rates.

Route-specific terminology is necessary. A robot moving a component between mold halves can be present in advanced injection molding literature. At the same time, conventional molding over a preformed part often means re-molding in a second operation. When reviewing a quote, ask the supplier to describe the cell layout rather than use “two-shot” as a proxy.

In transfer-style 2K, the preform may be transferred out of the first cavity by robot, placed into another cavity, and then closed to make the second component. That’s why this guide considers robot transfer as a viable multicomponent architecture, though it remains to consider if the transfer occurs within a validated cell or outside it.

Two-Shot Molding vs Overmolding vs Insert Molding

Two-Shot Molding vs Overmolding vs Insert Molding — Meitu Engelhardt

Route selection depends on volume, material behavior, assembly target, tolerance stack, and how much freedom the design still requires; multi-material manufacturability research treats those choices as design-stage constraints. A stable automotive button may use a two-shot tool. A low-volume handle with changing grip geometry may be better achieved as overmolding. A connector with metal contacts may need insert molding.

Route Best Fit Ask Before Tooling
Two-shot / multicomponent molding High-volume parts with stable geometry, repeatable color/material placement, and assembly reduction. Which machine architecture, injection units, and validation history support the route?
Overmolding Material flexibility, lower initial validation burden, or parts that can be molded over in a later step. How will the preform be located, heated, cleaned, and bonded?
Insert molding Metal threads, contacts, bushings, pins, terminals, or other placed inserts. How are inserts loaded, retained, and protected from shift during injection?
Robot-transfer route Can be part of a multicomponent cell or a separate secondary molding operation, depending on tooling and validation. Is the transfer inside one controlled molding cell, or is it a separate operation with its own variation?

Material And Process Risk Matrix

Material And Process Risk Matrix — Meitu Engelhardt

Material compatibility is relevant, but not the sole criterion. Typical first-shot selections are ABS, PC/ABS, PP, PA, PBT, and other rigid engineering plastics. Typical second-shot selections are TPE, TPV, TPU, LSR, EPDM, and nitrile materials. Supplier testing should cover the exact commercial grade, colorant, additive, surface texture, and processing window.

In recent injection molding research on multicomponent bonding, such as adhesive strength increasing with overlap area, a 2024 Journal of Manufacturing Science and Engineering paper on two-shot bi-injection, secondary molding, and bond strength considers mold temperature and melt temperature as bond-strength variables. Still, a material pair may appear in the acceptable zone of a chart, but fail due to weak interface geometry or process window.

Risk Gate What To Check Why It Matters
Material pair Grade, hardness, shrinkage, melt temperature, additive package, and colorant. Resin-family names alone do not prove adhesion.
Overlap area Contact length, mechanical locks, undercuts, texture, and interface width. Small overlap can reduce bond margin even when the materials are compatible.
Process window Injection flow rate, melt temperature, mold temperature, first-shot cooling, and second-shot pressure. Bond strength can move with processing, not just resin chemistry.
Tooling sequence Shut-off faces, gate direction, venting, rotary/indexing accuracy, and robot transfer controls. Flash, distortion, or registration drift can turn a good concept into a poor production part.

Common Applications: Where Two-Shot Molding Makes Sense

Common Applications: Where Two-Shot Molding Makes Sense — Meitu Engelhardt

Two-shot molding is optimal when the second component provides a significant function or eliminates a secondary process, provided the interface is validated against the process parameters that affect adhesive strength. Typical application sets include automotive interior control buttons, appliance controls, consumer electronic components, soft-touch handles, multi-color caps, sealed connector interfaces, gasket applications, and assemblies where manual joining creates repeatability risk.

Value isn’t limited to “prestige appearance.” Hard/soft interfaces can benefit gripping and sealing. Two-color parts can eliminate painting. Second materials can form gaskets and edges, add surfaces, or cut part count. Design advantages grow when the production run repeats and interface conditions can be test molded before steel is allocated.

When To Use Two-Shot Molding

When To Use Two-Shot Molding — Meitu Engelhardt

The bottom line is The Two-Shot Payback Gate: use two-shot molding only when production savings and finished-part benefits offset the investment in tooling, validation, and process controls. It works best after the design, material pair, interface geometry, and tolerance target are stable enough to test.

  1. Annual volume is adequate; if the part repeats in thousands, tooling makes more sense.
  2. Material combinations work only after validation. Perform bonding, peeling, tearing, sealing, or aging validation tests with the mold closed.
  3. Second-shot material removes effort. Common goals are bonding, painting, gasketing, manual joining, and color separation.
  4. Equipment suppliers should demonstrate shop-floor proven capability. Request multiple injection units, rotary, indexing, or transfer architecture, controls, and previous two-shot qualification, not just press capacity.

Engelhardt, a public source of injection molding information, supports a general context of broad injection molding capability including machine range, shot size, and tolerance recommendations. It shouldn’t be considered sole proof of the feasibility of all two-shot routes for all applications. A dedicated RFQ should request the exact cell architecture and validation plan.

When Not To Use Two-Shot Molding

When Not To Use Two-Shot Molding — Meitu Engelhardt

Two-shot molding isn’t always the right choice over standard injection molding plus later assembly or overmolding. It might be the wrong choice when design certainty, low volume, material risk, easy separation, or end-of-life considerations are more important than cycle time.

  • Low volume: If needed only at low annual volumes standard injection molding with subsequent assembly might be more economical.
  • Unstable design: Two-shot tooling locks interface geometry early. Maintain flexibility if the product is still evolving.
  • Doubtful bond: if bond testing is not ready, do not hide that risk inside an expensive production tool.
  • Easy separation is essential: permanently fused mixed-material components can be problematic where uniform, low-contamination waste streams are important for recycling.
  • Metal or electronic inserts: the path for threads, pins, contacts and terminals will usually be insert molding.

NIST points out that mixed plastics, combined with contamination, can be an impediment for recycling, while effective recycling usually thrives on uniform, low-contamination waste streams. Two-shot parts are not off limits; product designers simply need to discuss separation early for a more sustainability-focused consumer product.

Product Design And Tool Design Checks Before Tooling

Product Design And Tool Design Checks Before Tooling — Meitu Engelhardt

Before buying a 2-shot tool, consider the job from the viewpoint of a manufacturing process. General press capacity, clamping force, or tolerance range can help screen a supplier, but they cannot replace detailed process analysis of the potential second shot.

Check Evidence To Request
Tooling route Machine layout, injection units, rotary/indexing or robot-transfer description, and control plan.
Interface design Overlap area, shut-off faces, gate direction, venting, draft, and mechanical lock features.
Dimensional control Datum scheme, shrinkage assumptions, tolerance stack, T1 report, T2 report, and inspection plan.
Bond validation Peel, pull, shear, seal, thermal aging, chemical exposure, or drop-test method tied to real use.
Safety and production controls Guarding, interlocks, hot-surface controls, ventilation, material safety data, pellet housekeeping, noise controls, adjacent robot guarding, and LOTO rules for servicing or guard bypass.

OSHA’s lockout tagout standard applies to hazardous-energy control for servicing and maintenance only; those rules are not universal production instructions. OSHA’s machine guarding guidance for injection molding machines also identifies normal production hazards like barrel heat, melted plastic splatter, gases/vapors, ventilation, pellet housekeeping, noise and the adequacy of guards and interlocks. List these out as activity-specific observations, not sourcing articles, and not a substitute for professional advice.

RFQ Checklist For A Two-Shot Molding Project

RFQ Checklist For A Two-Shot Molding Project — Meitu Engelhardt

A useful RFQ should introduce greater certainty. No supplier can price and validate 2-shot molding from a CAD file alone without knowing the material combination, interface function, test method, and production pathway.

9-Point Two-Shot Qualification Matrix

Category RFQ Field Unit Or Evidence To Request
Volume Annual demand and production life pcs/year, launch date, and expected years in production
Machine fit Clamp force, shot size, and injection units tons, g or cm3 shot size, and number of injection units
Geometry Critical dimensions and tolerance stack mm tolerance targets, datum scheme, and inspection points
Interface Overlap area and shut-off design mm2 contact area, texture callouts, and shut-off face drawings
Materials First-shot and second-shot grades resin grade, Shore hardness, melt temperature in deg C, and colorant package
Process window Cycle time, flow rate, and cooling assumptions seconds/cycle, cm3/s flow target, mold temperature in deg C
Bond testing Peel, pull, shear, seal, or aging method N, MPa, hours at temperature, chemical exposure, or drop height
Quality T1/T2 reports, scrap criteria, and appearance limits Cpk target, % scrap threshold, color delta, and sample size
Safety Guarding, robot cell, ventilation, and maintenance plan interlock check, exhaust method, dB noise review, and LOTO procedure for servicing
Two-Shot RFQ Inputs

  • 2D drawing, critical datum scheme, appearance zones, and 3D CAD.
  • First-shot and second-shot resin grades, color, hardness, and regulatory requirements.
  • Annual volume, target cycle time, expected production life, and production launch date.
  • Bond, peel, pull, seal, drop, aging, or chemical-resistance requirements.
  • Overlap-area assumptions, shut-off faces, gate direction, and surface-texture requirements.
  • Required tooling route: rotary/indexing, movable core, robot transfer, or supplier-defined architecture.
  • Injection units, mold-transfer controls, similar validation history, and T1/T2 inspection plan.
  • Alternative routes to analyze: insert molding, standard molding, or a staged secondary molding route.

Two-Shot Mold Tool Design Terms For RFQ

Use this language checklist to make the supplier describe the actual mold, mold layout, process route, and acceptance evidence. It reduces the risk that a quote for two-shot mold work is really a looser secondary overmold operation with fewer process controls.

RFQ Area Terms To Confirm Why It Matters
Machine and mold Injection molding machine, standard injection molding machine, platen, mold components, cavity count, injection unit, independent injection unit, and tool design. A supplier should prove how the mold opens, closes, indexes, rotates, or transfers the first molded part before steel is cut.
Process name Shot injection, shot injection molding, two shot injection molding, two-shot plastic injection molding, two-shot molding process, two-shot injection molding process, multi-shot, multi-shot injection molding, 2-shot molding, and 2K molding. The naming should match the real manufacturing process, not a generic plastic molding label copied into a quotation.
Material sequence First injection, second material injection, first material is injected, second material is injected, two plastics, two plastic resins, two different materials, two or more materials, overmold surface, and overmolding material. These phrases force the supplier to state whether two parts become one molded assembly, which material forms the substrate, which material bonds next, and whether the part is molded in the same tool.
Part outcome Injection molded part, injection molded sample, two-shot injection molded sample, molded part, plastic parts, rubber molding interface, part to be molded, injected into a mold, cooled to form a solid, and form a solid part. The review should connect the molding cycle to the final plastic part, not only to press capacity or tool size.
Production plan Molding cycle, production runs, production efficiency, single process, two processes, one machine, sequential injection, second phase, product design, design phase, common applications, injection molding services, injection molding quote, molding capabilities, production of complex parts, bonding between the two materials, form a molecular bond, within a single tool, and wide range of industries. These checks tie the mold, material pair, and production evidence back to repeatable output across the intended volume.

Upload drawings for a molding review

FAQ

What is double shot molding?

Double shot molding is another name for two-shot molding.
This implies that two different materials and/or two colors were molded together to produce a single final part. In the RFQ, clarify whether the supplier’s quotation means rotary/indexed two-shot molding, multicomponent molding, robot transfer, or a separate secondary molding operation. Why does language matter here?

Several approaches can produce a similar underlying product, but each creates a different cost, validation scope, and operational risk for how the first-shot part is placed.

What are the key differences between two-shot molding and overmolding?

Two-shot molding is usually a coordinated multicomponent cell; overmolding usually molds over a preformed part in a later step, so buyers should verify whether both shots stay inside one controlled molding cell.
Boundaries are not always absolute because robot-transfer routes are used for multicomponent molding. A safer sourcing question is: what machine, mold, transfer method, and validation plan will be used? If the part is molded, removed, stored, and later transferred for other processing, buyers often call this a staged molding route. If the transfer is handled under control within a multicomponent molding cell, the supplier should prove that route with machine setup and sample validation.

What is two-component injection molding?

Two-component injection molding combines two molded materials or colors in one part through a machine, mold, and control plan designed for the full molding sequence.
They may use multiple injection units, rotary or indexing motion, movable cores or controlled transfer between cavities. For design for manufacturing, the exact set-up should be confirmed. For a buyer, the weight of the proof is not in the word, but in the supplier machine layout, mold-transfer plan, material test data and inspection proof that the two materials will bond repeatedly at the desired volume.

Is two-shot molding expensive?

Two-shot molding can be expensive up front because tooling and validation are higher, but it may reduce unit cost at high volume when secondary operations disappear.
Tool and validation costs need to be balanced against labor savings, fewer secondary processes, less scrap, more consistent sealing, or part count reduction. Low-volume or inconsistent designs often work better by a staged molding route or traditional molding.

Which materials can be used in two-shot molding?

Common pairs include rigid plastics with soft elastomers, but the exact grades, additives, colorants, surface texture, and process window must be tested before production tooling.
ABS, PC/ABS, PP, PA, and PBT may be used with TPE, TPV, TPU, LSR, EPDM or nitrile type materials depending on the design. Bonding test should confirm the precise grade, colorant, surface and process window.

Does two-shot molding replace insert molding?

No. Insert molding remains the better route when the part needs metal or electronic inserts such as terminals, contacts, bushings, pins, threaded features, or retained hardware.
Use insert molding for terminals, contacts, threads, bushings, pins or other placed parts. Use two-shot molding when both shots are molded materials and the second material provides function, color, grip or sealing.
]]>
https://meitu-engelhardt.com/two-shot-molding/feed/ 0
Structural Foam Injection Molding: Process, Benefits & Applications https://meitu-engelhardt.com/structural-foam-injection-molding/ https://meitu-engelhardt.com/structural-foam-injection-molding/#respond Thu, 13 Aug 2026 05:37:56 +0000 https://meitu-engelhardt.com/?p=3089

Injection Molding Guide

Structural foam injection molding is a foam-assisted thermoplastic molding process for large or thick plastic parts. For buyers, it is not just standard injection molding with bubbles added. It is a process family where resin, a blowing agent, mold cavity pressure, cooling, cell morphology, and part geometry decide whether a molded part gains useful stiffness, weight reduction, and production value.

For OEM buyers, the useful question is practical: when does this process help a large plastic part, and when does it add surface, validation, or compliance risk? This guide explains the process, its benefits, its limits, and the evidence a supplier should provide before you move a housing, enclosure, pallet, cover, or thick structural plastic part into production.

Fast answer

Choose structural foam when a large or thick thermoplastic part benefits from a cellular core, lower packing pressure, and stiffness per unit weight. Be more cautious when the part needs a polished cosmetic face, thin precision features, long service-life proof, chemical blowing-agent documentation, or end-use compliance evidence.

What Is Structural Foam Injection Molding?

What Is Structural Foam Injection Molding? — Meitu Engelhardt

Structural foam injection molding is a plastic injection molding process family that introduces gas into a thermoplastic melt. The gas may come from a chemical blowing agent or a physical foaming route, depending on equipment and material. As the melt enters the mold cavity and pressure changes, cells form inside the part. A denser outer skin and a cellular core can give the part stiffness with less resin than a fully solid section.

That definition matters because the word “foam” is easy to misread. This is not rigid foam board, spray foam, or a soft cushioning foam. It is still injection molding of thermoplastic resin. The difference is that the injection molding process is designed around controlled foaming, cavity fill, cooling, surface expectations, and post-mold inspection.

Process-Family Boundaries: Structural Foam, Chemical Foaming, and Microcellular Molding

Process-Family Boundaries: Structural Foam, Chemical Foaming, and Microcellular Molding — Meitu Engelhardt

A buyer should not treat every foam molding paper, patent, or supplier page as evidence for the same production route. Conventional low-pressure structural foam, chemical foaming-agent molding, physical foaming, microcellular or MuCell-style molding, gas-counter-pressure molding, and mold-opening variants are useful RFQ categories because their equipment, pressure profile, cell size, cell distribution, surface remedies, and mechanical results may differ.

That does not make the subject too complex for a sourcing team. It means the RFQ should ask a precise question: “Which foam molding process are you quoting, and what evidence do you have for this material, wall section, surface requirement, and load case?” When buyers compare industrial molding processes, a supplier who answers only with generic low-pressure benefits still needs to connect the route to the actual part.

Engineering note: Treat the structural foam molding process and the structural foam molding machine as route-specific choices. The useful supplier answer is not “we can foam plastic”; it is a route, material, tool, venting, sample, and validation plan for the part in front of you.

3-Route Process Boundary Map

  • Conventional structural foam: often discussed for large, thick, lower-pressure molded parts with a cellular core and denser skin.
  • Chemical foaming-agent molding: depends on the agent, decomposition behavior, resin, processing temperature, and safety documentation.
  • Microcellular or physical foaming: may use different equipment and can show different cell morphology and mechanical tradeoffs.

How the Structural Foam Injection Molding Process Works

How the Structural Foam Injection Molding Process Works — Meitu Engelhardt

Building on that route-specific boundary, a buyer-level view of the process starts with thermoplastic resin and a blowing agent. The material is plasticized, injected into the mold cavity, and allowed to expand as pressure conditions change. The expanding material helps fill thicker sections, while the outer material against the colder mold wall forms a denser skin. After cooling and ejection, the part is inspected for dimensions, surface condition, weight, cell structure, and performance.

A more careful explanation adds an important limit: skin-core formation is not one universal clockwork sequence. Foam injection molding studies discuss factors such as pressure, re-dissolution, shear or fountain-flow effects, filling, cooling, polymer solidification, and bubble behavior near skin and core layers. For a buyer, this list is not a process recipe. It is a reason to ask how the supplier controls cell morphology, skin thickness, weight, dimensions, and part performance for the quoted route.

  1. Material definition: resin family, grade, filler or reinforcement, color, additives, and blowing-agent route.
  2. Mold and gating review: cavity volume, projected area, wall section, ribs, bosses, venting, knit-line risk, and surface texture.
  3. Injection and foaming: shot size, melt temperature, pressure, screw control, and expansion behavior.
  4. Cooling and ejection: dimensional stability, cooling balance, warpage risk, and surface variation.
  5. Validation: weight, visual standard, dimensional report, mechanical tests, and service-life checks when the part needs them.

A sample report format can list actual recorded values such as 230 °C melt temperature, 40 °C mold temperature, 15 sec cooling time, 35 bar back pressure, 80 rpm screw speed, 0.2 mm dimensional change, 250 hr aging exposure, 48 hr chemical soak, 3.0 kg part mass, and density-reduction target. Those are example reporting fields, not recommended settings.

Structural Foam vs Conventional Injection Molding

Structural Foam vs Conventional Injection Molding — Meitu Engelhardt

A common comparison says structural foam uses lower pressure and supports larger, thicker plastic parts. That is often useful, but it is not the full decision. For a real part, the process route, morphology, wall section, material, high pressure or low pressure route, and load case should decide whether a foam route is better than conventional injection molding.

The Clamp-Tonnage Relief Map is a buyer shorthand, not a promise. Searches such as structural foam injection molding cost, structural foam injection molding manufacturers, and structural foam injection molding machine all point back to the same question: do lower packing pressure and clamp-force relief actually help this drawing after surface, load, and compliance checks?

Category Conventional injection molding Structural foam molding Buyer check
Pressure Higher packing pressure is common. Lower packing pressure may be possible. Confirm the quoted route and part size.
Clamp force Projected area can drive tonnage. Large parts may offer favorable economics at lower clamp force. Ask for tonnage calculation.
Wall thickness Thick walls can create sink and long cooling time. Thicker sections may be more practical. Review ribs, bosses, and transitions.
Weight Solid section uses more resin. Qualified vendor data often cites material or weight reduction. Treat ranges as part-specific.
Surface Better suited to fine cosmetic surfaces. Swirl, streaks, or texture variation may appear, or a secondary finish may be needed. Define the visible face standard.
Mechanical response Solid material response is easier to model. Cell structure, density, and skin thickness affect results. Test the real geometry.
Service life Still needs application testing. Creep, fatigue, temperature, UV, and chemicals may be decisive when the end use exposes the part to them. Name the exposure profile.
Compliance Driven by resin and end use. Adds blowing-agent and process documentation questions. Request SDS and declarations.
Best fit Smaller, thinner, cosmetic, precision parts. Large covers, housings, pallets, bins, panels, and thick structures. Match process to load and appearance.

Benefits, Limits, and Tradeoffs

Benefits, Limits, and Tradeoffs — Meitu Engelhardt

Structural foam molding can reduce resin use, lower molded-part weight, improve stiffness per unit weight, reduce sink in thick areas, and make very large plastic parts more feasible. Some vendor and cost-analysis sources discuss figures such as 8-15% weight reduction or material density around 60-80% of a comparable solid molded part, but those numbers should stay qualified. They depend on material, geometry, foam ratio, process route, and acceptance criteria.

5-Gate Skin-Core Fit Test

The Skin-Core Fit Test keeps the benefit claim tied to the actual part instead of treating every thick plastic component as a foam candidate.

  1. Geometry gate: Does the part have enough wall section for a cellular core to matter?
  2. Surface gate: Can the visible face accept texture, paint, grain, or a realistic cosmetic standard?
  3. Load gate: Are stiffness, impact, flexural, fatigue, creep, and fixture loads defined?
  4. Compliance gate: Are resin, blowing-agent, restricted-substance, and end-use documents defined?
  5. Validation gate: Will validation include testing under actual use conditions, not only short-term lab-coupon testing?

Important limits are not just swirl marks or tolerances. Academic foam injection molding literature also discusses mechanical-property deterioration, cell distribution, within-part variation, and the cost or complexity of methods used to improve appearance or performance. In practice, a good structural foam project starts with a drawing, expected loads, visual standard, resin target, production volume, and test plan.

Where Structural Foam Works Best

Where Structural Foam Works Best — Meitu Engelhardt

Structural foam works best when a part is large enough or thick enough for the skin-core structure to matter. Strong candidates include machine covers, equipment housings, industrial enclosures, bins, pallets, furniture shells, transport components, thick panels, and plastic parts where stiffness, part consolidation, lower weight, and practical mold fill matter more than a glossy face straight out of the tool.

Weak candidates are just as important. Tiny precision features, very thin decorative shells, polished Class A surfaces, food-contact components without material and additive clearance, and safety-relevant structures without service-life testing should not be pushed into structural foam only because the term sounds efficient. Geometry fit is only the first screen.

Cost Drivers and RFQ Data Buyers Should Prepare

Cost Drivers and RFQ Data Buyers Should Prepare — Meitu Engelhardt

Structural foam injection molding cost cannot be reduced to a universal part price. Tooling, part size, resin, annual volume, wall thickness, surface finish, texture, painting, inserts, sampling, testing, cooling balance, morphology review, and documentation all affect the quote. If a surface-improvement method adds mold complexity or cooling asymmetry, it can change both cost and warpage risk.

Use project-defined units rather than generic targets. A useful RFQ may state, for example, 3 mm wall thickness, 1.2 kg target mass, 1.5 m² projected area, 85 °C heat exposure, 1,000 hours UV exposure, 24 hr chemical exposure, 2 MPa test stress, 0.3 mm allowed drift, and weight-reduction target. Those are example fields, not default promises; they tell the molder what must be proven.

7-Point Structural Foam RFQ Evidence Stack

The Structural Foam RFQ Evidence Stack is the minimum packet a buyer should request before comparing quotes.

  1. 3D file, 2D drawing, nominal dimensions, critical tolerances, and projected area.
  2. Resin family, grade target, filler or reinforcement, color, and restricted-substance needs.
  3. Annual volume, batch size, required service life, and expected storage or operating environment.
  4. Surface standard: hidden face, textured face, painted face, or visible cosmetic face.
  5. Load case: static load, impact, flexural load, fastening, creep, fatigue, temperature, UV, or chemicals.
  6. Foaming route evidence: blowing-agent type, SDS, venting plan, cell morphology target, and sample inspection method.
  7. Compliance package: flammability, food-contact, electrical, outdoor, traceability, customer restricted-substance, or regional documents when applicable.
RFQ source Benchmark or comparison value Supplier proof to request
Traditional injection molding comparison State whether the alternative is standard injection molding, high-pressure injection, or solid parts made at different injection pressures. Ask why a high-pressure route is less suitable for this drawing.
Structural foam route statement Name the structural foam process, low-pressure process, and expected internal pressure effect. Request evidence that the route results in low stress and warpage in the parts.
Part family wording Separate structural foam molded samples from generic foam parts, structural foam parts, finished parts, durable parts, precision parts, and lightweight parts. Ask for photos and inspection records for structural foam molded parts similar to your geometry.
Skin and core evidence Confirm foam core, foam structure, solid outer skin, outer skin condition, and cell position near the wall of the mold. Request cut-section review after material is injected into a mold and expanded within the mold cavity.
Geometry and size benchmark Mark whether the project involves thick parts, thicker walls, complex parts, large parts, or creating large plastic products. Ask for wall-section review, fill simulation notes, and sample measurements.
Cost and material baseline Break out raw material, material cost, secondary finishing, tooling value, and whether the part can be made cost effectively. Compare resin saving against tooling, sampling, finishing, and validation cost.
Blowing-agent documentation State when the blowing agent expands, whether resin is mixed with a chemical additive, and which chemical blowing agent or foaming agent is used. Request SDS, restricted-substance declarations, and processing notes.
Supplier market check Compare molding companies, injection molding companies, and structural foam injection molding manufacturers on evidence, not only equipment lists. Ask for route-specific samples, reports, and customer-relevant inspection records.
Performance statement Tie production of parts and the manufacturing process to structural integrity, stiffness-to-weight, and stiffness-to-weight ratios. Treat the benefits of structural foam molding as testable claims, not default promises.
Application wording Use the phrase “structural foam products” only when molding is ideal for the drawing, the surface target is realistic, and the consistent surface requirement is defined. Request samples that show visible-face quality, weight, dimensions, and use-environment exposure.

For a measurement-ready RFQ, attach example fields such as 4 mm nominal wall, 1.6 m² projected area, 65 bar trial pressure, 180 sec cycle target, 0.25 mm flatness limit, and 72 hr exposure notes, clearly marked as project data rather than supplier guarantees.

How to Choose a Structural Foam Injection Molding Supplier

How to Choose a Structural Foam Injection Molding Supplier — Meitu Engelhardt

After the RFQ evidence stack is defined, a supplier should be evaluated on more than machine size. Engelhardt’s plastic injection molding service page describes 400+ plastic injection machines, up to 2,000-ton capacity, a 3,500 sqm mold workshop, and a structural foam subsection. Its company background also supports a manufacturing history dating to 2009 and quality-system positioning. That is useful first-party evidence for broad injection molding capacity.

It should still be scoped correctly. General machine count does not, by itself, prove structural-foam-specific production control. Ask for the route being quoted, venting strategy, material and blowing-agent controls, sample photos, weight data, dimensional reports, morphology inspection, surface standard, and test records for similar load cases.

If your project is still at the drawing-review stage, Engelhardt’s plastic injection molding services page is the right internal next step because it covers the broader injection molding capability around the structural foam decision.

Send a Structural Foam RFQ

Applications Across Industrial Plastic Parts

Applications Across Industrial Plastic Parts — Meitu Engelhardt

After supplier evidence is scoped, typical applications include industrial machine covers, utility housings, agricultural panels, pallets, bins, furniture shells, equipment enclosures, transport trays, and thick plastic covers. These parts often share three traits: enough section depth for a cellular core, enough projected area for clamp-tonnage economics to matter, and enough functional value to justify DFM and sampling.

End use can override the geometry signal. Electrical housings may require flammability evidence. Food-contact parts may need resin and additive clearance. Outdoor covers may need UV and weathering tests. Safety-relevant structures may need fatigue, impact, or traceability documentation. Chemical exposure may require property-retention data. Structural foam can still be the right route, but the application decides the proof package.

FAQ

How strong is structural foam?

Structural foam can be strong enough for large housings, pallets, equipment covers, and load-bearing panels when the geometry supports the load path. Strength should be judged by resin, cell morphology, skin thickness, density, rib layout, fasteners, creep, impact, flexural behavior, and environmental exposure. Do not approve the part based on the word “foam” alone; approve it based on samples and tests tied to the real drawing. For production approval, ask for fixture setup, repeat measurements, and environmental exposure results.

Can you injection mold foam?

Yes. In foam-assisted thermoplastic molding, the processor uses a chemical or physical foaming route to inject resin into a mold cavity. The material expands, forms cells, and can create a part with a cellular core and denser skin. It remains an injection molding process, but the mold design, pressure profile, surface expectation, blowing-agent documentation, and validation plan differ from standard solid molding. Clarify whether the supplier uses chemical foaming or physical foaming before tooling decisions.

What are the cons of structural foam injection molding?

The main cons are surface variation, tight-tolerance limits, process-route sensitivity, and validation burden. Some parts show swirl or texture variation. Some routes can lose tensile strength as foaming increases, even when stiffness per unit weight improves. Service-life factors such as creep, fatigue, temperature, UV, or chemicals may also matter. Buyers should request a part-specific test plan before approving production.

Is structural foam molding cheaper than conventional injection molding?

Sometimes, if resin savings and lower clamp-force economics outweigh tooling, sampling, finishing, validation, scrap risk, and annual-volume costs. Compare quotes with both part price and test evidence, because a cheaper molded shot can still lead to losses if surface or compliance work expands.

What parts are best suited for structural foam molding?

Best candidates are larger plastic parts where stiffness, wall thickness, part consolidation, and stable mold fill matter more than a polished cosmetic face. Examples include equipment housings, enclosures, bins, pallets, furniture shells, transport components, and thick ribbed panels with defined loads.

Conclusion

Structural foam injection molding can be a strong route for large and thick thermoplastic parts, but it is a fit decision rather than a slogan. Start with the drawing, route, material, surface standard, load case, service-life requirement, and compliance package. Then ask the supplier to prove the process on your part, not on generic foam molding claims.

To review whether your plastic part belongs in standard injection molding, structural foam, or another process, send the drawing to Engelhardt’s plastic injection molding services team or open the project form below.

Request DFM and RFQ Review

References & Sources

  1. A Review on Microcellular Injection Moulding – process-family, surface, and mechanical-property context.
  2. A Combined In-Mold Decoration and Microcellular Injection Molding Process – appearance improvement and mechanical/warpage tradeoff context.
  3. Investigation of the Foaming Morphology of Polypropylene – current foam-morphology and skin/core layer context.
  4. Fraunhofer process comparison publication – route-specific mechanical-property comparison context.
  5. Fraunhofer ICT: Foam Injection Molding (FIM) – technical route and thermoplastic foam injection molding context.
  6. UK HSE: substances that can cause occupational asthma – azodicarbonamide and polymer-expansion handling context.
  7. ASTM plastics standards catalog – plastics testing and injection-molded specimen context.
  8. AIP Conference Proceedings: foam injection molding of thermoplastic elastomers – thermoplastic foaming process context.
  9. US4255368A patent record – foamed thermoplastic article skin-core background.
  10. DFMA foam molding cost resource – qualified material-density and cost-driver context.
  11. Engelhardt company background and plastic injection molding service page – first-party capability and internal-link context.
]]>
https://meitu-engelhardt.com/structural-foam-injection-molding/feed/ 0
Complete Guide to Liquid Silicone Rubber (LSR) Injection Molding https://meitu-engelhardt.com/liquid-silicone-rubber-injection-molding/ https://meitu-engelhardt.com/liquid-silicone-rubber-injection-molding/#respond Mon, 22 Jun 2026 07:09:06 +0000 https://meitu-engelhardt.com/?p=3043

Updated June 2026 · Reviewed by the Guangdong Engelhardt Rubber & Plastic Technology technical team

Liquid silicone rubber injection molding is a thermoset process that forces a chilled, two-part platinum-cured silicone into a hot steel cavity, where it cures into a flexible, durable part in seconds. It’s the one silicone process that runs almost like a thermoplastic machine yet behaves chemically in reverse, and that single inversion shape everything about its tooling, defects, and economics. This guide explains how the LSR process actually works, how it differs from solid-rubber and thermoplastic molding, what its tooling and defects demand, and how to brief or vet a molder.

In one paragraph

Liquid silicone rubber (LSR) injection molding meters two liquid components (a base and a platinum catalyst) in a 1:1 ratio, blends them through a static mixer, and injects the cold mixture through a cold runner into a cavity held at roughly 150–210 °C, where vulcanization sets the part in about 20–60 seconds. Because the material is a low-viscosity thermoset rather than a melted thermoplastic, LSR fills thin walls, automates well, and wastes little runner material, but its low viscosity also makes flash control the central engineering problem.

Quick Specs, Liquid Silicone Rubber Injection Molding

Material 2-part platinum-cured LSR, mixed A:B = 1:1
Hardness (durometer) 5–80 Shore A (most parts 30–70)
Cavity (mold) temperature ≈150–210 °C (250–375 °F vulcanization range)
Injection pressure ≈200–1,200 psi (most work 300–700 psi)
Cure / cycle time ≈20–60 s for typical wall sections
Linear shrinkage ≈2–3% (mold sized to compensate)
Service temperature ≈ −50 to +200 °C (some grades to 250 °C)
Typical tolerance ±0.1–0.2 mm (ISO 3302-1 class dependent)
Best fit Mid-to-high volumes; cold-deck tooling for near-zero runner scrap

LSR sits inside the broader family of rubber injection molding processes, but it’s the only one that arrives as a pumpable liquid. That difference is why a shop can automate it lights-out, and why its mold has to fight flash at a scale no thermoplastic ever sees.

What Liquid Silicone Rubber Is, and Why It Molds “Backwards”

What Liquid Silicone Rubber Is, and Why It Molds "Backwards"

Liquid silicone rubber is a high-purity, two-part silicone elastomer with an inorganic siloxane backbone, alternating silicon and oxygen atoms carrying methyl and vinyl side groups. One component carries a platinum catalyst; the other carries a cross-linker (a methyl-hydrogen siloxane) plus an inhibitor. Mixed 1:1 and exposed to heat, the platinum drive an addition cure that permanently cross-links the chains. Unlike a thermoplastic, which melts and re-solidifies through a physical change, this is an irreversible chemical reaction, the part can’t be re-melted or reprocessed. As an LSR material, its defining material properties are flexibility, biocompatibility, and thermal stability, which carry through to every molded part it produces. A quick selection rule: if the part is a seal, membrane, or skin-contact surface, reach for a softer 20–40 Shore A grade; if it must resist wear or hold a structural edge, move to 60–70 Shore A, then confirm the choice with a sample, because durometer trades off against tear strength and sealing force.

Can silicone rubber be injection molded?

Yes, but only the liquid form. LSR’s low viscosity lets metering pumps push it through pipes and a static mixer, so it can be injection molded on automated equipment. Solid, gum-like high-consistency rubber (HCR) can’t flow this way and is instead processed by rubber compression molding or transfer molding. According to the encyclopedia entry on LSR injection molding, the cured material resists extreme temperatures, has excellent electrical insulation, and offers a hardness range of 5 to 80 Shore A.

💡 The Two-Heat Rule

Thermoplastic injection molding pushes a hot melt into a cold mold so the part freezes. LSR injection molding does the inverse: it pushes a cold liquid into a hot mold so the part cures. Hold that one idea and the rest of LSR — the chilled barrel, the cold runner, the flash behavior, the cure-time math — stops being a list of facts and becomes a single, predictable system.

That inversion is why LSR equipment chills the material right up to the gate and only lets it see heat inside the cavity. It’s also why platinum cure matters: platinum-cured silicone leaves no peroxide residue and delivers better tensile and tear strength and clarity than peroxide-cured silicone systems, one of the defining characteristics of LSR among silicone materials, and exactly why medical and food-contact liquid silicone rubber applications standardize on it. For a deeper material-versus-material breakdown, see our comparison of silicone versus conventional rubber.

How the LSR Injection Molding Process Works, Step by Step

How the LSR Injection Molding Process Works, Step by Step

LSR injection molding, also called silicone injection molding when described by material, is a continuous, metered, thermoset sequence rather than the melt-and-freeze loop of plastics. Unlike a standard silicone molding setup that works solid gum, the injection molding machine here handles a pumpable liquid. Here’s the full chain from drum to demold:

  1. Metering, two metering pumps draw the base and catalyst from their pails or 55-gallon drums and hold them in a constant 1:1 ratio. A color pigment can be injected here.
  2. Mixing, a static mixer blends the two streams into a homogeneous compound just before injection, because the cure clock start the instant the components meet.
  3. Chill and hold, mixed material is kept cool in the metering section and cold runner so it stays liquid until the cavity.
  4. Injection, on an LSR injection molding machine, a shut-off nozzle open and the screw acts as a piston, driving the compound through the cold runner into the heated mold cavities. A positive shut-off valve stops the screw from being pushed back and overfilling the barrel.
  5. Curing, inside the cavity (≈150–210 °C) the platinum addition reaction cross-links the silicone in roughly 20–60 seconds, depending on wall thickness.
  6. Demolding, the mold open and a robot or chute removes the parts. An optional post-cure in an oven (commonly around 175 °C) drives off volatiles and optimizes tensile, modulus, and durometer for critical parts.

How do you mold liquid silicone rubber in practice?

In practice the molder tunes three levers, injection pressure, vulcanization temperature, and vulcanization time, against part geometry. The LSR tool is housed in an LSR-specific injection molding press built for precise shot control, which is what separates liquid silicone injection molding from a converted plastic injection molding press. A landmark process-design study in Medical Plastics & Biomaterials documents injection pressures of roughly 200–1,200 psi (most applications run 300–700 psi) and vulcanization temperatures of 250–375 °F, the heart of the curing process. Note the distinction many guides blur: those are injection pressures into the cavity. The much higher 500–5,000 psi figure you’ll see elsewhere is the supply/metering pressure used to pump high-durometer material to the machine. Confusing the two leads engineers to badly over-spec a press.

“Liquid silicone rubber is slightly compressible, injection molding with this type of material is somewhat like molding a spring. Higher injection pressure results in lower part shrinkage, and higher vulcanization temperature causes greater shrinkage.”

Virgil J. Johnson, senior industries specialist, Dow Corning Rubber Business S&T (23+ years in silicone processing, 4 process patents)
📐 Engineering Note

A worked cycle estimate: cycle time ≈ fill + cure + demold. A 3 mm wall section at a 180 °C cavity cures in roughly 25–35 s; add ~5 s fill and ~5 s demold and you’re near a 35–45 s cycle. Double the wall to 6 mm and cure time more than doubles, because heat has to conduct to the core, which is why thick cross-sections are the enemy of LSR throughput.

One under-discussed shop trick: a 5–10 °F temperature difference between the two mold halves makes the part stick to the cooler side, which controls which half it demolds from. Push the variance too far, though, and you accelerate guide-pin wear. For the cross-process view, compare this loop with our breakdown of compression molding versus injection molding.

LSR vs HCR vs Conventional Rubber Injection Molding

LSR vs HCR vs Conventional Rubber Injection Molding

A common, and costly, assumption is that LSR is “just liquid HCR.” It isn’t. The cure chemistry, the feed form, the automation, and the scrap economics all diverge across these molding methods. High consistency rubber (HCR) is a solid, gum-like silicone that’s often (but not always) peroxide cured; it’s slow to cure, less dimensionally repeatable, and frequently needs a post-cure. LSR’s pumpable, low-viscosity nature is what unlocks fully automated, near-flashless molding and lower material waste than working solid gum. It also differs from traditional thermoplastic injection molding: where plastic injection melts and re-freezes a polymer, LSR chemically cures molded silicone in place, so traditional injection molding intuitions about cooling and shrinkage don’t transfer directly. The LSR vs HCR vs Thermoplastic 3-Way Process Ladder below maps the practical trade-offs.

LSR vs HCR vs thermoplastic injection molding: LSR is the only pumpable, platinum-cured, fully-automatable option, curing in ~20–60 s.
Dimension LSR (liquid silicone) HCR (solid silicone) Thermoplastic
Feed form Two-part liquid, A:B 1:1 Solid gum / preform Solid pellets
Cure / set Platinum addition cure (thermoset) Heat + pressure cure (thermoset) Melt & cool (no cure)
Mold temperature Hot cavity (~150–210 °C) Hot platens Cooled mold
Automation High (lights-out capable) Low–medium (labor-intensive) High
Runner scrap Near-zero with cold deck Moderate Recyclable sprue/runner
Reprocessing Not reprocessable Not reprocessable Re-meltable
Best volumes Mid–high; precision/medical Low–medium; large parts High; rigid parts

Process characteristics synthesized from trade and standards literature; see References.

Here’s the decision rule that follows from the ladder: choose LSR when you need flexibility, biocompatibility, or extreme-temperature performance in silicone rubber parts you’ll run in volume; choose HCR for large, simpler cross-sections at lower volume; choose a thermoplastic when the part must be rigid and re-meltable. In short, how liquid silicone rubber injection molding works is fundamentally a curing problem, not a cooling one. For the silicone-specific cut of this question, see our deeper pieces on LSR vs HCR and LSR vs TPE.

LSR Tooling and Cold-Runner Mold Design

LSR Tooling and Cold-Runner Mold Design

LSR tooling is where the “Two-Heat Rule” cashes out into steel. Because the material must stay cold until the cavity, the mold uses a cold runner (cold deck)a chilled manifold that injects directly into the part with little or no cured runner waste. Its cavity runs hot. A good cold runner is expensive compared with conventional hot-runner tooling, but it’s what makes near-zero runner scrap possible. The patent record reflects how much engineering goes into this: EP 1293323 B1 describes injecting LSR through a cold-runner system with backflow prevention, and KR 101983242 B1 covers a shut-off nozzle that stops leakage and overfill.

Mold steel is hardened stainless because LSR is mildly abrasive and the tool see heat cycling. Unlike plastic molds, LSR cavities generally don’t need a high-polish finish or draft angles, since the cured rubber releases without distortion. Venting is the make-or-break detail: Plastics Technology’s tooling primer stresses that LSR’s very low viscosity forces extremely tight, well-placed vents. Typical vent depth for LSR runs about 0.0003–0.0005 in.; a peripheral tear-tab vent may run 0.002–0.005 in.

📐 Engineering Note — shrink compensation

Because LSR shrinks ≈2–3% as it cures, the cavity must be cut oversize. To hit a finished 50.0 mm dimension at 2.5% shrink, cut the cavity at roughly 50.0 ÷ (1 − 0.025) ≈ 51.28 mm. And remember the counterintuitive lever from the process data: raising injection pressure lowers shrinkage (≈3.05% at 200 psi falling to ≈2.28% at 400 psi), so suppliers publish a shrink range, not a single number. Tie your final tolerances to an ISO 3302-1 class, M1 is the fine grade, M4 the coarse, and confirm the achievable band against the part geometry.

For the dimensional side of this, our guide to injection molding tolerances and our LSR design guidelines go deeper on wall-thickness, gating, and undercut rules. In our own 3,500 m² mold workshop, we cut LSR cold-deck tooling on Makino and Roeders machines and validate shrink on first articles before release, because a mold sized to the wrong shrink number is a re-cut, not a tweak.

Common LSR Molding Defects and How to Prevent Them

Common LSR Molding Defects and How to Prevent Them

LSR’s low viscosity is its gift and its curse: it fills micro-features beautifully and flashes into any gap just as easily. As one silicone moldmaker put it bluntly on a molding forum, “you won’t achieve flash-free parts with 3D-printed molds, silicone flashes at about .00015 in.” Real flash control is a steel-and-venting discipline, which is why machine builders patent hardware specifically to stop it; patent KR 101983242 B1 describes a shut-off nozzle whose whole job is to prevent the leakage and overfill that drive flash. The 5 LSR Defects Root-Cause Table maps the failures we see most often to their cause and fix.

Five common liquid silicone rubber injection molding defects, root causes, and fixes.
Defect Root cause Fix
Flash Low viscosity escaping the parting line; worn/loose tooling; overpacking Tighten parting line and clamp; verify shot size; precision-vent (0.0003–0.0005 in.)
Voids / air traps Trapped air with nowhere to vent Fill to compaction, locate the void, add a vent there; use vacuum/tear-tab venting
Short shot Insufficient fill; premature cure in the runner; cold spots Raise injection pressure/rate; verify cold-runner temperature; re-balance gates
Under-cure / off-ratio A:B ratio drift from cured build-up in check valves Watch A- and B-side pressure gauges for unequal needle response; service the impingement block
Backrinding at the gate Expanding elastomer forced out of the gate on large cross-sections at high temp Move the gate to a thinner section, or lower injection pressure / vulcanization temperature

Root causes per LSR process-design literature and field reports; see References.

What are the disadvantages of LSR?

Here are the honest limitations: LSR demands specialized, costly cold-runner tooling and an LSR-specific press; flash is an ever-present finishing risk that may require trimming; a post-cure step is often needed for critical mechanical or food/medical properties; and the material can’t be reprocessed. None of these are deal-breakers, but they explain why LSR rewards volume and a disciplined molder, and why a low-volume one-off can be cheaper in another process. In our on-site quality lab we screen first articles for flash, voids, and durometer before a tool is released to production, because the cheapest defect is the one caught before the run start.

Where LSR Injection Molding Wins, Applications by Industry

Where LSR Injection Molding Wins, Applications by Industry

Among rubber products made by molding, LSR injection molding parts earn their place wherever a part must be flexible, biocompatible, electrically insulating, or stable across extreme temperatures. Its biocompatibility and food-contact credentials are not marketing claims, they are codified. U.S. FDA regulation 21 CFR 177.2600 explicitly lists silicone elastomers containing methyl and vinyl groups among rubbers permitted for repeated food contact, subject to extraction limits (no more than 20 mg/in² total extractives in water over the first 7 hours). For implantable and device contact, materials are screened to USP Class VI and qualified at the device level under ISO 10993.

Liquid silicone rubber injection molding applications by industry and the property driving each.
Industry Typical LSR parts Property driver
Medical / life sciences Seals, valves, diaphragms, drug-delivery parts, wearables Biocompatibility (USP Class VI / ISO 10993), sterilizable
Automotive O-rings, connector and sensor seals, grommets, bellows Heat/UV resistance; under-hood & EV durability
Baby & food contact Bottle nipples, spatulas, bakeware, seals FDA 21 CFR 177.2600, tasteless/odorless
Consumer / wearable Watch bands, ear tips, button covers, soft-touch grips Skin-safe, flexible, overmoldable
Electrical / industrial Insulators, connector seals, sensing membranes Dielectric insulation; chemical resistance

Here’s how that plays out on the floor. A diagnostic-device team once brought us a duckbill check valve that had been compression molded in HCR, long cycles, manual flash trimming, and cracking pressure that drifted lot to lot until parts failed inspection. Re-engineered for LSR injection molding in a 40 Shore A platinum grade, the same valve held its cracking pressure inside a tight band across a six-figure annual run, demolded automatically, and cleared USP Class VI. That’s the recurring pattern: when a flexible part has to hit a regulatory bar and a repeatable spec at volume, LSR is usually what keeps it in production instead of getting re-sourced.

Because LSR is naturally translucent and easily pigmented, the same process turn out colorful, custom molded products without secondary painting. Self-adhesive LSR grades extend the process into two-shot and silicone overmolding, bonding a soft silicone face directly onto a rigid plastic or metal insert without primers or secondary gluing, a soft button face over a nylon housing is the classic example.

What LSR Injection Molding Costs, and the 4-Gate Suitability Screen

What LSR Injection Molding Costs, and the 4-Gate Suitability Screen

LSR cost has two layers: a one-time tooling investment (the cold-deck mold, often the single largest line item and the lengthiest step) and a per-part price set by cavitation, material grade, durometer, cycle time, and any post-cure or secondary operations. Equipment choices matter too, all-electric presses, prized for cleanroom work because they avoid hydraulic oil, cost at least 25% more than a comparable hydraulic machine. Because tooling is front-loaded, LSR’s unit economics improve sharply with volume, it rewards high-volume production and longer production runs, which is why it’s rarely the cheapest route for a true one-off. Its flip side is precise molding of complex silicone parts at a per-piece cost that falls as quantities climb. Our guide to custom rubber molding cost breaks the drivers down further.

The 4-Gate LSR Suitability Screen

Run a candidate part through four gates before you request a quote. Pass all four and LSR is almost certainly the right process; fail one and rethink the design or the process.

  1. Geometry gate. Are walls thin and reasonably uniform, with flexible or thin-membrane features? LSR loves what rigid plastics struggle with. Thick, chunky cross-sections fight cure time.
  2. Volume gate. Will you run enough parts to amortize cold-deck tooling? Mid-to-high volumes pay it back; tiny runs rarely do.
  3. Material/regulatory gate. Do you need biocompatibility, food contact, extreme-temperature, or electrical-insulation performance? That’s LSR’s home turf.
  4. Tolerance gate. Can the part live within an ISO 3302-1 class (roughly ±0.1–0.2 mm typical) given 2–3% shrink? If you need tighter-than-M1 precision, validate feasibility first.

Is LSR injection molding suitable for low-volume production?

LSR low-volume runs can work, but with eyes open. Many medical and consumer programs use LSR during late-stage prototyping to produce near-production parts for clinical trials and pilot runs. Watch the tooling bill, though: because the cold-deck mold dominates upfront cost, low volumes carry a high per-part tooling burden. If you only need a handful of parts, ask your molder whether a simpler bridge tool or an alternative process serves the milestone better, then switch to a production LSR tool when volume justifies it.

How to Choose an LSR Injection Molding Partner

How to Choose an LSR Injection Molding Partner

Choosing a molder matter more in LSR than in most processes, because flash control, cold-runner tooling, and ratio discipline are shop-floor skills, not catalog items. Use this checklist when you vet an LSR injection molding supplier:

  • ✔ Quality systems. ISO 9001 at minimum; ISO 13485 for medical, IATF 16949 for automotive; FDA / LFGB / NSF for food and medical contact.
  • ✔ In-house tooling. Can they cut and correct cold-deck molds themselves? Outsourced tooling slows every shrink re-cut.
  • ✔ Automation & cleanroom. Lights-out cold-deck cells and, for medical, ISO-classified cleanrooms reduce contamination and cost at volume.
  • ✔ On-site testing. A real metrology and material lab to verify durometer, dimensions, and extractables before release.
  • ✔ Capacity headroom. Enough presses and mixing capacity to scale without re-sourcing mid-program.

For context on what that capacity looks like in practice: our plant runs around 700 injection machines alongside two 55-litre silicone mixing lines (about 3,000 tonnes of silicone throughput a year), a 3,500 m² in-house mold workshop turning out 500-plus mold sets annually, and an on-site chemical and physical testing lab, under ISO 9001, IATF 16949, FDA, LFGB, and NSF. That vertical integration is what lets a shop fix a flash or shrink problem at the tool instead of in the quote. To see where LSR fits among our wider LSR injection molding services, start there.

Industry Outlook, Where LSR Injection Molding Is Heading (2026 and Beyond)

Industry Outlook, Where LSR Injection Molding Is Heading (2026 and Beyond)

For buyers in 2026, the decision that matters is not whether LSR will grow, it is who can serve where it is growing. Two demand drivers are pulling LSR injection capacity toward automated, certified shops. First, automotive electrification is multiplying the need for high-temperature sensor, connector, and busbar seals that survive under-hood and battery-pack environments, an application set LSR is purpose-built for, and the reason automotive already dominates liquid-injection-molding demand. Second, medical-device programs keep tightening biocompatibility and cleanliness expectations, which favors molders with cleanrooms, ISO 13485, and validated USP Class VI / ISO 10993 material flows.

Technologically, the trend is toward fully-automated cold-deck cells and on-machine cure-rate control, which lower unit cost at volume and widen the gap between automated and manual shops, the steady stream of cold-runner tooling patents (such as CN 218462821 U) tracks that automation push. Market analysts size the global LSR market at roughly US$3.6 billion in 2026 with high-single-digit annual growth through the early 2030s, useful as directional background only, not as a sourcing reason. Actionable takeaway: if you’re planning a 2026–2027 program in medical or EV components, weight your supplier shortlist toward shops that already run automated LSR cells with the right certifications, because that capacity is where the demand is concentrating. For the upstream view, our liquid silicone rubber molding guide covers material grades and DFM in more depth.

Frequently Asked Questions

Q: What is the purpose of liquid silicone rubber?

View Answer
Liquid silicone rubber provides a flexible, durable, biocompatible elastomer that performs across extreme temperatures (roughly −50 to +200 °C), resists chemicals and UV, and insulates electrically. Its purpose in manufacturing is to deliver precise, high-volume flexible parts — seals, valves, membranes, soft-touch grips, and medical components — that rigid plastics and many other elastomers cannot match, while meeting food-contact and medical biocompatibility standards.

Q: How do you mold liquid silicone rubber?

View Answer
Two metering pumps draw the base and catalyst in a 1:1 ratio, a static mixer blends them, and the cold mixture is injected through a cold runner into a heated cavity (≈150–210 °C). There the platinum addition reaction vulcanizes the part in about 20–60 seconds, after which a robot demolds it and an optional oven post-cure optimizes its properties. This whole loop runs the reverse of thermoplastic molding: cold material into a hot mold.

Q: Can LSR be used for multi-component or two-shot (overmolded) parts?

View Answer
Yes. Self-adhesive LSR grades are designed for two-shot and overmolding, bonding silicone directly to a rigid plastic or metal insert without primers or secondary gluing. This is how soft-touch grips, sealed housings, and silicone-over-plastic buttons are produced in a single automated cell, eliminating downstream assembly.

Q: How do LSR production speeds compare to other molding methods?

View Answer
LSR cures faster than compression or transfer molding of solid silicone and supports lights-out automation, giving short cycles (often 20–60 s) and high throughput — though thick walls slow cure time.

Q: Is LSR injection molding more cost-effective for low volume?

View Answer
LSR low-volume work is usually not the cheapest option, because cold-deck tooling is the dominant upfront cost. LSR pays off at mid-to-high volume; for a handful of parts, a bridge tool or alternative process is often cheaper.

Q: Which LSR durometer should I choose?

View Answer
LSR is available from about 5 to 80 Shore A; most parts land between 30 and 70. Softer grades suit seals, membranes, and skin-contact parts; firmer grades suit structural or wear surfaces. Pick durometer against the part’s sealing force and feel, then confirm with a sample — see our LSR design guidelines.
Have an LSR part to quote?

Run it through the 4-Gate Screen, then send us your drawing for a free design-for-manufacturability review and shrink check.

Request a DFM Review →

About This Guide

We wrote this LSR injection molding guide from the molding floor, not the brochure. The process windows, shrink-compensation math, and defect root-causes here reflect daily practice across our cold-deck LSR cells, in-house mold workshop, and on-site quality lab, cross-checked against FDA, ISO, and published silicone process-design literature. Reviewed by the Guangdong Engelhardt Rubber & Plastic Technology technical team.

References & Sources

  1. 21 CFR 177.2600, Rubber articles intended for repeated useU.S. FDA / Electronic Code of Federal Regulations
  2. Injection molding of liquid silicone rubberWikipedia
  3. Injection Molding With Liquid Silicone Rubbers: Using Process Design to Maximize ResultsMedical Plastics & Biomaterials (MD+DI)
  4. Getting Into LSR, Part IV: How LSR Tooling Is DifferentPlastics Technology
  5. EP 1293323 B1, Method and device for injection moulding of liquid silicone rubberGoogle Patents
  6. KR 101983242 B1, Shut-off nozzle for LSR injection moldingGoogle Patents
  7. ISO 3302-1:2014, Rubber, tolerances for products, Part 1 (dimensional tolerance classes M1–M4); USP Class VI & ISO 10993 (biocompatibility) — standards referenced in text

Related Articles

]]>
https://meitu-engelhardt.com/liquid-silicone-rubber-injection-molding/feed/ 0
EPDM Rubber Molding: Properties, Processes & Uses (2026) https://meitu-engelhardt.com/epdm-rubber-molding-guide/ https://meitu-engelhardt.com/epdm-rubber-molding-guide/#respond Thu, 18 Jun 2026 06:54:41 +0000 https://meitu-engelhardt.com/?p=2931

EPDM rubber molding is the process of shaping ethylene propylene diene monomer (EPDM) — a weather-resistant synthetic rubber, into finished parts by injection, compression, or transfer molding and then vulcanizing them under heat and pressure. Engineers reach for it when a seal or gasket has to survive ozone, UV, water, and steam for decades, yet the same material can fail in months if it ever touches petroleum oil. This guide explains the chemistry, the molding processes, how EPDM compares with other elastomers, and how to write a spec that actually gets quoted correctly.

In short: EPDM rubber molding shapes ethylene propylene diene monomer into custom parts, mainly seals, gaskets, and grommets, using injection, compression, or transfer molding. EPDM resists ozone, UV, weather, hot water, and polar fluids, but swells badly in petroleum oils and fuel, so it’s chosen by operating environment rather than by default.

Key Points

  • A single petroleum, fuel, or aromatic-oil contact point disqualifies EPDM no matter how well it scores elsewhere, we call this the Oil-Line Veto.
  • EPDM’s weather resistance comes from a saturated polymer backbone that gives ozone nothing to attack, the reason single-ply EPDM roofing membranes are documented at 38+ years of field service.
  • The cure system (sulfur vs peroxide) can swing heat life and compression set by roughly an order of magnitude, it’s a real spec decision, not a factory detail.
  • Process choice (injection, compression, transfer) follows annual volume and geometry; injection’s economics typically cross over near 5,000 units.

Quick Specs: Molded EPDM Rubber

Material EPDM (ethylene propylene diene monomer), a synthetic rubber / elastomer
Service temperature ~−40 °C to +120 °C (standard sulfur cure); up to ~−50 °C to +150 °C continuous with peroxide cure / specialist grades
Hardness 30–90 Shore A (60–70 most common)
Cure systems Sulfur-cured or peroxide-cured
Molding processes Injection, compression, transfer molding
Tolerance grades RMA A1 (high precision) to A4 (basic / commercial)
Classification ASTM D2000 line call-out (EPDM lines typically BA, CA, DA)
Resists Ozone, UV, weather, water, steam, polar fluids (glycol, brake fluid)
Avoid Petroleum oils, fuel, aromatic and chlorinated hydrocarbons (severe swell)

What Is EPDM Rubber?

What Is EPDM Rubber?

EPDM is a synthetic rubber produced by polymerizing ethylene and propylene with a small amount of a diene monomer that supplies the cross-linking sites needed for vulcanization. What sets it apart from natural rubber is its saturated main chain: the ethylene-propylene backbone carries no carbon, carbon double bonds, so ozone and UV have nothing to attack there. Per the technical description of EPDM rubber, that’s why it outperforms diene rubbers outdoors.

The Saturated-Backbone Rule

Here’s a rule of thumb you can apply on sight: weather resistance lives in the backbone, oil resistance lives in the side groups. Ozone cracks ordinary rubber by snapping the unsaturated double bonds in its polymer chain under tension. EPDM’s saturated backbone gives ozone no double bonds to break, so it ages slowly in sunlight and weather. The proof is on millions of rooftops, a 2025 field survey found single-ply EPDM roofing membranes still performing after 38+ years of service, with newer accelerated-aging work projecting even longer service life. The same chemistry that makes EPDM a 40-year roof makes it the default rubber material for outdoor seals and weatherstrip.

The catch is the flip side of that rule: a saturated, non-polar backbone is also chemically similar to petroleum oils, so non-polar oils dissolve into EPDM and make it swell. Among the wide range of natural and synthetic rubber families an engineer can choose from, and the full span of natural rubber and synthetic rubber chemistries, EPDM sits at the weather-resistant, oil-averse end. This guide to EPDM rubber returns to that trade-off repeatedly, because it drives nearly every go/no-go decision.

EPDM Properties & Spec Data

EPDM Properties & Spec Data

For an RFQ or datasheet, these are the EPDM numbers that matter. Treat the ranges as compound-dependent: a soft 40 Shore A weatherstrip and a hard 80 Shore A bushing are both EPDM but behave very differently, and the cure system shifts the temperature ceiling. Where a value is a single-source figure, it’s qualified accordingly.

Typical molded EPDM rubber properties: continuous service runs roughly −40 °C to +150 °C across 30–90 Shore A, with strong ozone and water resistance but poor oil resistance.
Property Typical value Note
Continuous service temp ~−40 °C to +120 °C sulfur; to ~+150 °C peroxide Ceiling set by cure system
Hardness 30–90 Shore A 60–70 most common for seals
Tensile strength ~500–3,000 psi (3–21 MPa) Varies widely with compound and filler
Compression set Low with peroxide cure (single-digit % at 100 °C achievable) Critical for static seals
Ozone / UV / weather Excellent The headline strength
Water / steam / glycol Excellent Including hot water and brake fluid
Petroleum oil / fuel Poor (severe swell) Disqualifying — see Oil-Line Veto

Property ranges compiled from elastomer datasheets and the ASTM D2000 classification framework; values vary by compound and supplier.

EPDM holds these properties across the extreme temperatures and weathering that harden or crack lesser rubbers, and it is also a good electrical insulator, which is why it shows up in cable accessories and electronic enclosure seals. Because EPDM rubber compounds vary so widely with filler and cure system, two parts both labelled EPDM can perform very differently, a quality rubber result depends on the specific compound, not the family name. Because the property window is so wide, buyers do not specify “EPDM” alone, they specify a compound through an ASTM D2000 line call-out that fixes the type (heat resistance) and class (oil resistance). We break that call-out down in the spec section below.

EPDM vs Other Elastomers: Matching Material to Environment

EPDM vs Other Elastomers: Matching Material to Environment

Choosing between EPDM and neoprene, nitrile, Viton (FKM), silicone, or natural rubber comes down to one question: what does the part actually touch and how hot does it get? The table below uses concrete behavior rather than vague High/Medium/Low ratings.

EPDM vs neoprene, nitrile, Viton, and silicone: EPDM wins on weather and water at low cost but loses on any petroleum-oil contact.
Elastomer Ozone / UV Water / steam Petroleum oil Relative cost Best fit
EPDM Excellent Excellent Poor Low Outdoor / water / weather seals
Neoprene (CR) Good Good Moderate Low–mid General-purpose, mild oil
Nitrile (NBR) Poor Fair Excellent Low Fuel / oil seals
Viton (FKM) Excellent Good Excellent High (~8–10× EPDM) Hot oil / chemical / fuel
Silicone (VMQ) Excellent Good (dry heat) Poor High Extreme temp, food/medical
Natural rubber (NR) Poor Good Poor Low Abrasion, dynamic, indoor

Cost multiplier for Viton vs EPDM reported by elastomer suppliers; resistance ratings reflect general compound behavior.

Weatherability-per-Dollar. Silicone and EPDM both shrug off ozone and UV, but silicone compound costs far more and tears more easily. Normalize weather resistance by compound cost and EPDM wins decisively, which is exactly why it, not silicone, became the default outdoor and synthetic rubber sealing material. That mix of weather resistance and low compound price makes molded EPDM one of the most cost-effective sealing elastomers in production. Where you genuinely need silicone’s temperature extremes or food-grade purity, our liquid silicone rubber injection molding line covers that envelope instead.

⚠️ The Oil-Line Veto

Run every other score — temperature, weather, cost — and then apply one override: if the part will ever contact petroleum oil, fuel, or aromatic hydrocarbons, EPDM is out. One field-analysis report measured EPDM swelling more than 100% by volume in mineral oil. Switch the spec to nitrile (NBR) for ambient oil or fluoroelastomer (Viton/FKM) for hot oil before tooling is cut, not after the first failed batch.

Which Is Better, Viton or EPDM?

Neither is “better” outright, they solve opposite problems. Choose EPDM when the part faces weather, hot water, steam, or brake fluid and never sees oil; it costs a fraction of Viton and resists those fluids just as well. Choose Viton (FKM) when the part faces fuel, hot oil, or aggressive chemicals, and accept the 8–10× material-cost premium. A common mistake is specifying Viton “to be safe” in a hot-water duty where EPDM would last as long for far less.

How EPDM Is Molded: Injection, Compression & Transfer

How EPDM Is Molded: Injection, Compression & Transfer

EPDM isn’t poured as a liquid like some casting rubbers. A solid, uncured gum compound is heated until it flows, forced into a closed steel mold, and vulcanized, cross-linked, under heat and pressure. That basic manufacturing process is shared by three molding methods.

Where they differ is tooling, cycle time, and the volumes where they make economic sense. The right process for EPDM follows your annual volume and part geometry, not the material, and yes, it’s entirely possible to injection mold EPDM, just as it can be compression or transfer molded.

EPDM molding processes compared: compression suits low volume, injection takes over near 5,000 units, and transfer molding handles rubber-to-metal bonded inserts.
Process Best volume Tooling cost Cycle time Best part profile
Compression Low / prototype Lowest Longest Large, simple, thick gaskets
Transfer Low–mid Mid Mid Rubber-to-metal bonded inserts
Injection High (~5,000+ units) Highest Shortest High-volume precision seals

Volume crossover reflects Engelhardt quoting practice and is corroborated by independent molding cost analyses; exact break-even shifts with part size and tooling complexity.

Can EPDM Be Injection Molded?

Yes, EPDM is routinely injection molded. Heated EPDM compound is injected under high pressure into a closed multi-cavity metal mold and vulcanized in place; published patent data describes molded EPDM cured at roughly 185 °C in about 6 minutes under ~60 bar. Granted molding patents confirm these process windows. The EPDM injection molding process gives the tightest tolerances and shortest cycle times, which is why it dominates high-volume automotive and appliance sealing once you clear the tooling break-even.

Transfer molding earns its place when a part need rubber bonded to a metal insert, a captive bushing, a bonded gasket, or a valve seat. For lower volumes, compression and transfer molding reach the same cured part with simpler, lower-cost tooling. In transfer molding the compound is forced from a transfer pot through runners onto a pre-placed, adhesive-coated metal part, and a transfer-molded EPDM-to-metal gasket patent documents exactly this construction. For a deeper walk-through of each method, see our rubber molding process overview. EPDM also shares much of its tooling logic with silicone, covered in our silicone compression molding guide.

A costly and common mistake is running compression molding for a high-volume seal: the longer cure cycle quietly inflates per-part cost until injection tooling would have paid for itself several times over. In Engelhardt’s in-house mold shop, 40+ vulcanizing presses backed by CNC and EDM tooling, the break-even near 5,000 units is exactly where we move a part from a single-cavity compression tool to a multi-cavity injection mold.

Sulfur vs Peroxide Cure: Why Curing Decides Part Life

Sulfur vs Peroxide Cure: Why Curing Decides Part Life

The cure (vulcanization) system is the most under-specified decision in EPDM rubber molding, and it quietly sets how long a seal lasts. Two systems dominate. Sulfur cure is faster, cheaper, and easier to bond, but its sulfur cross-links break down at sustained high heat. Peroxide cure forms stronger carbon, carbon cross-links that give markedly better heat resistance and lower compression set, the property that keep a static seal pushing back against its flange years later.

How big is the gap? Suppliers and a rubber industry technical notebook on cure-system selection report that peroxide-cured EPDM can deliver roughly an order-of-magnitude longer service life than sulfur cure at elevated temperature, along with better compression set retention. The trade-off: peroxide compounds cost more, cure slower, and bond less readily to metal, which is why cure choice and process choice are linked. A high-quality EPDM compound is defined as much by its verified cure as by its raw rubber compounds, and a well-made EPDM rubber compound holds its sealing force long after a poorly cured one has relaxed.

“An under-cured EPDM seal is the failure we watch for most, because it passes the wrong test. It can clear a first-article visual and dimensional check and still lose sealing force about a year into service as the cross-link network finishes reacting under heat. That is why we verify cure rate and scorch time on a moving-die rheometer for every compound batch, not just at part-approval.”

Engelhardt Rubber Engineering Team, compound & cure verification
📐 Engineering Note

Specify peroxide cure when the part sees continuous heat above ~120 °C or must hold a tight compression-set limit (for example a static face seal that can’t relax). Specify sulfur cure for cost-sensitive weatherstrip and dynamic parts at moderate temperature, or where strong rubber-to-metal bonding is the priority. State the cure system on the drawing, don’t leave it to the molder’s default.

Molded EPDM Parts & Where They’re Used

Molded EPDM Parts & Where They're Used

Molded EPDM shows up anywhere a part must hold back weather, water, or steam for years. Common molded EPDM rubber products include:

  • ✔ Seals, O-rings, and face gaskets
  • ✔ Grommets, bushings, and isolators
  • ✔ Diaphragms, bellows, and valve seats
  • ✔ Weatherstrip, washers, and bonded rubber-to-metal parts
Where molded EPDM parts are specified, by industry and the property that earns the spec.
Industry Typical EPDM parts Why EPDM
Automotive Weatherstrip, coolant/brake seals, body grommets Ozone + glycol/brake-fluid resistance
HVAC / appliance Steam and hot-water seals, gaskets Hot water and steam stability
Plumbing / potable water Valve seals, fitting gaskets, O-rings Water resistance + NSF/FDA compounds
Electrical / electronic Enclosure seals, cable grommets Weather sealing + electrical insulation

Across these outdoor applications and industrial EPDM uses, the common thread is durability: molded rubber products such as EPDM gaskets, O-rings, and weatherstrip survive where the environment is wet, hot, or sun-exposed. The wide range of applications for EPDM, from automotive EPDM rubber parts to plumbing valve seals, is why high-volume production runs of molded rubber parts so often specify it. For buyers comparing rubber parts and products, the common applications of EPDM rubber and the broader set of EPDM rubber applications cluster wherever weather and water resistance outrank oil resistance, and that durability is what EPDM offers as molded rubber components.

For application-specific detail, see our guides to automotive rubber parts types and materials and electrical and electronic rubber parts.

Is EPDM Safe for Potable Water or Food Contact?

Yes, but only with a certified compound, not “EPDM” in general. Potable-water parts must use an EPDM compound certified to NSF/ANSI 61 for drinking-water system components, and repeated food-contact parts must meet FDA 21 CFR 177.2600 for rubber articles. The base polymer is suitable; the certification is about the full formulation (fillers, plasticizers, cure residues). Always request the specific compound’s certification documents, because a generic EPDM grade is not automatically compliant.

When NOT to Specify EPDM

When NOT to Specify EPDM

The advantages of EPDM rubber, weather, ozone, water, and steam resistance at low cost, make it easy to over-trust. The benefits of using EPDM rubber are real, but choosing the right EPDM rubber means respecting where those advantages of EPDM stop. It will fail, sometimes fast, in the wrong environment. Disqualify EPDM before tooling when any of these are true:

✔ Specify EPDM when

  • Outdoor, ozone, UV, or weather exposure
  • Hot water, steam, glycol, or brake fluid
  • Cost-sensitive weather seals at scale
⚠ Avoid EPDM when

  • Any petroleum oil, fuel, or grease contact
  • Aromatic or chlorinated solvents
  • Sustained heat well above the cure ceiling
⚠️ Common misconception: “weather-resistant” means “chemical-proof”

It does not. Field engineers regularly trace a swollen “weather seal” not to its design fluid but to an adjacent chemical — a lubricant, paint, or assembly adhesive that nobody listed on the drawing. EPDM resists weather and polar fluids brilliantly and oils terribly; those are separate axes. The opposite mistake is just as costly: over-specifying Viton in a benign hot-water duty has been documented wasting roughly $12,000 a year versus an EPDM compound that would have lasted as long.

When EPDM is out, the usual replacements are nitrile (NBR) for ambient oil and fuel, or fluoroelastomer (FKM/Viton) for hot oil and aggressive chemicals. Both are standard custom rubber parts materials, so switching the spec is a compound change, not a redesign.

How to Specify an EPDM Molded Part

How to Specify an EPDM Molded Part

A complete spec is what turns a vague inquiry into an accurate quote and a part that work the first time. For custom rubber molding, and custom EPDM molding in particular, four pieces of information do most of the work. Send these and a molder can quote tooling, cycle, and price without a dozen follow-up emails.

EPDM Spec Checklist

  1. Drawing or CAD + tolerance grade. State an RMA grade: A1 (high precision) through A4 (basic). Tighter grades cost more, ask for A1 only where a sealing surface need it.
  2. Hardness + standard call-out. Give a durometer (for example 60 or 70 Shore A) and, ideally, an ASTM D2000 line call-out so heat and oil class are fixed, not assumed.
  3. Annual volume. This sets the process (compression vs transfer vs injection), the tooling decision, and the amount of EPDM consumed per year.
  4. Operating environment. Temperature range, fluids contacted, and any potable-water or food-contact requirement (NSF/FDA).

The ASTM D2000 line call-out looks cryptic but is logical: a type letter fixes the heat-resistance test temperature (A = 70 °C, B = 100 °C, C = 125 °C, D = 150 °C) and a class letter fixes oil-swell resistance. EPDM compounds usually land at BA, CA, or DA, the trailing “A” signaling no oil resistance, exactly what the chemistry predicts. Reading the call-out tells you the elastomer family before you ever see a datasheet. For equipment used to evaluate ozone resistance in rubber compounds, see Beier Labs’ Ozone Test Chamber; select the exposure conditions and acceptance criteria to match the material specification.

📐 Engineering Note

Hardness isn’t a performance spec on its own, it’s an input. For an O-ring or face seal, design for 15–25% compression (squeeze) — the standard range in O-ring sealing practice — and choose the durometer that achieves it in your groove, rather than defaulting to 70 Shore A out of habit. Tooling is a one-time cost; per-part price recurs, so pay for tight tolerance only on the features that actually seal. That’s how you get a high-quality rubber part without overpaying for a quality rubber spec you don’t need.

The most expensive RFQ mistake is an incomplete spec. A drawing with no durometer, no tolerance grade, and no operating fluid forces the molder to guess, and a wrong guess on cure system can mean a seal that fails in the field months after it passed first-article inspection. Engelhardt’s engineers screen each spec against the ASTM D2000 call-out and RMA A1–A4 tolerance grades before any tooling is cut, precisely to close those gaps.

When the spec is ready, our EPDM rubber molding service can review it for manufacturability and recommend a cure system and process to match your volume.

EPDM Molding Demand Outlook: What’s Changing

EPDM Molding Demand Outlook: What's Changing

The biggest shift for EPDM buyers isn’t a market-size figure, it’s where the new seals are going. Vehicle electrification is widening EPDM’s role: battery packs and coolant loops run glycol-based thermal-management fluids, exactly the polar service where EPDM excels and where oil-resistant rubbers add no value. As EV thermal-management volumes climb through 2026, the sealing content that historically went to oil-resistant elastomers is increasingly EPDM, because the fluid changed from oil to coolant.

A second driver is compliance, not consumption. Tightening enforcement of potable-water rules (NSF/ANSI 61) is pushing buyers toward molders that can certify a specific compound formulation, not just hang an ISO certificate on the wall. The practical effect at the RFQ stage: documentation is becoming part of the part.

The risk for buyers is a costly mid-program switch. One electrification team that locked in an EPDM coolant seal without confirming glycol compatibility faced requalification when a substitute grade was specified by mistake, weeks of delay that a single compatibility check at the RFQ stage would have prevented.

For market context only, analysts put EPDM and broader rubber-molding growth in the mid-single-digit CAGR range, directional background, not a buying reason. The buying reasons are above. These shifts are reshaping the rubber molding industry: buyers increasingly shortlist EPDM manufacturers and rubber molding manufacturers whose molding services and rubber molding solutions come with documented compound control rather than commodity pricing. Rubber technology is moving toward certified formulations, not just certified factories. Action for 2026 programs: if you are sourcing seals for an EV thermal system, confirm glycol/coolant compatibility and request the cure-system and NSF/FDA compound documents at RFQ, not after PPAP.

EPDM Rubber Molding FAQ

Q: Can EPDM be molded?

View Answer

Yes. EPDM is molded by all three standard rubber processes, injection, compression, and transfer molding. In each case a solid EPDM compound is heated until it flows, forced into a closed steel mold, and vulcanized under heat and pressure. The process you pick depends on your annual volume and part geometry, not on any limitation of the material itself. Compression suits low volumes and large gaskets, while injection molding takes over for high-volume precision seals.

Q: What does EPDM mean in rubber?

View Answer

EPDM stands for ethylene propylene diene monomer, the three monomers that together build up the polymer chain. It’s a synthetic rubber whose saturated backbone gives excellent ozone, UV, and weather resistance, while the diene component supplies the cross-linking sites needed to vulcanize it into a part.

Q: How long does EPDM rubber last?

View Answer

In the right environment, decades. Field surveys of single-ply EPDM roofing membranes confirm 38-plus years of service, and accelerated-aging studies project even longer. Molded EPDM seals in weather, water, or glycol duty routinely last the life of the equipment. Lifespan drops sharply, though, if EPDM contacts petroleum oil or fuel, or runs above its cure-system temperature ceiling.

Q: Is EPDM rubber waterproof?

View Answer

Yes. EPDM resists water, hot water, and steam exceptionally well, which is why it anchors single-ply roofing membranes and water-system seals. Unlike many oil-resistant rubbers, it doesn’t swell in prolonged water or glycol contact, making it a default for wet sealing.

Q: How do you bond EPDM rubber to metal?

View Answer

Rubber-to-metal bonding happens during molding. The metal insert is cleaned, primed, and coated with a bonding adhesive, then placed in the mold so the EPDM cures directly against it, transfer molding suits this especially well. Sulfur-cured compounds generally bond more readily than peroxide-cured ones, which is one reason cure system and molding process are chosen together. A clean, well-primed insert is the difference between a lasting bond and a part that delaminates in service.

Q: Is EPDM a rubber or a plastic?

View Answer

EPDM is a rubber, specifically a synthetic elastomer. Once vulcanized it’s elastic and springs back after deformation, unlike a rigid thermoplastic. It’s sometimes mistaken for plastic because it’s synthetic, but mechanically it behaves as a rubber, which is exactly what makes it useful for seals, gaskets, and grommets.

Q: How strong is EPDM?

View Answer

EPDM’s tensile strength typically runs 500–3,000 psi (about 3–21 MPa), depending on compound and reinforcing filler, moderate among rubbers, below natural rubber’s peak but ample for sealing duty. Its real engineering strength is durability, not raw tensile: outstanding resistance to ozone, UV, weather, hot water, and compression set, especially with peroxide cure. For sealing parts, that ageing resistance matters far more than a tensile number, which is why EPDM is specified by operating environment. When you compare grades, ask the supplier for the compression set value measured per ASTM D395 — a result under about 25% (22 hr at 100 °C) signals a seal that will hold its sealing force across years of service, which is the number that actually predicts field life.

Ready to quote an EPDM part. Send a drawing, target hardness, annual volume, and operating environment for a manufacturability review by our engineering team.

Get an EPDM Molding Quote →

About This EPDM Guide

Engelhardt molds EPDM and other elastomers in-house on 40+ vulcanizing presses (~2,000 tons/year) with a 3,600 m² mold shop and an on-site lab that runs Mooney viscosity, moving-die rheometer cure curves, salt-spray, and heat-aging on each compound. The cure-verification and over/under-cure observations in this article come from that batch-testing practice. Reviewed by the Engelhardt technical team.

]]>
https://meitu-engelhardt.com/epdm-rubber-molding-guide/feed/ 0
Overmolding Guide: Materials, Bonding & DFM (2026) https://meitu-engelhardt.com/overmolding-guide/ https://meitu-engelhardt.com/overmolding-guide/#respond Wed, 17 Jun 2026 07:56:25 +0000 https://meitu-engelhardt.com/?p=2918

Overmolding is an injection molding process that molds a second material over an existing substrate to make one finished part, a soft grip over a rigid handle, a sealed housing, or rubber bonded to a metal core. This guide to overmolding explains how the process work, how it differs from insert molding and two-shot molding, which materials bond to which, the design rules that keep parts from delaminating, and what an overmolding program actually costs. It’s written from a production molder’s bench rather than a prototype quote calculator.

Quick Specs: Overmolding at a Glance

Process family Overmolding, insert molding, two-shot (2K) molding
Common substrates ABS, PC, PA (nylon), PP, PBT, glass-filled grades
Common overmolds TPE, TPV, TPU, liquid silicone rubber (LSR), EPDM, nitrile
Typical overmold wall ~0.5–4 mm (uniform sections preferred)
Dimensional tolerance ±0.05–0.10 mm on controlled features
Bond types Chemical, mechanical, or both (primer/adhesive for silicone & rubber)

Capability envelope per ISO 19095 plastic, metal adhesion methods and Engelhardt production data.

What Is Overmolding?

What Is Overmolding?

At its core, overmolding combines two or more materials into a single part by molding a second material, the overmold, onto a first material called the substrate. Usually the overmold is a soft, rubber-like resin such as a thermoplastic elastomer (TPE) molded over a rigid plastic, but it can also be silicone or vulcanized rubber. That gives one part with properties no single resin can deliver: a hard structural core with a soft, grippable, sealing, or vibration-damping surface. Because the second material is molded directly onto the first, overmolding removes the downstream step of gluing or assembling two parts by hand. As a manufacturing process, engineers use overmolding to make one plastic part do the work of several; common overmolding applications include soft-touch grips, seals, sealed housings, and vibration mounts.

It helps to separate three terms that get used interchangeably. Overmolding molds a second material over a finished plastic substrate. Insert molding involves placing a pre-formed metal or plastic insert into the cavity and injecting plastic around it in a single shot. Two-shot molding (also called 2K molding) injects two materials in one machine cycle using a rotating or multi-shot tool, distinct from compression molding, which cures a material charge under heat and pressure. Together, insert molding and overmolding cover most multi-material parts. All three are forms of the broader plastic injection molding family, and all three eliminate a separate assembly operation, but only when the part is designed for the process from the first sketch.

💡 Pro Tip

Every overmolded part lives or dies at one place: the interface between substrate and overmold. Before choosing a press or a color, decide how the two materials will bond — chemically, mechanically, or both. That decision drives everything downstream.

Overmolding vs. Insert Molding vs. Two-Shot Molding

Overmolding vs. Insert Molding vs. Two-Shot Molding

Engineers and program managers keep hitting the same disagreement: engineering wants the strongest bond, the program want the lowest piece price, and the two pull in different directions. These three multi-material processes are not interchangeable, picking the wrong one show up either as a tooling bill that’s too high for the volume or a feature that can’t be molded at all. Our comparison below put the trade-off in concrete terms, and the on-page overmolding, insert molding or two-shot process selector turns it into a quick recommendation for your part.

Overmolding vs. insert molding vs. two-shot molding: bond type, tooling cost, and the volume where each of the 3 processes pays off.
Decision criterion Insert molding Overmolding Two-shot (2K)
What it joins Pre-formed metal/plastic insert + one plastic shot Substrate + a second material molded over it Two polymers, two shots, one cycle
Interface bond Mechanical (insert geometry) Chemical + mechanical Chemical, in-cycle
Relative tooling cost Lowest Moderate Highest (rotary/2K tool)
Volume where it pays Any volume (threaded/contact parts) Low to high (broad material range) Very high (often >10,000–100,000/yr)
Typical parts Connectors, threaded bosses, contacts Soft-grip handles, seals, sealed housings Multi-color caps, high-volume buttons

Volume thresholds reflect published two-shot vs. pick-n-place economics and Engelhardt production practice.

The Bond-First Process Triangle

Instead of starting from price, our engineers start from the joint the part actually needs, a simple way to choose among the three process:

  1. Needs a threaded fastener or an electrical contact? → Insert molding, at any volume. The metal does a job plastic can’t.
  2. Needs a soft-touch grip, a seal, or a broad material range at low-to-high volume? → Overmolding. Simpler tooling keeps the upfront cost down.
  3. Running into the hundreds of thousands per year with a stable design? → Two-shot. Single-cycle efficiency pays back the heavier tool.

Some geometries rule one process out entirely, a co-molded contact may rule out overmolding; a sealed multi-material shape may rule out two-shot. That’s why process selection belongs in the first design review, not after the tool is cut.

What Is the Difference Between Overmolding and Insert Molding?

Insert molding places a pre-formed component, often a threaded brass bushing or an electrical contact, into the mold, then injects plastic around it in a single shot; the joint is purely mechanical, because there’s no chemical bond between metal and plastic. Overmolding molds a second plastic or rubber layer over an existing plastic substrate, and that bond can be chemical, mechanical, or both. Put simply: insert molding adds a functional metal feature; overmolding adds a second soft or rigid layer such as a grip or a seal. Many real parts use both at once, a sealed connector with brass contacts (insert molding) and a TPE strain relief (overmolding) on the same shot sequence.

Overmolding Materials and Substrate-to-Overmold Bonding

Overmolding Materials and Substrate-to-Overmold Bonding

An overmolded part fail in the field for one reason far more often than any other: the bond between substrate and overmold was an afterthought. A soft grip peels at the edge; a sealed connector let water in at the interface; a TPE button delaminates after thermal cycling. Almost always, the cause is a material pair that was never tested for compatibility, or a substrate with no mechanical interlock to back up a weak chemical bond. Choosing overmolding materials therefore starts at the interface, not at the press.

There are two ways layers bond. A chemical bond forms when the two polymers are compatible and the molten overmold wet the substrate surface, peer-reviewed work on injection overmolding shows bond strength rising with molecular interdiffusion at the interface, which in turn rises with melt temperature and contact time (NIH/NCBI study on overmold bonding strength). A mechanical bond relies on undercuts, through-holes, or texture that the overmold flows into and grips. Together they make the strongest, most repeatable overmolded parts. This chart is the starting point our engineers use during design review.

Overmolding bond compatibility: how 10 overmold material classes bond to ABS/PC, PP/PE and metal, with typical Shore-A hardness.
Overmold material class Typical hardness On ABS / PC On PP / PE On metal insert
TPE (styrenic / SEBS) 20–90 Shore A Chemical + mechanical Mechanical (interlock advised) Mechanical
TPE (TPO-based) 40–90 Shore A Mechanical Chemical + mechanical Mechanical
TPV (Santoprene-type) 35–90 Shore A Mechanical Chemical + mechanical Mechanical
TPU 60 Shore A–60 Shore D Chemical + mechanical Mechanical Mechanical
TPC (copolyester) 35–80 Shore D Chemical + mechanical Mechanical Mechanical
Liquid silicone rubber (LSR) 10–80 Shore A Mechanical / primer Mechanical / primer Mechanical / primer
HCR silicone 30–80 Shore A Mechanical / primer Mechanical / primer Primer
EPDM (vulcanized) 40–90 Shore A Adhesive system Adhesive system Chemical (bonding agent)
Nitrile / NBR (vulcanized) 40–90 Shore A Adhesive system Adhesive system Chemical (bonding agent)
Natural rubber 30–90 Shore A Adhesive system Adhesive system Chemical (bonding agent)

Material families, not specific grades; bond classifications align with published compatibility data and ASTM D429 rubber-to-metal adhesion testing. Always validate on your actual resin pair.

Selecting Overmolding Materials

Selecting overmolding materials is a pairing decision, not a single-material one. Because overmolding combines multiple materials in one part, you select materials for the substrate and the overmold together, the combination of materials, not either one alone, decides whether you get a strong bond between the materials or a weak interface. Common overmolded materials span styrenic TPE, TPU, TPV, liquid silicone rubber, and thermoset materials such as vulcanized rubber; each overmolded material wet and grips a given molded plastic substrate differently. Choosing the best materials for overmolding means matching surface energy, melt temperature, and the two materials’ chemistries, different materials that look identical on a datasheet can behave very differently once molded. When no chemically compatible pair exists, designers rely on mechanical interlock, the same logic that makes plastic overmolding onto low-energy substrates work at all.

The pattern that surprises buyers most is that chemical compatibility alone isn’t always enough. Practitioners report that even two very similar grades of the same elastomer can delaminate if melt temperature, surface cleanliness, or time-between-shots are wrong. Low-surface-energy substrates such as polypropylene and polyethylene cause the molten overmold to bead instead of wet, which is why a PP part usually needs a polyolefin-specific TPV, or a designed-in mechanical interlock, rather than a generic TPE.

The Four Interface-Failure Modes

When an overmolded part fail, it’s almost always one of these four, ranked by how often we see them on incoming parts that were molded elsewhere:

  1. Edge peel. An exposed overmold edge lifts and propagates. Fix: recess the edge behind a lip of substrate.
  2. Interface contamination / poor wetting. Oils, mold release, or a cold substrate skin stop the chemical bond. Fix: clean (IPA), control time-between-shots, preheat to roughly 80–120 °C, just below the substrate’s softening point.
  3. Thermal-cycle delamination. Mismatched expansion pulls the layers apart in service. Fix: pair compatible chemistries and test after environmental conditioning, not just as-molded.
  4. No mechanical backup. A weak chemical bond with nothing to hold it. Fix: add undercuts, through-holes, or texture so the overmold is keyed in.

Can Silicone or Rubber Be Overmolded onto Plastic and Metal?

Yes. Liquid silicone rubber and vulcanized rubber are routinely overmolded onto plastic substrates and metal inserts, alongside TPE, TPV, and TPU. What differs is the bonding route: silicone and rubber usually bond mechanically or through a primer/bonding agent rather than by direct chemical adhesion, so the substrate geometry and surface preparation must be designed in from the start. LSR, for instance, cures in the tool at roughly 150–200 °C, well above the 230–290 °C melt range of a typical ABS substrate, so the thermal window has to be managed. This is exactly where a molder with in-house rubber capability matters, Engelhardt runs silicone overmolding and rubber overmolding on more than 40 vulcanizing machines, and treats rubber-to-metal bonding as a core process rather than a subcontracted one.

Insert Molding and Threaded Inserts: Designing for Retention

Insert Molding and Threaded Inserts: Designing for Retention

For threaded inserts, pull-out and torque resistance come from the plastic boss around the insert and the insert’s knurl pattern, not from the screw thread alone. Diamond-knurled brass inserts hold substantially better than smooth or self-tapping ones, because molten plastic flows into the knurl and form a mechanical key. Get the boss too thin and the wall cracks during molding or in service; too thick and it sinks.

The 2.5x Boss Rule

Sizing the boss

As a working rule, size the plastic boss outer diameter at roughly 2 to 2.5 times the insert outer diameter. A material-maker rule of thumb puts the boss OD at 2.0–2.5× the insert, and boss wall thickness around 40–60% of the part’s nominal wall. Worked example:

A brass insert with a 6 mm outer diameter → target a boss OD of about 6 × 2.5 = 15 mm (a 12–15 mm range is the working window). On a 2.4 mm nominal wall, the boss wall lands near 40–60% × 2.4 mm ≈ 1.0–1.4 mm.

These are starting points. Confirm retention on your actual resin during sampling rather than trusting a generic datasheet.

📐 Engineering Note

There’s no chemical bond between a metal insert and plastic, so insert retention is 100% mechanical. We confirm pull-out and torque on the customer’s actual resin at T1 sampling, and prefer symmetrical diamond-knurled inserts to reduce sink marks on cosmetic faces. For load-bearing inserts, design the boss so the load path run into the bulk of the part, not into a thin rib. An insert-molding boss size calculator is a fast first check before you commit the geometry.

Overmolding Design Rules (DFM)

Overmolding Design Rules (DFM)

Good overmolding design is mostly disciplined injection molding design applied to two materials at once. Your substrate has to survive the heat and pressure of the second shot, and the overmold has to wet, fill, and grip without trapping air or shrinking away from the substrate. A few rules carry most of the weight.

  • ✔ Keep walls uniform. Substrate and overmold sections both want consistent wall thickness for even flow; thick pockets cause sink and voids.
  • ✔ Back up weak chemical bonds mechanically. Undercuts, through-holes, or texture turn an uncertain bond into a reliable one.
  • ✔ Keep gates off the bond line. Place gates so flow fronts fully wet the interface instead of meeting at a weak knit line in the highest-stress area.
  • ✔ Protect overmold edges. Recess exposed elastomer behind a substrate lip so peeling has nowhere to start.
  • ✔ Validate after conditioning. Test bond strength after thermal/humidity exposure, not just on as-molded parts.

Designing for overmolding starts with disciplined part design. This design process bring product design and manufacturing together, so design for manufacturability (DFM) and the key design considerations belong early, not after the tool is cut. Mechanically, the overmolding process run on a standard injection molding machine, but the molding operation adds a second material to the manufacturing process, so the molding design guide your team follows has to account for both shots. Design factors that matter most, uniform walls, mechanical interlock, and gate position, are the same ones that decide whether the process of overmolding yields a clean part or a delamination complaint.

What Is the Minimum Thickness for Overmolding?

There’s no single universal number, because the minimum depend on the material, the flow length, and the tooling. As a practical starting point, overmold sections in the range of roughly 0.5–4 mm mold reliably, with many soft-touch grips living around 1–2 mm; very thin overmold features can be molded but get harder to fill cleanly as the wall drops below about 0.5 mm. A counter-intuitive point worth flagging: a thin, soft elastomer can still feel hard, because perceived softness depends on overmold thickness and flexural modulus, not durometer alone. If grip or cushioning is the goal, give the overmold enough thickness, or add ribs, rather than just specifying a lower durometer. For dimensional questions on the rigid substrate, see our guide to injection molding tolerances.

What Overmolding Costs: Tooling vs. Per-Piece

What Overmolding Costs: Tooling vs. Per-Piece

An overmolding project is quoted in two lines, and most “comparable” quotes diverge once you read into them. One line is a one-time tooling fee; the other is a recurring per-piece price. Total project price equals the tooling fee plus the unit price times quantity, there’s no honest single number that covers both.

Tooling drivers (one-time)

  • Part size and number of cavities
  • Steel grade and rated mold life
  • Mold complexity (transfer, rotary, or 2K)

Per-piece drivers (recurring)

  • Material grade and part weight
  • Cycle time and press size
  • Secondary operations, inserts, and assembly

Two real cost levers hide in the per-piece line. First, labor: at low volume, brass inserts are often loaded into the tool by hand, which is real recurring cost; at high volume, robotic loading and two-shot tooling pull that labor out. Second, vendor count: splitting a part across a substrate molder, an overmold molder, and a separate hardware vendor adds duplicated freight, duplicated inspection, and a tolerance stack that no one owns. Consolidating those into one supplier is frequently where the real savings live, which is the whole premise of Engelhardt’s production-volume overmolding and insert molding services.

“When a buyer hands us a soft-grip handle as three separate part numbers, the first thing we look at is the bond line, not the price. Consolidating the substrate, the overmold, and the metal insert into one tool is where the real cost and quality gain lives, because the interface stops being someone else’s problem.”

Engelhardt Engineering Team

Where Overmolding Is Used: Applications by Industry

Where Overmolding Is Used: Applications by Industry

Overmolded parts show up anywhere a product need two material behaviors in one part. Four industry patterns cover most overmolded parts:

Automotive. Sealing components, bushings, and bonded isolators run under an IATF 16949 quality system with PPAP-style documentation. Take a bonded isolator: it pairs a stamped steel core with a vulcanized rubber overmold to carry load while damping vibration, a textbook automotive rubber part. Electrical and connectors. Cable overmolding and sealed housings guard contacts from moisture and strain; a connector might use insert-molded brass pins plus a TPE strain relief overmolded in the same program, see our notes on electrical and electronic rubber parts. Hardware and consumer. Soft-touch grips on tools and appliances remove a separate grip-assembly step. Medical. Overmolded device components, an overmolded catheter hub is a documented example where the bonding method affects concentricity and kink resistance (US Patent 7,713,260) — often use LSR for biocompatibility and sterilization resistance.

One concrete scenario make the trade-offs real. Consider a power-tool maker shipping 60,000 cordless drills a year, arriving with a three-part grip: a glass-filled nylon housing, a TPV soft grip, and four brass threaded inserts, sourced from three vendors. Field returns show grips peeling at the trigger edge. Consolidated into one overmolding program, the edge is recessed behind a nylon lip, the TPV is swapped for a polyolefin-compatible grade that bonds to the nylon, and the inserts are molded in on the same line. The peel complaints stop, and the buyer issues one purchase order instead of three.

Industry Outlook: What’s Changing in Overmolding

Industry Outlook: What's Changing in Overmolding

Through 2026, the biggest shift in overmolding isn’t a new material, it’s how buyers structure the supply chain. That load-bearing change is vendor and tolerance-chain consolidation: procurement teams are collapsing the substrate molder, the overmold molder, the insert supplier, and final assembly into one factory, specifically to kill the cross-vendor tolerance stack that causes most multi-material field failures. Labor and freight that hid in a three-vendor structure become visible, and removable, once one supplier owns the whole part.

Two other drivers are worth watching. First, demand for LSR and medical overmolding is pulling primer-bond and cleanroom capability in-house at production molders, because outsourcing the silicone step reintroduces the interface problem this whole article is about. Second, overseas-sourcing scrutiny is rising: buyers are writing virgin-material clauses and tooling-ownership terms directly into the RFQ rather than discovering after the fact that they only paid for cavity inserts or that regrind was blended into a part specified as virgin. The action for a buyer planning an overmolding program now is concrete, lock material grade, steel grade, dimensional tolerances, and full mold ownership into the RFQ before any drawings are surrendered, the same four control points our production-volume overmolding and insert molding services quote against by default. For market context, mold-design and insert-molding service markets are projected to keep growing through the early 2030s, but that’s background to the procurement shift, not the reason for it.

Frequently Asked Questions

Q: What is an example of overmolding?

View Answer
Take a toothbrush: a rigid plastic handle (the substrate) with a soft TPE overmold for grip and comfort. Industrial examples include a power-tool handle with a soft-touch grip, a sealed electrical connector with an overmolded strain relief, an automotive bushing with rubber bonded to a metal core, and a medical catheter with an overmolded hub. In each case, two materials are combined into one part so the product gets properties — grip, sealing, vibration damping, biocompatibility — that no single resin can deliver.

Q: How does overmolding work?

View Answer
First a substrate is produced by standard injection molding. That substrate is then placed in a second mold — by robot in two-shot molding, or by hand in pick-n-place molding — and a second material is injected over it. The overmold bonds to the substrate chemically, mechanically, or both, and the finished multi-material part is ejected as one piece. The key control points are material compatibility, substrate cleanliness and temperature, and gate placement, because those determine whether the interface actually bonds.

Q: Can EPDM be overmolded?

View Answer
Yes. EPDM and other vulcanized rubbers are overmolded onto plastic substrates and metal inserts, but they bond through an adhesive or bonding-agent system rather than by direct chemical adhesion to most plastics. That means the bonding agent, surface preparation, and cure conditions have to be designed in from the start, and the bond is typically verified with a rubber-to-metal adhesion test such as ASTM D429. A molder with in-house vulcanizing capability handles this far more reliably than one subcontracting the rubber step.

Q: Is overmolding expensive?

View Answer
It depends on volume. Overmolding carries a one-time tooling cost plus a per-piece cost, and it often reduces total cost by eliminating a separate assembly step. Below about 10,000 parts, pick-n-place overmolding usually wins on total cost; above that, two-shot tooling starts to pay back.

Q: What are the disadvantages of overmolding?

View Answer
Bond failure is the main risk — delamination or peel when material pairs are incompatible or process control slips. It also adds tooling complexity, a second material to handle, and tighter process windows than single-shot molding. These are manageable with disciplined material selection, mechanical interlock features, and validation after environmental conditioning, but they make supplier capability and DFM review more important than for a single-material part.

Q: Do overmolding materials differ from standard injection-molding materials?

View Answer
They are mostly the same resin families — ABS, PC, nylon, PP, PBT as substrates and TPE, TPV, TPU, LSR, or rubber as overmolds — but overmolding adds one decisive requirement: the substrate and overmold must be compatible as a pair. A resin that molds perfectly on its own can still fail as an overmold if it cannot wet or bond to the chosen substrate. Some TPE grades are formulated specifically for adhesion to a given substrate, and silicone or rubber often needs a primer. That is why overmolding material selection is a pairing decision, not a single-material decision, and why grades should be validated together on real tooling before production.

Why We Wrote This Guide

Engelhardt molds plastic, TPE, silicone, and rubber overmolds onto plastic and metal inserts at automotive production volumes, substrate, overmold, inserts, and assembly under one roof, with more than 40 vulcanizing machines and an in-house lab (Mooney viscometer, rheometer, salt-spray) that lets us verify bond and pull-out strength on real resin. The bond-compatibility chart and the 2.5× Boss Rule in this guide come from our own design-review practice, not a datasheet. Reviewed by the Engelhardt technical team.

Related Articles

Sizing an overmolding or insert-molding program for production volume, not a prototype calculator?

Request a DFM & Tooling Feasibility Review →

]]>
https://meitu-engelhardt.com/overmolding-guide/feed/ 0
Silicone Compression Molding: 2026 Cost & DFM Guide https://meitu-engelhardt.com/silicone-compression-molding-guide/ https://meitu-engelhardt.com/silicone-compression-molding-guide/#respond Tue, 16 Jun 2026 08:09:18 +0000 https://meitu-engelhardt.com/?p=2905

Silicone compression molding is a thermoset molding process that presses a weighed charge of uncured solid silicone into a heated cavity and cures it to shape. It’s the workhorse for low- to mid-volume gaskets, seals, grommets, keypads, and thick sections — and the process where buyers either win big or quietly lose the margin to flash, cold seams, and tooling that never amortizes. This guide covers how it works, which grade & durometer to specify, what tolerances you can really hold under ISO 3302-1, and where compression beats or loses to injection molding on cost.

Quick Specs, Silicone Compression Molding

Material Solid HCR / HTV silicone gum (not LSR)
Durometer range 20–80 Shore A (±5 Shore A tolerance)
Cure / cycle ~170–200 °C; 1–5 min (thicker = longer)
Dimensional tolerance ISO 3302-1 Class M1 (0.15 mm) – M2 (0.20 mm) @10–16 mm
Service temperature −50 °C to +250 °C standard (specialty to +300 °C)
Economic volume ~50–5,000 parts (process-dependent)
Typical tooling $1,000–$20,000; first articles in 7–12 days

What Is Silicone Compression Molding?

What Is Silicone Compression Molding?

Silicone compression molding works like this: a pre-weighed slug of uncured solid silicone is placed into a heated cavity, the tool is clamped shut, and heat (around 170–200 °C) plus pressure vulcanize the silicone into the cavity shape. That cure is a one-way chemical crosslink — once set, the part can no longer be re-melted. It is the workhorse for low-to-medium volume gaskets, seals, grommets, keypads, and thicker cross-sections, where tooling cost matters more than cycle speed.

Because there are no runners and the pressures are low, tooling stays cheap and first articles come fast. That is exactly why a 2,000-piece silicone seal run usually lands on a compression press instead of an LSR injection mold — the injection tool would never pay back its cost at that volume. Its trade-off is a parting line that has to be de-flashed and a cure that lives or dies on dwell time, which is where the rest of this guide focuses.

Can silicone be compression molded?

Yes — solid silicone is routinely compression molded. In its high-consistency rubber (HCR) or high-temperature vulcanized (HTV) form, it is the grade most commonly used for the process, well suited to lower volumes, longer cycle times, and parts that must hold a firm, solid shape once cured. Best-fit parts include gaskets, seals, grommets, silicone keypad contacts, and thick-walled sections — a class that extends to precision sealing geometries documented in granted patents such as US 9,943,146 B2.

How the Compression Molding Process Works, Step by Step

How the Compression Molding Process Works, Step by Step

A compression-molded silicone part usually fails because of a mistake in one of the five steps of a normal molding cycle, not because the process itself is unreliable. Each step — slug weighing, loading, clamping and heating, cure dwell, and de-flashing — has to be controlled in sequence. Here is the actual cycle as run on a silicone molding press:

The Compression Molding Cycle

  1. Slug weigh. A charge of uncured silicone is weighed to each cavity. Too much creates excess flash; too little starves the fill and risks an under-packed corner.
  2. Load. The slug is placed in the lower cavity, and the step repeats per station on a multi-cavity tool.
  3. Clamp & heat. The press closes; clamp tonnage (typically 50–300 t on silicone presses) plus mold heat force the silicone into every recess of the cavity.
  4. Cure dwell. The part is held at temperature for a precisely controlled dwell — the single most important variable. Cure too short and the core stays under-cured.
  5. De-flash. The part is removed and parting-line flash is trimmed on manual, cryogenic/frozen, or automatic de-flashing lines.

📐 Engineering Note

Consistent, accurate weighing of each slug for each cavity on a run of 20K parts makes all the difference in whether or not the parts meet spec. For example, our automated slug weighing controls fill and flash within each cavity from 1 to 20K; you simply dial-in your fill setting then let our machine weigh and deliver slug material before each cure cycle begins.

What is compression molding used for?

Reach for compression molding whenever a thermoset elastomer needs an even cure through a thick wall: silicone seals and gaskets, vibration grommets, keypad membranes, electrical insulators, switch boots, sanitary seals, and food-contact cookware governed by 21 CFR 177.2600. It’s also the cheapest way to get a usable rubber prototype, since the tooling runs a small fraction of an injection mold.

Silicone Materials & Durometer Selection

Silicone Materials & Durometer Selection

One of the most common — and most expensive — early mistakes is failing to pin down the material. Plenty of shops compression-mold solid “gum” silicone (engineers call it HCR, high-consistency rubber, or HTV, high-temperature vulcanized), which cures to shape under heat and pressure rather than getting injected like a two-part liquid. So don’t assume the grade a press shop quotes is the one your part needs. Read the durometer list: if it shows “LSR,” that’s a liquid injection material, not a compression grade. The two aren’t interchangeable.

Silicone grade selector for compression molding — 10 solid HCR/HTV families span 10–80 Shore A and −90 °C to +300 °C.
Silicone grade Type / process Durometer Service temp Best-fit parts
General-purpose HCR / HTV Solid gum; compression 20–80 Shore A −50 to +250 °C Gaskets, seals, thick sections
High-tear HCR Solid; compression 30–60 Shore A −50 to +250 °C Thin-wall seals, diaphragms
Food-grade HCR Solid; compression 30–70 Shore A −50 to +230 °C Kitchenware, food-contact gaskets
Medical-grade (platinum-cure) Solid; compression 30–70 Shore A −50 to +200 °C Medical seals, diaphragms
Fluorosilicone (FVMQ) Solid; compression 40–70 Shore A −55 to +200 °C Fuel/fluid-resistant seals, aerospace
Flame-retardant (UL 94) Solid; compression 40–80 Shore A −50 to +230 °C Electrical insulation, switch boots
Electrically-conductive Solid; compression 40–70 Shore A −40 to +200 °C EMI gaskets, keypad contacts
High-temperature HCR Solid; compression 40–80 Shore A −50 to +300 °C High-heat seals, ducting
Phenyl (low-temp) Solid; compression 30–60 Shore A −90 to +200 °C Cryogenic / aerospace seals
Liquid silicone rubber (LSR) 2-part liquid; injection 10–70 Shore A −50 to +200 °C High-volume, thin-wall, fine detail

“Hardness” — also called “durometer” — is a service-life and quality decision, not a price one. Hardness on a molded silicone part typically holds to about ±5 points Shore A per ASTM D2240, so you can’t pick a durometer on cost alone. Every grade in this table suits compression molding except the last row; only the liquid silicone rubber (LSR) in that final row is an injection material.

For food and medical contact, the grade has to be backed by compliance documentation, not a verbal assurance. U.S. food-contact rubber and silicone articles for repeated use are governed by 21 CFR 177.2600, and the FDA’s Food Contact Substance inventory lists silicone elastomers cleared under that section. Ask the molder for the specific compliance statement tied to your application before tooling is cut.

Compression vs Transfer vs LSR Injection, Which Should You Choose?

Compression vs Transfer vs LSR Injection, Which Should You Choose?

There’s rarely a single cheapest answer. “Which process costs the least, all else equal?” is the question we hear most — but all else is never equal, especially when you’re planning an elastomeric part. What follows lays out the price-performance table stakes, then a simple decision rule that protects your budget.

Silicone process comparison — compression wins on tooling cost below ~5,000 parts; LSR injection wins on cycle time at high volume.
Factor Compression Transfer LSR Injection
Cycle time 1–5 min 2–5 min 10–60 sec
Typical tooling $1,000–$20,000 $3,000–$25,000 $3,000–$100,000+
Economic volume 50–5,000 Mid-volume 5,000–1,000,000+
Part complexity Low–medium Medium, inserts OK High, fine detail
Parting-line flash Present — trimmed Minor Minimal

These ranges are published industry benchmarks; your quote depends on cavity count, part size, durometer, and compound.

The 5,000-Part Cost Crossover

Here is the rule worth remembering: below roughly 5,000 parts, compression molding usually carries the lower total cost, because the tool is far cheaper to build. Above that, LSR injection’s 10–60 second cycle starts to offset its tooling premium through saved labor and throughput. Thick sections and high-temperature HCR grades pull the crossover in compression’s favor at almost any volume, because injection struggles to cure a heavy wall without leaving an under-cured core.

Worked example: say a 30 mm silicone seal needs 3,000 pieces. A simple compression tool at about $4,000 with a 3–4 minute cycle beats an LSR mold at about $25,000 — the injection tool would need a very long run to pay back the extra ~$21,000 in tooling. Flip the part to 150,000 thin-wall grommets a year, and the math inverts: injection’s seconds-long cycle wins on labor despite the tooling.

⚠️ The contrarian truth: compression tooling isn’t always cheaper

The “compression molds are always cheap” rule of thumb falls apart on precision multi-cavity work. Experienced moulders say it plainly: rubber molds are not always cheaper or simpler than injection molds, and a tight-tolerance, high-cavity-count compression tool can cost as much as a simple injection mold. Real cost is driven by cavity count and precision, not the process label. Budget on your part’s tolerance and cavitation — the ISO 3302-1 class you actually need — not on a slogan.

Compression molding vs injection molding for silicone, which should I choose?

Volume and geometry get you most of the way, and a quick cost sanity-check usually settles it: under about 5,000 parts or for thick walls, compression wins; for high-volume thin-wall work, LSR injection wins. Treat this as a first pass through the map, not the final call — that comes only with a DFM review of your actual part.

Process-Cost Selection Matrix

  • Under ~5,000 parts, simple-to-medium geometry → compression molding (low tooling cost, fast to first article).
  • Thick-walled or large cross-section → compression molding (even cure through heavy sections).
  • High volume, thin-wall, fine detail → LSR injection molding (short cycle amortizes the higher tooling cost).
  • Metal inserts / encapsulation → rubber transfer molding (closed mold protects insert position).
  • Prototype or design validation → compression molding (cheap tooling, quick iteration).

Tolerances, Flash & the Defects Engineers Raise Most

Tolerances, Flash & the Defects Engineers Raise Most

Getting Tight(ish) Tolerances: If precision matters, a general dimensional tolerance on your compression-molded parts is guided by a standard known as ISO 3302-1. That standard sets four tolerance classes, from M1 (precision) to M4 (general), and you should pick the class you need before the tooling is cut, not after the first part disappoints.

ISO 3302-1 M-Class Tolerance Map — for a 10–16 mm fixed dimension, Class M1 allows 0.15 mm and M2 allows 0.20 mm on compression-molded silicone.
Class Grade Tolerance @10–16 mm Typical use
M1 Precision ±0.15 mm Sealing faces, ribs, bosses
M2 High ±0.20 mm General precision features
M3 Medium Intermediate Non-critical dimensions
M4 General ±0.80 mm Coarse, low-cost parts

Keep the Shore A Soft (or not): Hardness tolerances on compression-molded silicone parts run about 5 points in Shore A. Specialty shops may promise tight ‘feature’ tolerances – 0.02 to 0.1mm – by using hardened steel and location pins, but you should stick to referencing the ISO class (per ISO 3302-1) in your drawings.

The defect engineers raise most: cold seams

On manufacturing forums, that warning is real: badly managed compression molding can leave small “cold seams” — spots where the silicone was poorly packed or the cure didn’t complete — and those areas can trap bacteria, a genuine problem in medical and food-grade silicone. Slug weighing, deliberate placement of the charge in the cavity, and an approved cure profile (not hope) are what eliminate the risk.

The 3 Cure-Discipline Levers

  1. Mold Design: Parting line, vents and cavity balance all determine flash thickness and fill – a poorly designed mold never gives a good part.
  2. Compound Matters: Cure profile (temperature, dwell time and pressure) has to match the specific silicone compound- over-curing can be a primary cause of cold seams, and of “high compression set”.
  3. Flash Control: Every silicone part has to be de-flashed. We can do that the right way- consistency, from start to finish.

What are the disadvantages of compression molding?

But it’s Not Perfect… There are three honestly annoying reasons: The part cycle time is in minutes- so labor cost is greater on high volume; De-flashing means an added step; Very fine feature detail and thin sections can be difficult to fill with compression’s low pressures. (But these don’t have to matter on the right part.)

✔ Advantages

  • Low tooling cost ($1k–$20k), fast first articles
  • Even cure through thick / heavy-wall sections
  • Low residual stress; little material waste
  • Cheapest route to a functional rubber prototype

⚠ Limitations

  • Slow cycle (1–5 min) → higher labor at volume
  • Parting-line flash requires de-flashing
  • Struggles with ultra-thin walls / fine detail
  • Cure discipline is non-negotiable for medical/food parts

Tooling Cost, MOQ & Lead Time

Tooling Cost, MOQ & Lead Time

The hidden quote killer: Where do custom silicone quotes most often go off the rails? Not with unit price. Rather, in line items the quote leaves out (secondary ops, testing, rework, and certifications such as 21 CFR 177.2600 compliance). A quoted 30% advantage will vanish with these.

Silicone compression molding tooling cost & lead time — a simple mold runs $1,000–$5,000 in 2–4 weeks.
Tooling type Typical cost Lead time
Simple silicone compression mold $1,000–$5,000 2–4 weeks
Complex / multi-cavity mold $5,000–$20,000 4–8 weeks
First-article samples + inspection Quoted with tooling 7–12 days
Production run By volume & durometer Per project

For context, injection molds span $100 (3D-printed, low-volume) to $100,000+ for complex multi-cavity tools, which is why low-volume silicone work stays with compression molding.

💡 Pro Tip — line items to demand on the quote

To quote you best: We itemize tool cost, de-flash method, any testing/certifications, and Minimum Order Quantity on every quote. We always itemize on four separate lines-so nothing is ‘a surprise’ down the road. If a shop can’t quickly itemize all of these… they’ll probably try to quietly bundle then re-charge them later.

What Parts Suit Compression Molding? Six Part Families

What Parts Suit Compression Molding? Six Part Families

Engineers reach for silicone where other elastomers crack: it stays flexible from −50 to +250 °C, resists aging, and is inert to almost any chemical. Six part families cover most compression-molding work, each driven by a different priority — tolerance, cost, or compliance.

  • Medical & lab — seals, gaskets, and diaphragms that need controlled flash and food- or medical-grade compounds compliant with 21 CFR 177.2600.
  • Automotive — vibration pads, grommets, and seals molded under an IATF 16949 system.
  • Silicone keypads — instrument and industrial keypads. Counterintuitively, compression is often cheaper per part than injection here: hundreds of keys mold in a single cycle on our multi-cavity “waffle-iron” tool, instead of one at a time.
  • Electrical insulation — insulating boots, battery caps, switch covers, and jacketing for electrical gear.
  • Sanitary & building — pneumatic bags, pipe sleeves, gaskets, and plumbing seals.
  • Kitchenware & consumer — food-grade silicone bakeware and household molded products.

“Where injection molding fights a heavy cross-section and risks an under-cured core, compression packs the whole charge into the tool and holds heat and pressure until the part is cured all the way through. For thick gaskets and seals, that even cure is the whole reason the process exists.”

Engelhardt silicone & rubber molding team

How to Vet a Silicone Compression Molding Supplier

How to Vet a Silicone Compression Molding Supplier

Certifications don’t help you much if the parts they apply to can’t be justified. Quickest way to distinguish a real quality system from a stack of logos: ask for three documents before ordering — a supplier with a real quality system produces them fast.

  • A valid “certificate of compliance” bearing the legal entity name of the applicable parties (not a sibling company or affiliates).
  • A material compliance statement from the applicant (example: 21 CFR 177.2600, RoHS / REACH upon request).
  • FA I report associated with your drawing

A couple of other checks separate the mold-builder-operator from the broker. First, does quality actually run on lot traceability — can a shipped part be tied back to the press, operator, tool, and material lot? Our parts trace forward and backward through an ERP/MES/QMS/WMS system in place since 2017, with cure profiles living on the MES rather than on paper. Second, make sure staged payment is on the table: a tooling deposit up front, the balance against first-article approval, and lots billed thereafter. Be wary of any supplier that won’t stage a compression job when you want to approve the actual part before writing a big check for full production.

Industry Outlook: What’s Changing for Silicone Molding Buyers

Industry Outlook: What's Changing for Silicone Molding Buyers

What matters in 2026 is sourcing risk, not a market-size headline. Two trends are changing how buyers vet a silicone molder.

1) Dual sourcing. Growing medical-device demand and automotive electrification are pushing companies that once single-sourced offshore to add a second, often nearshore, supplier — usually after a “compliance disconnect” event, where a certificate doesn’t match the legal entity or scope gaps surface during an audit. 2) Traceability specs. Food- and medical-contact buyers increasingly write material traceability into the spec: not just a generic “food safe” claim, but documented compliance such as 21 CFR 177.2600 and lot-level traces tied to the exact material name and grade.

What to do about it: check your molder’s certificates against the legal entity that actually produces your parts, and confirm real lot-level traceability exists rather than just appearing in the brochure. For context only — the global LSR market is growing at a high-single-digit CAGR into the early 2030s; useful for orientation, not a basis for choosing a process. Grade-and-compliance discipline is what keeps you clear of part-liability trouble.

Have the part drawings? Get a cost crossover modelled based on your annual volume.

Request a DFM & Quote →

Frequently Asked Questions

Q: Can silicone be compression molded, and what parts suit it best?

View Answer
Yes — solid HCR/HTV silicone is a common compression-molding grade. It suits gaskets, seals, grommets, keypads, and higher cross-section parts at low-to-medium volume, where even cure through a thick wall matters more than raw cycle speed. Very high-volume programs or ultra-thin walls are where HCR gives way to LSR injection molding, which has a far shorter cycle time but much higher tooling cost. For a run of a few thousand pieces, compression is usually the lower-total-cost route.

Q: How much does a silicone compression mold cost?

View Answer
Industry benchmarks put a simple compression mold around $1,000–$5,000 and a complex or multi-cavity tool at $5,000–$20,000. Your figure is driven by cavity count, part size, durometer, and compound. A reputable shop quotes tooling, de-flashing, and inspection as separate line items so the total is transparent before you commit. For comparison, an LSR injection mold for the same part typically starts near $25,000, which is exactly why low-volume silicone work stays on a compression press.

Q: What tolerances and durometer range can compression molding hold?

View Answer
Dimensional tolerance follows ISO 3302-1: for a 10–16 mm fixed dimension, Class M1 allows ±0.15 mm and Class M2 allows ±0.20 mm. Precision features such as ribs and bosses are typically held to M1–M2. Solid silicone durometer ranges 20–80 Shore A with about ±5 Shore A hardness variation. Confirm a feasible class on your drawing before the tooling quote is settled.

Q: When does LSR injection molding beat compression molding?

View Answer
Above roughly 5,000 parts with thin walls or fine detail. LSR’s 10–60 second cycle amortizes its higher tooling cost through saved labor and throughput at volume, while compression’s 1–5 minute cycle makes labor the dominant cost on long production runs.

Q: Is compression-molded silicone food- and medical-grade safe?

View Answer
Yes, when flash and cure are controlled and verified, using food-grade HCR with documented compliance such as 21 CFR 177.2600 and full lot traceability. Ask for the specific compliance statement tied to your part before tooling is cut, rather than accepting a generic “food safe” label.

Q: What is the lead time and MOQ for custom molded silicone parts?

View Answer
Tooling typically runs 2–8 weeks depending on complexity, with first articles in 7–12 days. MOQ is set for low-to-medium volume rather than forcing injection-scale runs, so a few hundred to a few thousand parts is normal. Confirm the staged schedule — tooling, first-article approval, then production lots — up front.

Q: How is parting-line flash controlled?

View Answer
By weighing each slug to the cavity, then trimming on automatic, frozen/cryogenic, or manual de-flashing lines under an MES-controlled cure profile. Consistent slug weight and deliberate charge placement are what keep parting-line flash thin and repeatable across a multi-cavity tool.

About This Analysis

The tolerance, cure, and tooling figures in this guide reflect ISO 3302-1 and published patent/standard data cross-checked against our own silicone compression molding floor, 80+ vulcanizing presses and roughly 1,000 tons of annual silicone output under an ISO 9001 and IATF 16949 system. Reviewed by the Engelhardt technical team.

]]>
https://meitu-engelhardt.com/silicone-compression-molding-guide/feed/ 0
